1. Description

This component operates the Vehicles EUROCODE function in Civil NX.
Enter vehicle loads specified in EUROCODE.

The Vehicles EUROCODE function can be found in the Civil NX main menu,select
[Load] tab > [Moving Load(Type)] group > [Moving Load Code] Menu > [Vehicles] Menu

2. Grasshopper Path

[Midas] > [Moving Load] > [Vehicles EUROCODE]

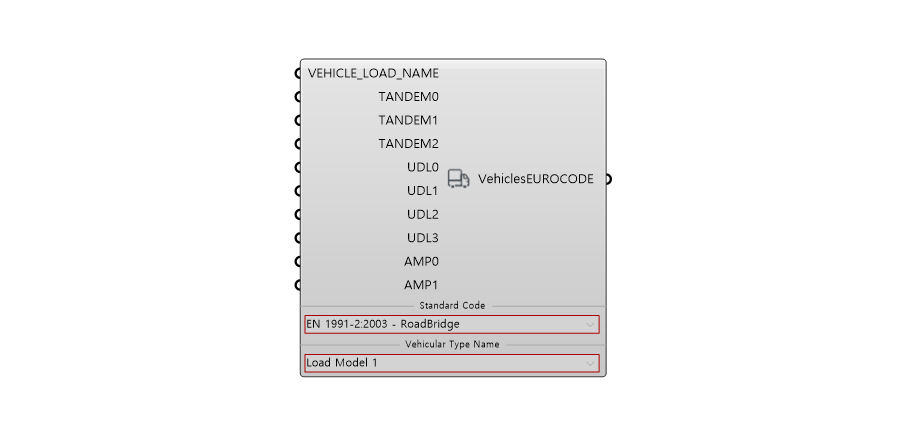

Load Model 1

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	VEHICLE_LOAD _NAME	Vehicular Load Name	String	-	-
2	TANDEM 0~2	Tandem System Adjustment Factor	Real	1.0	-
3	UDL 0~3	UDL System Adjustment Factor	Real	1.0	-
4	AMP0	Ψ Factor for Tandem System	Real	0.75	-
5	AMP1	Ψ Factor for UDL System	Real	0.4	-

Output Data

Index	Command	Description	Type	Method	Next Component
1	MVHL	Create Vehicles EUROCODE (EN 1991-2:2003-RaodBridge -Load Model 1)	Json	PUT/DELETE	-

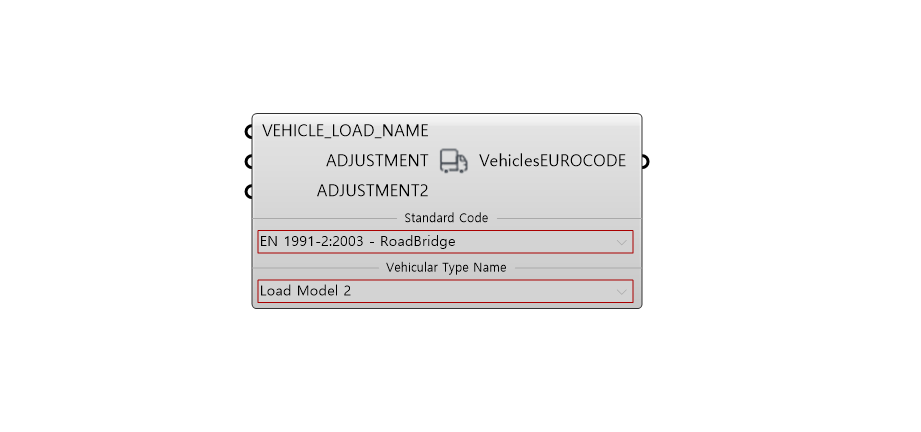

Load Model 2

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	VEHICLE_LOAD _NAME	Vehicular Load Name	String	-	-
2	ADJUSTMENT	Ψ Factor	Real	0.75	-
3	ADJUSTMENT2	Adjustment Factor	Real	1.0	-

Output Data

Index	Command	Description	Type	Method	Next Component
1	MVHL	Create Vehicles EUROCODE (EN 1991-2:2003-RaodBridge -Load Model 2)	Json	PUT/DELETE	-

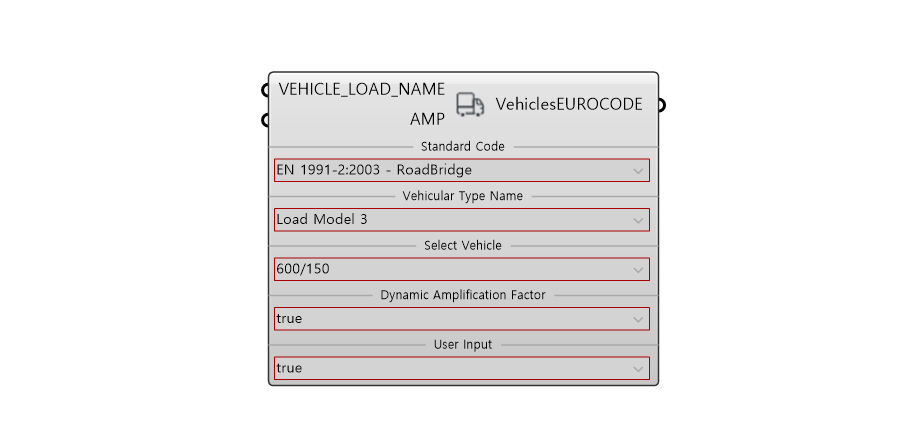

Load Model 3

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	VEHICLE_LOAD _NAME	Vehicular Load Name	String	-	-
2	AMP **	Dynamic Amplification Factor	Real	1.0	-
3	Select Vehicle	Select Vehicle	Select	600/150	-
4	Dynamic Amplification Factor	Operation Check of Dynamic Amplification Factor · true : Active · false : InActive	Select	true	-
5	User Input *	Dynamic Amplification Factor Input Type · true : User Input · false : Auto	Select	false	-

Activation Condition
* Only for if Dynamic Amplification Factor is true
** Only for if User Input is true

Output Data

Index	Command	Description	Type	Method	Next Component
1	MVHL	Create Vehicles EUROCODE (EN 1991-2:2003-RaodBridge -Load Model 3)	Json	PUT/DELETE	-

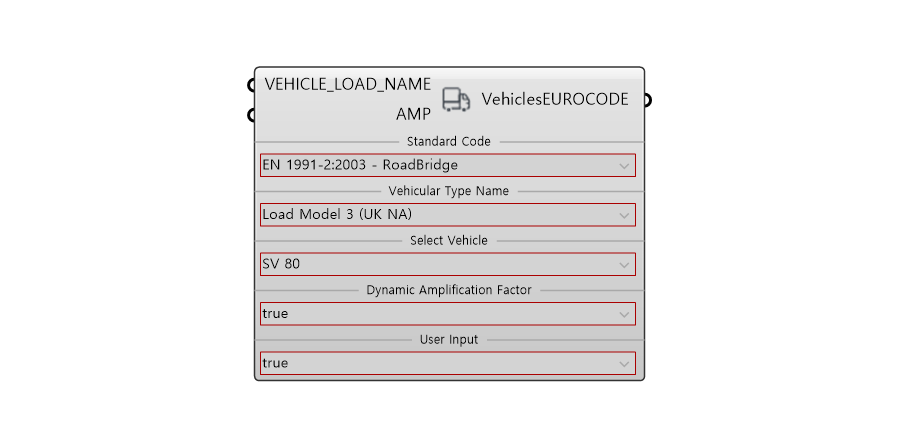

Load Model 3(UK NA)

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	VEHICLE_LOAD _NAME	Vehicular Load Name	String	-	-
2	AMP **	Dynamic Amplification Factor	Real	1.0	-
3	Select Vehicle	Select Vehicle	Select	SV 80	-
4	Dynamic Amplification Factor	Operation Check of Dynamic Amplification Factor · true : Active · false : InActive	Select	true	-
5	User Input *	Dynamic Amplification Factor Input Type · true : User Input · false : Auto	Select	false	-

Activation Condition
* Only for if Dynamic Amplification Factor is true
** Only for if User Input is true

Output Data

Index	Command	Description	Type	Method	Next Component
1	MVHL	Create Vehicles EUROCODE (EN 1991-2:2003-RaodBridge -Load Model 3(UK NA))	Json	PUT/DELETE	-

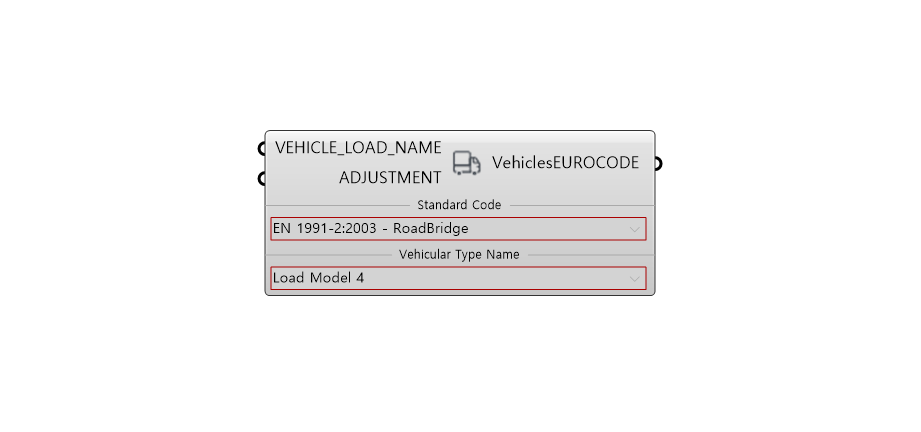

Load Model 4

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	VEHICLE_LOAD _NAME	Vehicular Load Name	String	-	-
2	ADJUSTMENT	Ψ Factor	Real	1.0	-

Output Data

Index	Command	Description	Type	Method	Next Component
1	MVHL	Create Vehicles EUROCODE (EN 1991-2:2003-RaodBridge -Load Model 4)	Json	PUT/DELETE	-

5. Reference API Manual Link

Vehicles - Eurocode
