Summary
- Define Anchorage, an accessory to the Tendon.
- The anchorage defined by the Anchorage function is set in the property information of the tendon.
How to Run
- Ribbon Menu > [Model] Tab > [Component] Group > Tendon > Anchorage
Explanation

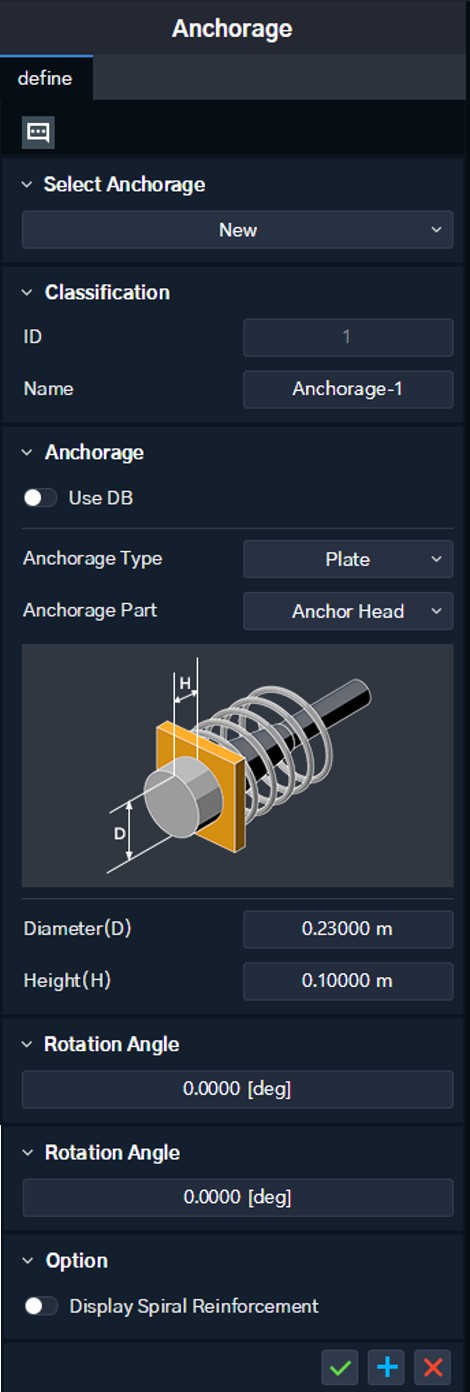

Anchorage Definition
Defines the anchorage of the tendon.
[Select Anchorage]
Define a new anchorage, or select an existing anchorage.
[Classification]
Sets the name of the anchorage.
[Anchorage]
Defines the shape of the anchorage.
Use DB : Sets whether to use Anchorage Products (DB).
On : Define anchorage geometry using DB.
Off : The user enters dimensions to define the anchorage geometry.
Anchorage Type : Select the type of anchorage. Plate / Flat / Dead End.
Anchorage Part : Select each part according to the type of anchorage. Enter dimensions for each part.
Detailed Explanation (Anchorage Shape Definition)
User DB
If User DB is used: Manufacturer → Anchorage Type → DB → Anchorage Part Settings
Manufacturer : Select the manufacturer. (Dywidag / Freyssinet / VSL)
DB : DB is provided for each Anchorage Type.
If User DB is not used: Enter Anchorage Type → Anchorage Part → Dimension Input
[Rotation Angle]
Enter the angle of rotation of the anchorage.
[Option]
Choose whether to represent the helical rebar. The spiral rebar can only be created together if it is 'Anchorage Type: Plate'.
Reference Materials
Tendon Property
