Summary
- Create a slot/split to avoid interfering with each other at the intersection of the Stiffener.
How to Run
- Ribbon Menu > [Model] Tab > [Component] Group > Stiffener > Slot-Split
Explanation

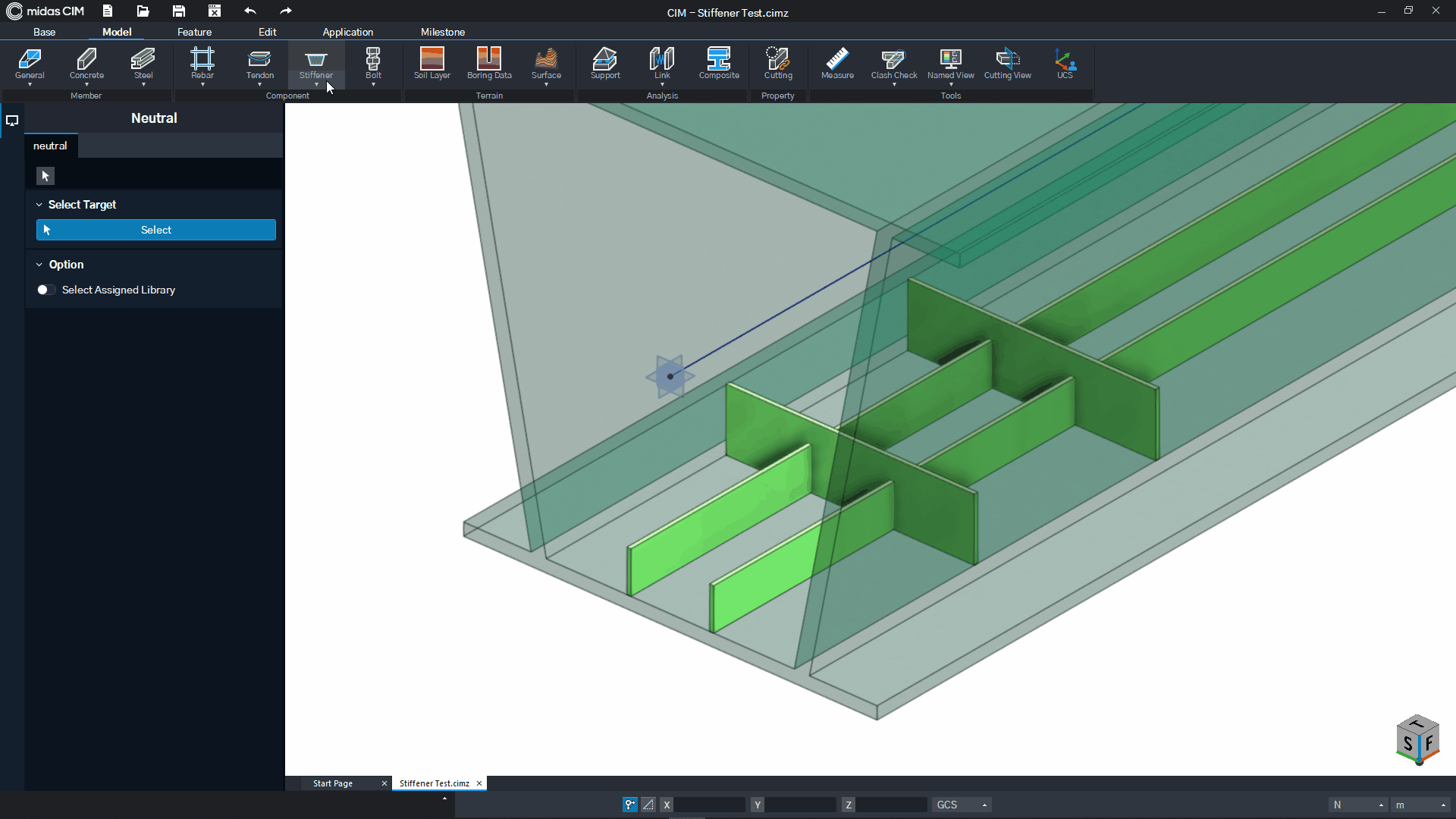

Create Slot-Split
Create a slot/split to avoid interfering with each other at the intersection of the Stiffener.
[Select Target]
Select the stiffener to be the target of the slot-split.
Section Type : The section type of the selected stiffener is output.
[Select Tool]
Select the stiffener to be the tool for the slot-split.
Section Type : The section type of the selected stiffener is output.
[Slot & Split]
Enter the shape information for the slot-split.
Type : Select the type of slot-split.
The Slot/Split created by the Slot/Split function is stored as the property information of the Target Stiffener. (Editable)
The type of Slot-Split Type that can be selected varies depending on the Target / Tool Stiffener height.
The type of Slot-Split Type that can be selected varies depending on the Target / Tool Stiffener selection.
| Target | Tool | Slot-Split Type |
|---|---|---|
| Flat | Flat | Type 1 (Flat) Type 2 (Flat) Type 3 (Flat) |
| Flat | T-Section | Type 1 (T-Section) Type 2 (T-Section) Type 3 (T-Section) |
| Flat / Angle / T-Section | Angle | Type 1 (Angle) |
| Flat / Angle / T-Section | I-Section | Type 1 (I-Section) Type 2 (I-Section) |
| Flat / Angle / T-Section | U-Section | Type 1 (U-Section) |
