Summary
- Set to respond to changes in height and thickness depending on the position of the longitudinal Stiffener (Flat Type).
How to Run

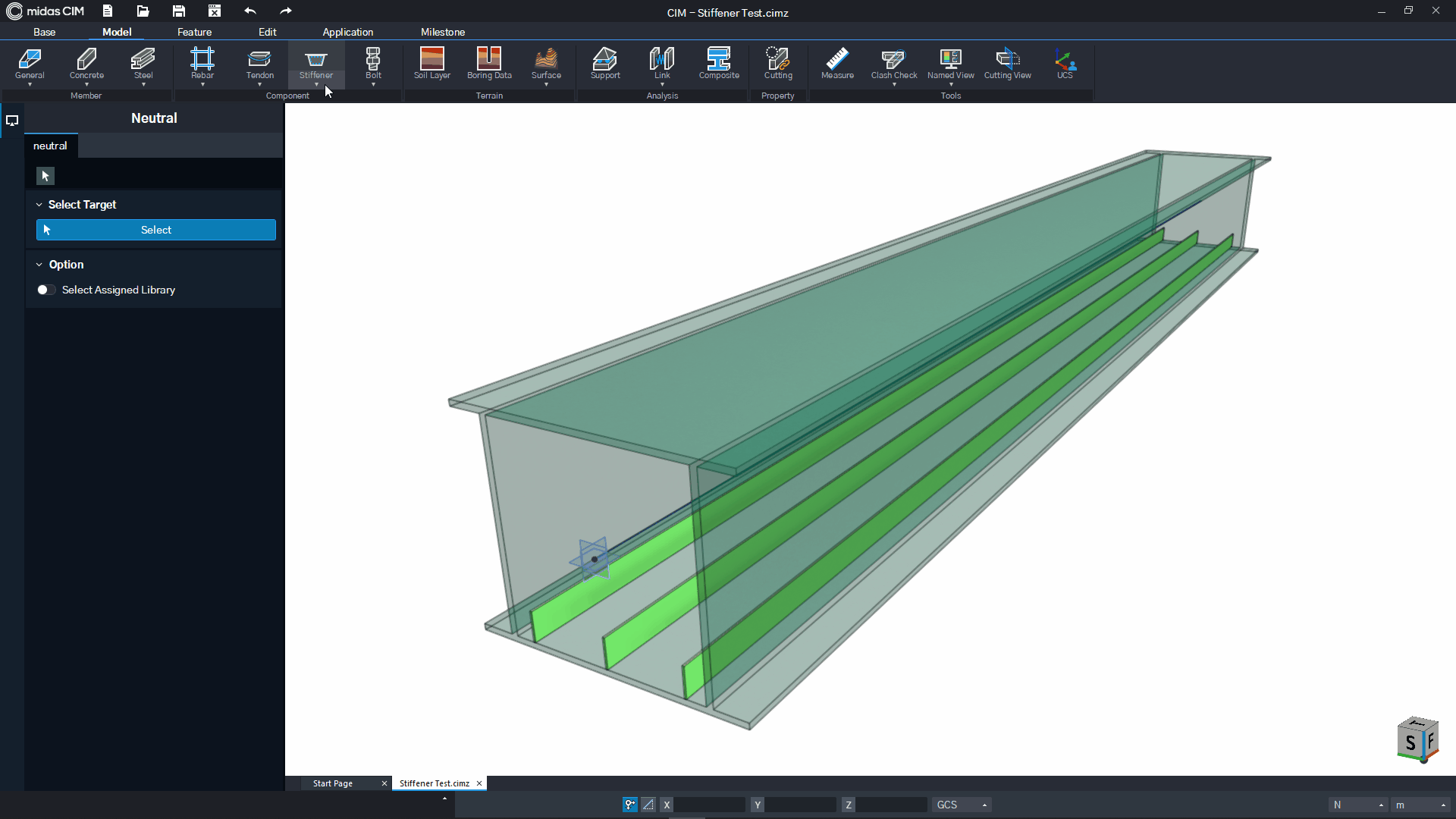

- Ribbon Menu > [Model] Tab > [Component] Group > Stiffener > Section Table
Explanation
Set up the Stiffener Group Batch
Set the change section settings to the Stiffener Group in a lump.
[Select Stiffener]
Select the longitudinal stiffener (Flat Type) for setting the Section Table.
The stiffener selection conditions for setting the section table are as follows.
Longitudinal Stiffener Group with Completed Array
Flat Type
The Section Table set by the Section Table function is stored as the property information of the Target Stiffener. (Editable)
[Tapered Section Type]
Sets how each section of change is connected.
Tapered : Create a Stiffener by connecting each section to a side section.
Compartmental : Create a Stiffener by separating each section.
[Edit Separate Stiffener]
Select whether the settings for section changes are set in batch or individual stiffener groups.
On : Apply section table of stiffener individually.
Off : Apply the section table as a group of stiffeners.
[Section Table (Batch)]
Apply the Section settings as a collection of selected stiffener groups. Set the position, height, and thickness of each section in the table.
Location Type : Select the method to specify the location of each section (Length/Ratio).
Location : Enter the location for each section from the point of view.
Height / Thickness : Enter the height and thickness of each section.
Stiffener Individual Settings
Set the change section settings to each Stiffener individually.
[Select Stiffener]
Select the longitudinal stiffener (Flat Type) for setting the Section Table.
Stiffener selection conditions for setting the section table are as follows.
Longitudinal Stiffener Group with Completed Array
Flat Type
[Tapered Section Type]
Sets how each section of change is connected.
Tapered : Create a Stiffener by connecting each section to a side section.
Compartmental : Create a Stiffener by separating each section.
[Edit Separate Stiffener]
Select whether the settings for section changes are set in batch or individual stiffener groups.
On : Apply section table of stiffener individually.
Off : Apply the section table as a group of stiffeners.
[Section Table (Separate)]
Apply the section settings for each individual stiffener in the selected stiffener group. Set the position, height, and thickness of each section in the table.
Stiffener List : Select the longitudinal stiffener to apply the section settings. Individual stiffeners can be selected within the group.
Location Type : Select the method to specify the location of each section (Length/Ratio).
Location : Enter the location for each section from the point of view.
Height / Thickness : Enter the height and thickness of each section.
