Summary

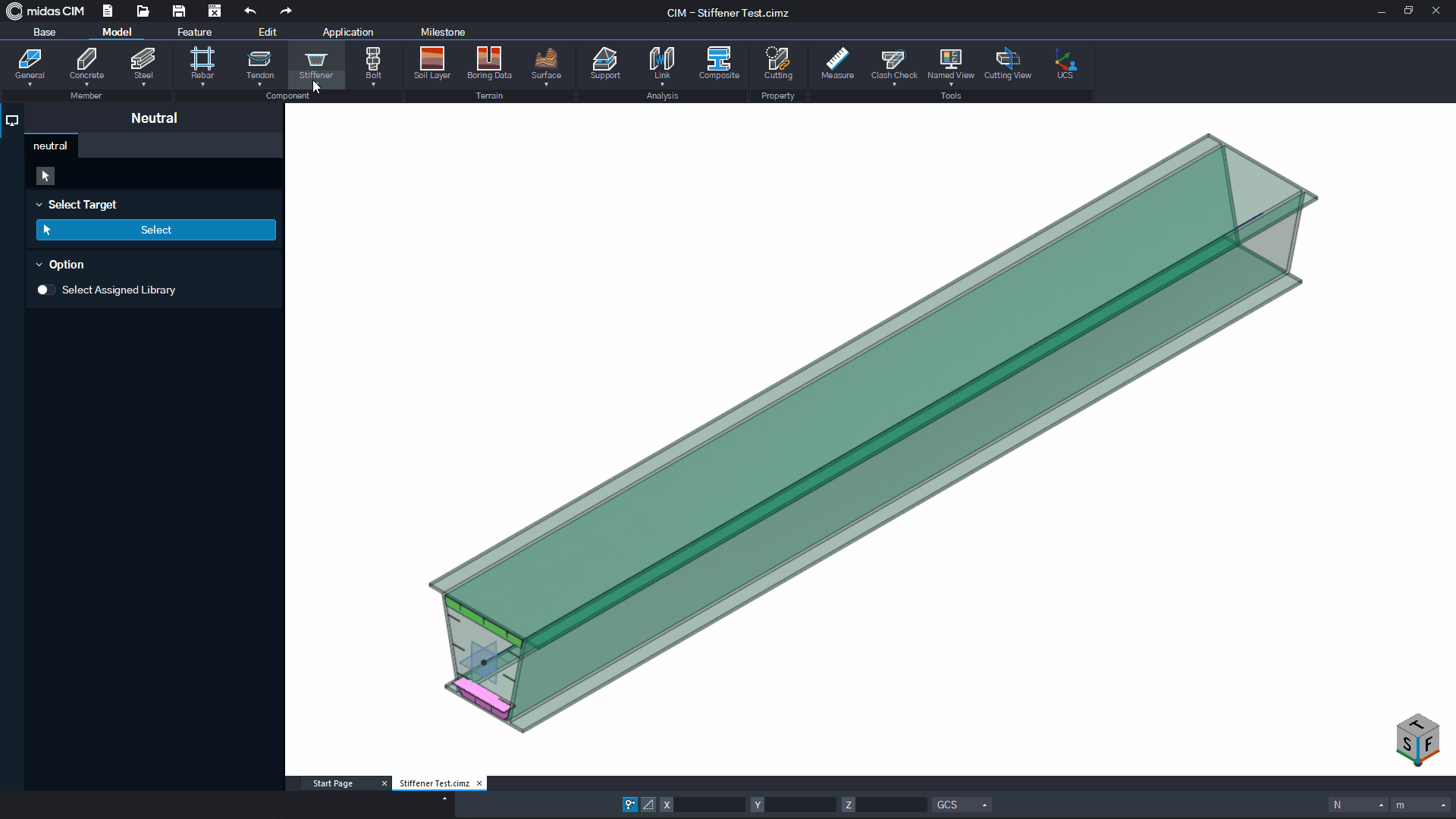

- Create a Stiffener Group by placing the Stiffener drawn from the plane in 3D.
How to Run
- Ribbon Menu > [Model] Tab > [Component] Group > Stiffener > Array
Explanation

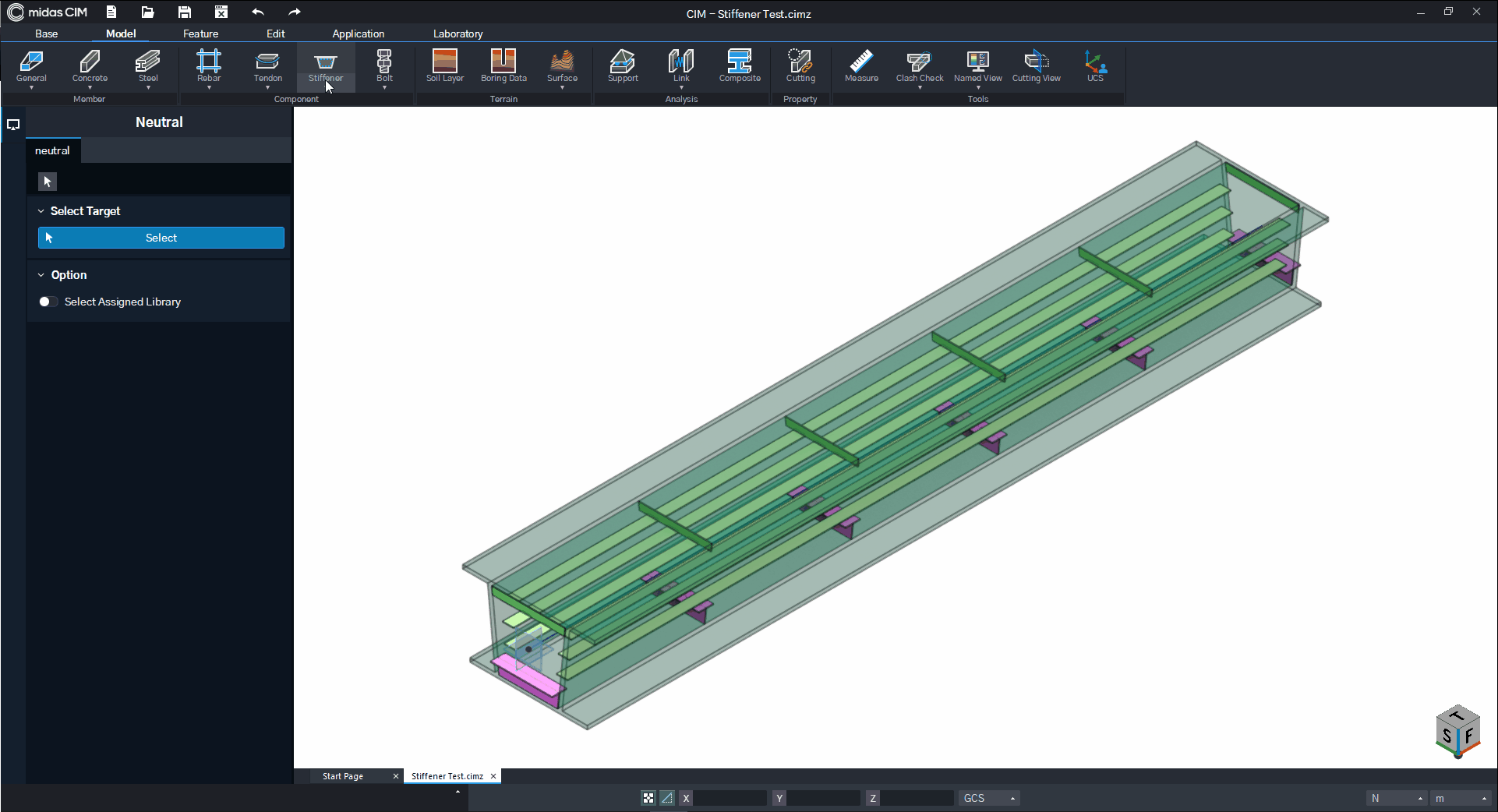

Array Along Path / Tapered Array Method
Arrange the stiffener using Array Along Path or Taped Array.
[Tab] Property
[Arrangement]
Sets the placement interval for lateral stiffener.
Note
Stiffener Property > Refer Arrangement

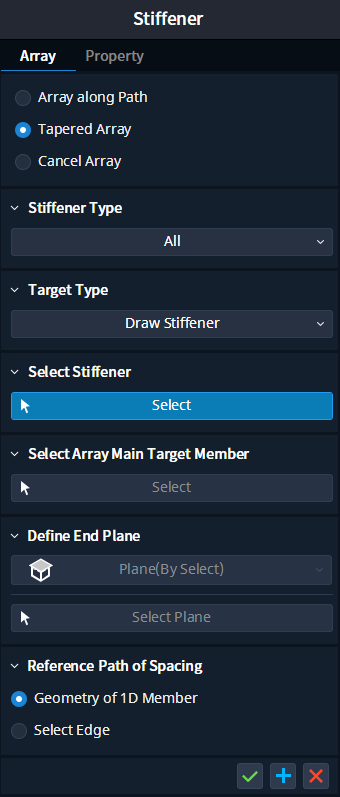

[Tab] Array
[Method]
Select how the stiffeners are arranged.
Array Along Path : Specifies the stiffener arrangement as a path. Only changes to the section above the Rebar Draw Plane are considered and longitudinal section changes are not reflected.
Tapered Array : Specifies the stiffener arrangement criteria for the shape of the object. Reflects the change in the shape of the stiffener according to the longitudinal section change of the side section.
Cancel Array : Restores the arranged stiffeners to the Draw Plane state before the arrangement.
[Stiffener Type]
Select the type of stiffener to arrange.
Transverse Stiffener : Arrange lateral stiffener.
Longitudinal Stiffener : Arrange longitudinal stiffener.
Closed Stiffener : Arrange closed stiffener.
All : Arrange all types of stiffeners.
[Target Type]
Select the status of the stiffener to be arranged.
Draw Stiffener : Arrange the stiffener in the Draw Plane state.
Array Stiffener : Select an arranged stiffener to rearrange.
All : Arrange stiffener in all states.
[Select Stiffener]
Select the stiffener to arrange.
[Select Array Main Target Member]
Select the target member on which the selected stiffener will be arranged. The Array Path of the stiffener is recreated from the center line of the Array Target Member.
[Define End Plane]
Defines the end point plane on which the stiffener will be arranged.
Note
Define Plane
[Reference Path of Spacing]
Defines the arrangement path of the stiffener.
Geometric Line of 1D Member : Specifies the center line of the target member as the array path.
Select Edge : Select a Line object and set it as the Array path.
Cancel Array Method
Restores the arranged stiffener to the state of the drawplane before the arrangement.
[Tab] Array
[Method]
Select how the stiffeners are arranged.
Select Cancel Array.
[Select Stiffener]
Select an arranged stiffener group. Multiple stiffener groups can be selected.
Note
The Cancel Array of a single stiffener group can be restored to the Drawplane state by selecting the stiffener group from the Neutral state.
