Summary
- Enter Stiffener Draw Mode to draw the Stiffener in a plane.
How to Run

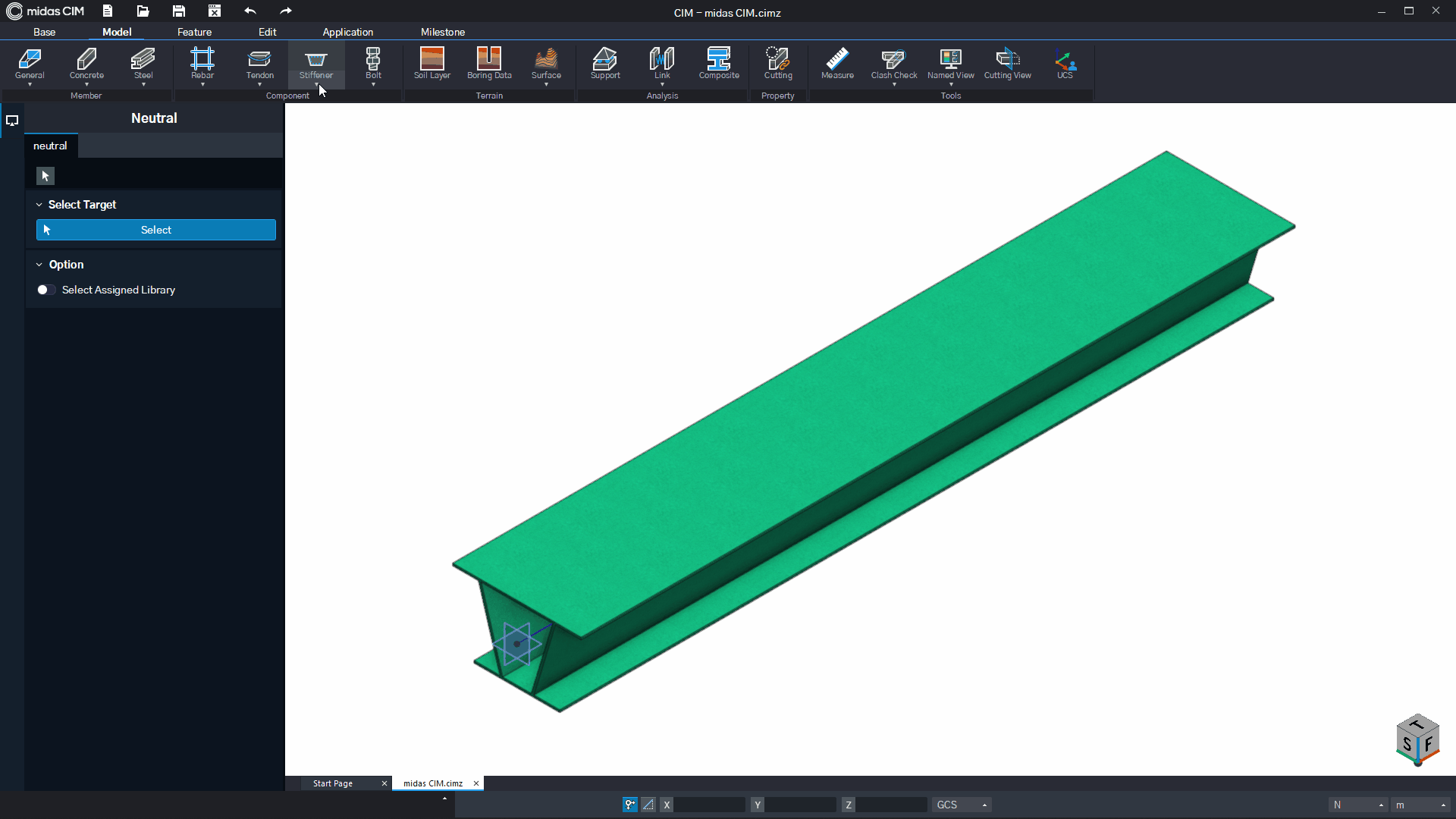

- Ribbon Menu > [Model] Tab > [Component] Group > Stiffener > Draw
Explanation
Enter Stiffener Draw Mode
Select the target member and plane to enter Stiffener Draw Mode.
[Select Target Member]
Select the object on which to place the stiffener. Unlike rebars, multiple choices are possible.
[Define Draw Plane]
Defines the reference plane on which the stiffener will be placed.
Note
Define Plane
[Target Option]
Select the type of object on which to place the stiffener.
Create from Original Object : Create a plane from the original object of the target member and enter Draw Mode, and the stiffener is created on the original object of the target member.
Create from Result Object : Create a plane for the target member's application object and enter Draw Mode. The stiffener is created for the target member's application object.
Note
Depending on the application of the Cutting Property function, the member has the original object and the result object.
[View Range]
Defines the front and rear visible ranges of the defined Draw Plane.
