Closed Stiffener

Summary

• Create a Closed Stiffener on a Draw Plane.

How to Run

[Stiffener Draw Mode]

• Ribbon Menu > [Stiffener Draw] Tab > [Stiffener] Group > Draw

Explanation

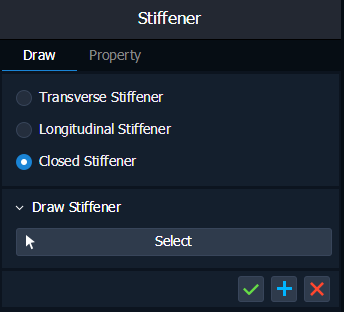

[Tab] Draw

[Stiffener Type]

Select the type of stiffener.

Transverse Stiffener : Create a transverse stiffener.

Longitudinal Stiffener : Create a longitudinal stiffener.

Closed Stiffener : Create a closed stiffener.

[Draw Stiffener]

Select the Edge(s) of the Target Member cross-section. The selected Edge(s) must be connected, and the start and end points of the connected Edge(s) will be connected by a straight line to create a Closed Stiffener.

Reference Materials

Stiffener Property
