Transverse Stiffener

Summary

• Draw (define) a Transverse Stiffener on a plane.

How to Run

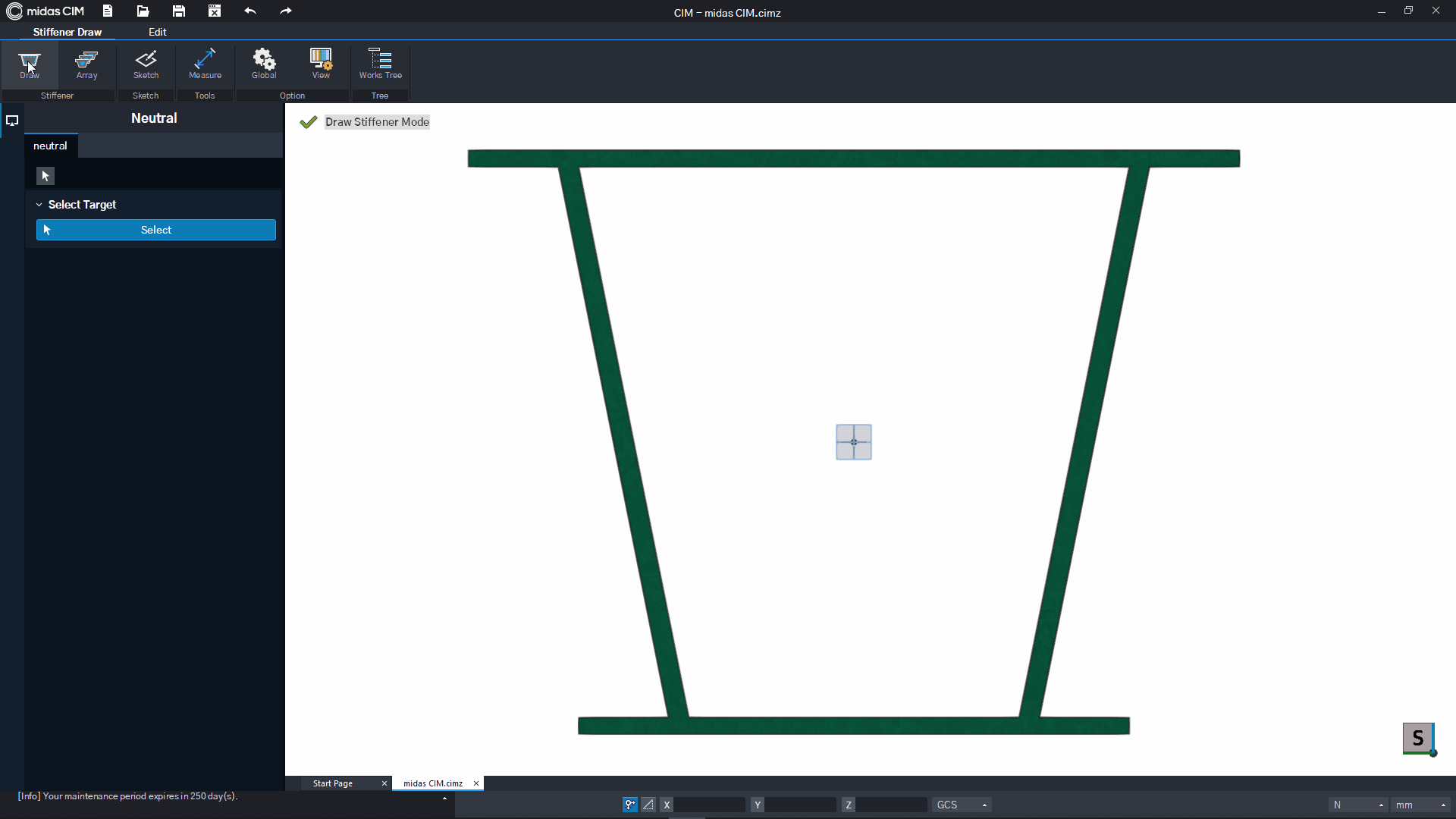

[Stiffener Draw Mode]

• Ribbon Menu > [Stiffener Draw] Tab > [Stiffener] Group > Draw

Explanation

Select Edge(s) Method

Create lateral stiffener using the Select Edge(s) method.

[Stiffener Type]

Select the type and method of stiffener to be drawn.

Select Transverse Stiffener.

Select Select Edge(s).

[Draw Stiffener]

Select the Edge of the Target Member section. If the edges are connected, create a continuous stiffener.

Reverse Direction : Apply the position of the stiffener in the opposite direction relative to the edge.

Detailed Explanation (Draw Transverse Stiffener)

Sketch On Edge Method

Create lateral stiffener using the Sketch On Edge method.

[Stiffener Type]

Select the type and method of stiffener to be drawn.

Select Transverse Stiffener.

Select Sketch On Edge.

[Draw Stiffener]

Click the two points above the Edge in the Target Member section. Pick Point 1 is the point of stiffener and Pick Point 2 is the end point.

Reverse Direction : Apply the position of the stiffener in the opposite direction relative to the edge.

Reference Materials

Stiffener Property
