Longitudinal Stiffener

Summary

• Draws (defines) the Longitude Stiffener on the Draw Plane.

How to Run

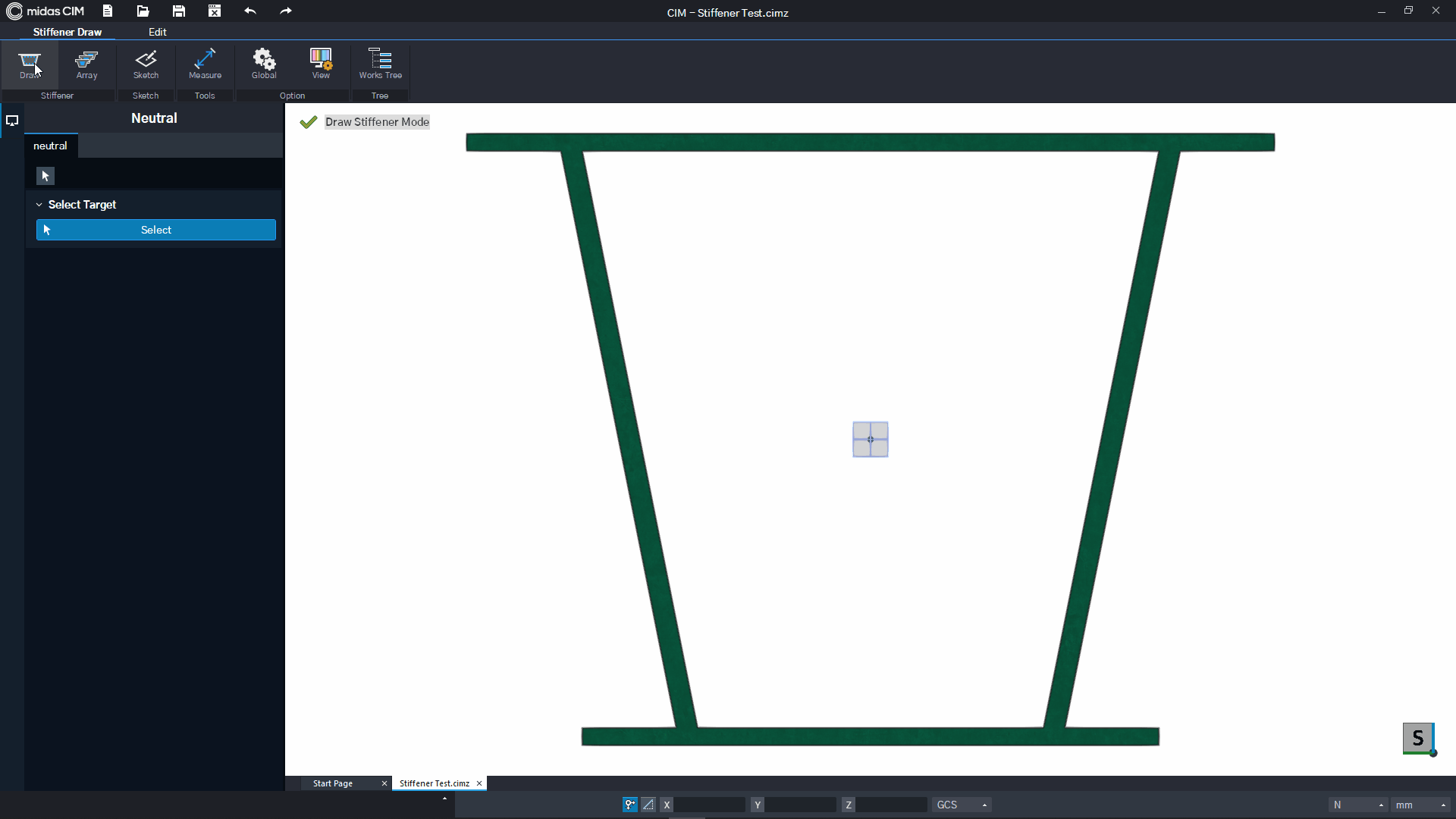

[Stiffener Draw Mode]

• Ribbon Menu > [Stiffener Draw] Tab > [Stiffener] Group > Draw

Explanation

Single Method

Create longitudinal stiffeners using the Single method.

[Stiffener Type]

Select the type and method of stiffener to be drawn.

Select Longitudinal Stiffener.

Select Single.

[Draw Stiffener]

Click the point above the Edge in the Target Member section.

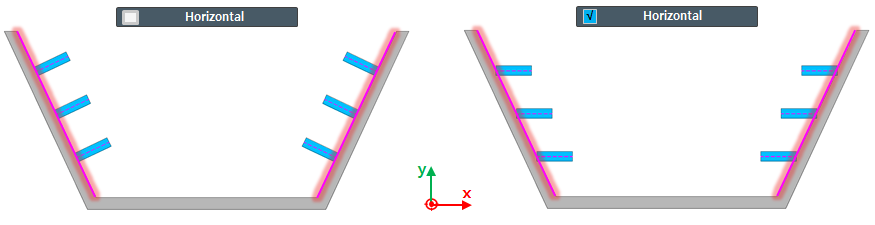

Horizontal : Create longitudinal stiffener parallel to the X-axis.

Reverse Direction : Apply the position of the stiffener in the opposite direction relative to the edge.

Select Edge Method

Create longitudinal stiffeners using the Select Edge method.

[Stiffener Type]

Select the type and method of stiffener to be drawn.

Select Longitudinal Stiffener.

Select Single.

[Draw Stiffener]

Select the Edge of the Target Member section.

Horizontal : Longitudinal stiffener generation is parallel to the X-axis.

Reverse Direction : Apply the position of the stiffener in the opposite direction relative to the edge.

Reverse Start Point : Switch the start and end points of the longitudinal stiffener profile.

2 Points Method

Create a longitudinal stiffener using the 2 points method.

[Stiffener Type]

Select the type and method of stiffener to be drawn.

Select Longitudinal Stiffener.

Select Single.

[Draw Stiffener]
Click the two points above the Edge in the Target Member section. Pick Point 1 is the point in the longitudinal stiffener profile, and Pick Point 2 is the end point.

Horizontal : Create longitudinal stiffener parallel to the X-axis.

Reverse Direction : Apply the position of the stiffener in the opposite direction relative to the edge.

Reference Materials

Stiffener Property
