Summary
- Define and edit the attributes of a Manhole.
How to Run
[Draw Diaphragm Mode]
- Ribbon Menu > [Stiffener] Group > Draw Diaphragm > ManHole
Explanation
Property

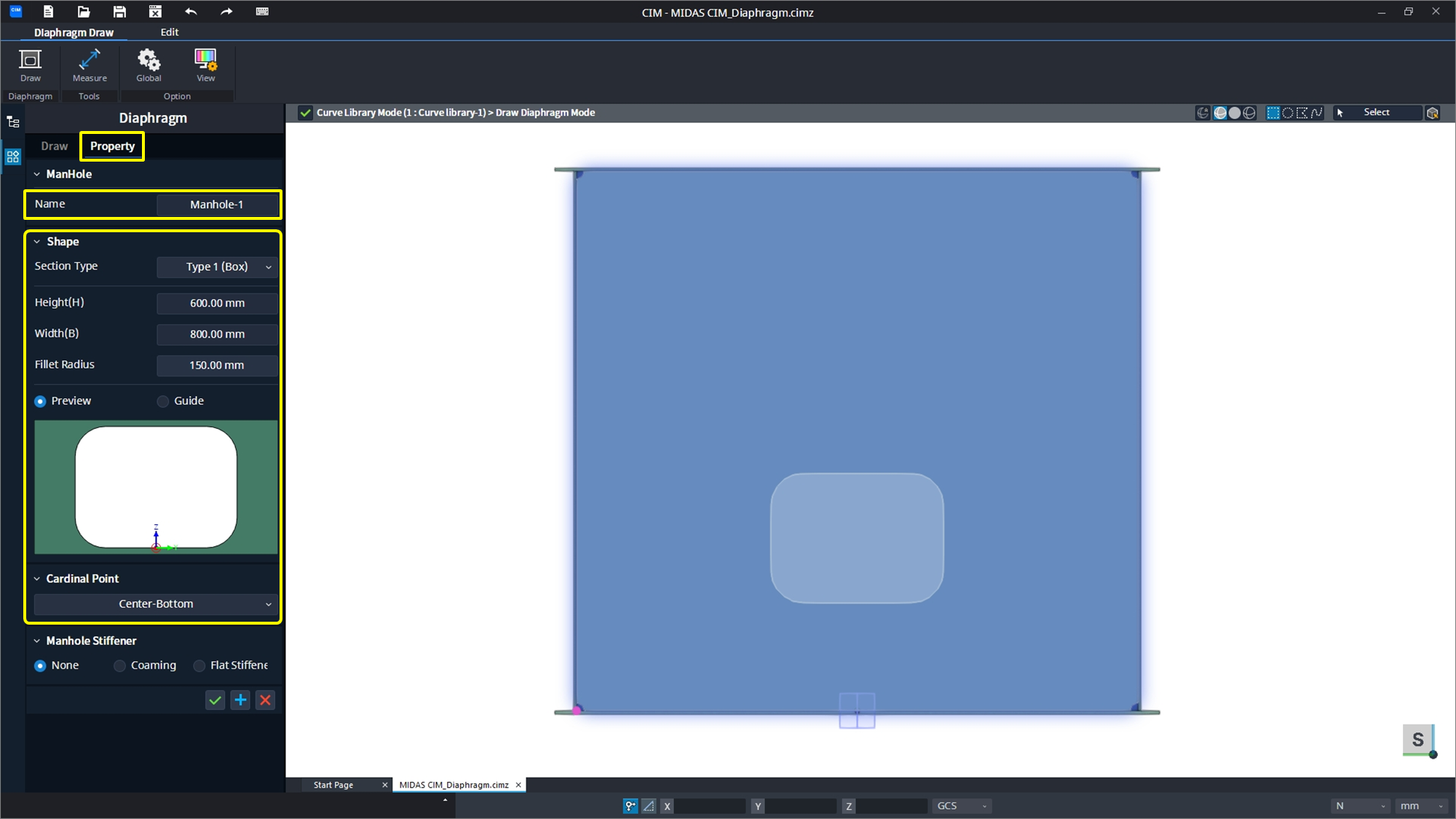

Define the properties of the manhole.
| ManHole [Property] | Explanation |
|---|---|
|
Property Tab [Name] Assign a name to the manhole.
[Shape] Section Type - Select the cross-sectional shape of the manhole. Enter the dimensions according to the selected cross-sectional shape. Type 1 (Box) : Height, Width, Fillet Radius Type 2 (Track) Horizontal : Height, Width Type 3 (Track) Vertical : Height, Width Type 4 (Half Track) Vertical: Height, Width, Fillet Radius Type 5 (Round) : Diameter

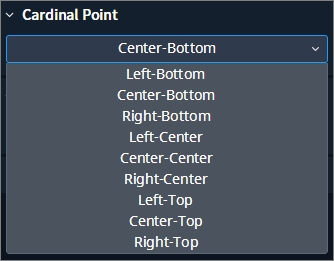

[Cardinal Point] |
|
|

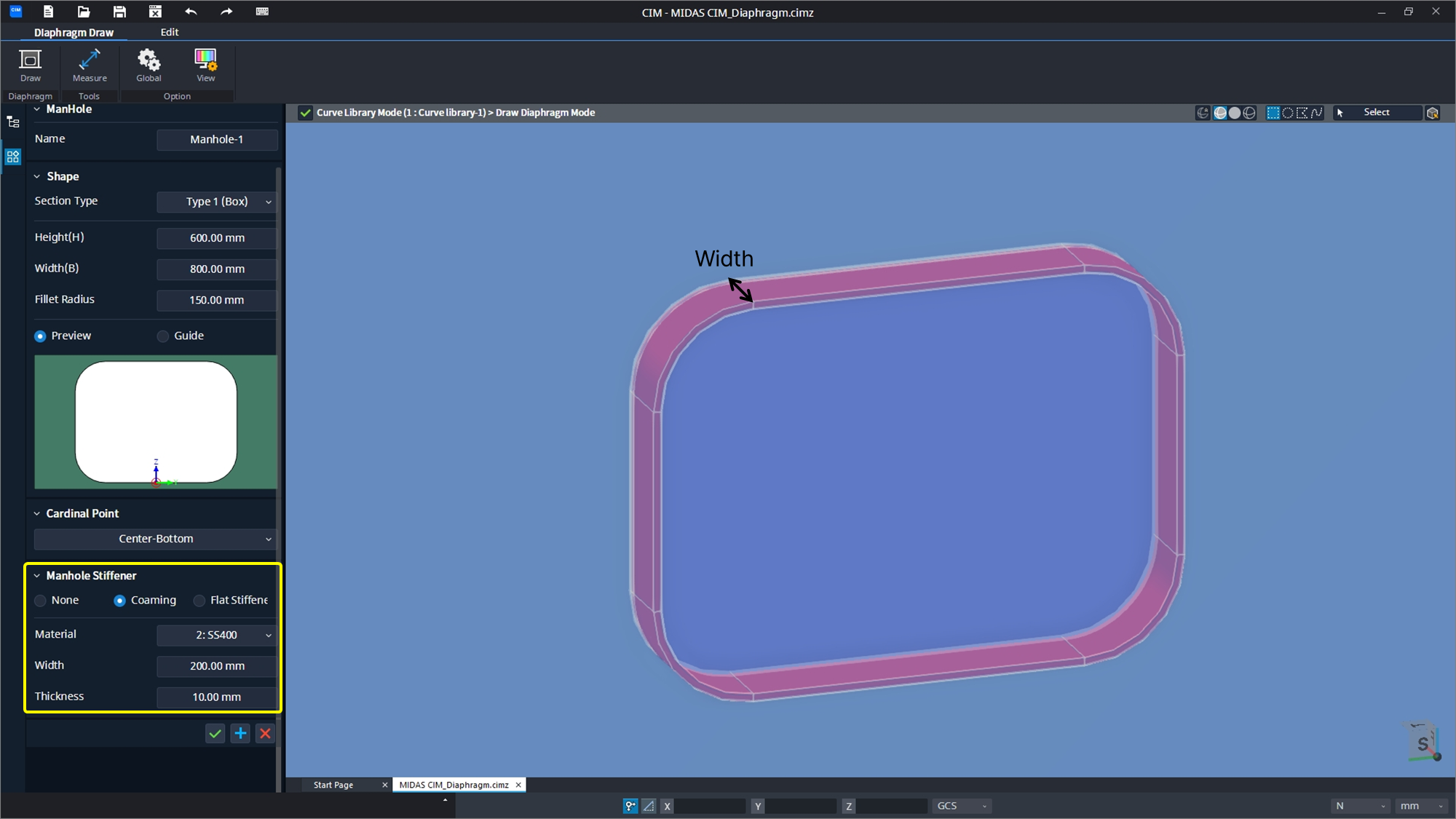

Property Tab [Manhole Stiffener] Set the detailed shape of the manhole stiffener. Coming Type Material Width : Protrusion width Thickness : Section thickness |
|
|

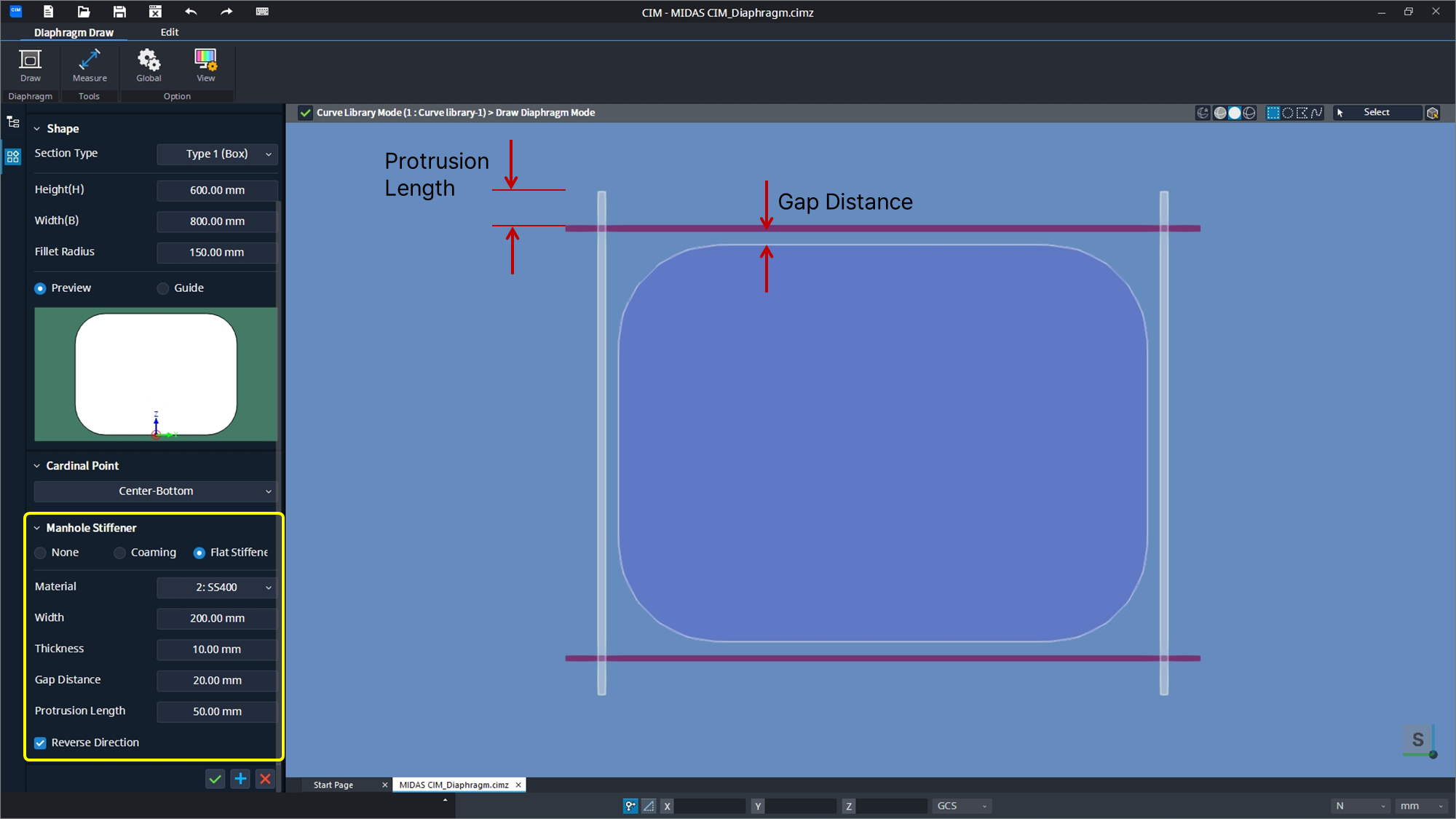

Property Tab [Manhole Stiffener] Set the detailed shape of the manhole stiffener. Flat Stiffener Type Material Width : Protrusion width Thickness : Section thickness Gap Distance : Distance between the manhole and the manhole stiffener Protrusion Length : Protrusion length of the manhole stiffener Reverse Direction Reverse the direction of the manhole stiffener surrounding the manhole. |
