Summary
- Editing the Slope Profile individually or collectively.
How to Run
[Base Mode]
- Ribbon Menu > [Model] Tab > [Terrain] Group > [Slope] Group > Modify
Explanation

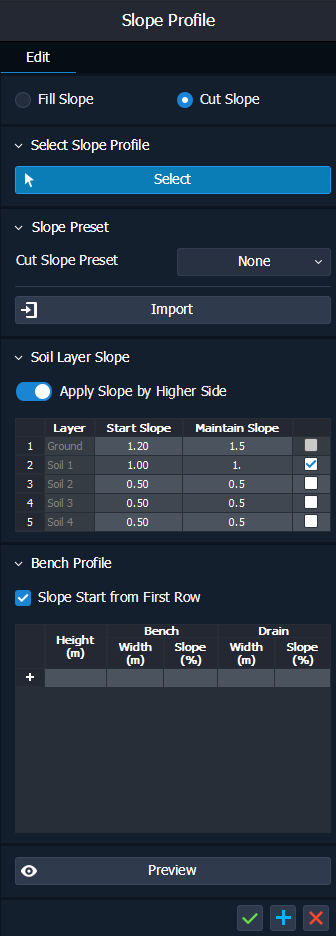

Selecting the Type of the Slope Profile.
[Select Slope Profile]
Selecting the Slope Profile.
Note
When single profile is selected, all information about the profile is displayed in a table.
When multiple profiles are selected, if the information of the Slope Profiles is not exactly the same, the information will not be displayed in the Bench Profile table.
[Slope Preset]
Importing pre-defined Slope Preset information.
Note
With the information imported through a pre-defined Preset, individual or collective modifications can be made to the selected Slope Profile.
[Preview]
Preview the slope profile to be modified.
