Summary
- Defines a layer to create the Boring Surface.
How to Run
[Model Mode]
- Ribbon Menu > [Model] Tab > Terrain > Soil Layer
Explanation

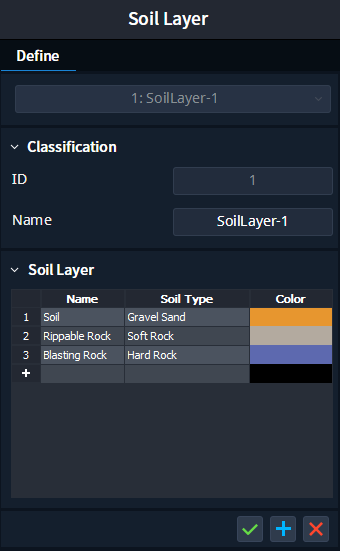

Soil Layer Define
Sets the name / type / color of the soil layer.
[Classification]
Define the name of the layer.
[Soil Layer]
Define the name and color of the boring surface.
Range : Name of the boring surface
Soil Type : Type of the boring surface
Color : Color of the boring surface
Note
Multiple layers can be created depending on the section, and these can be selected and used when creating boring surfaces.
