Boring (Define)

Summary

• Enter the boring data to create a boring surface.

How to Run

[Model Mode]

• Ribbon Menu > [Model] Tab > Terrain > Boring Data

Explanation

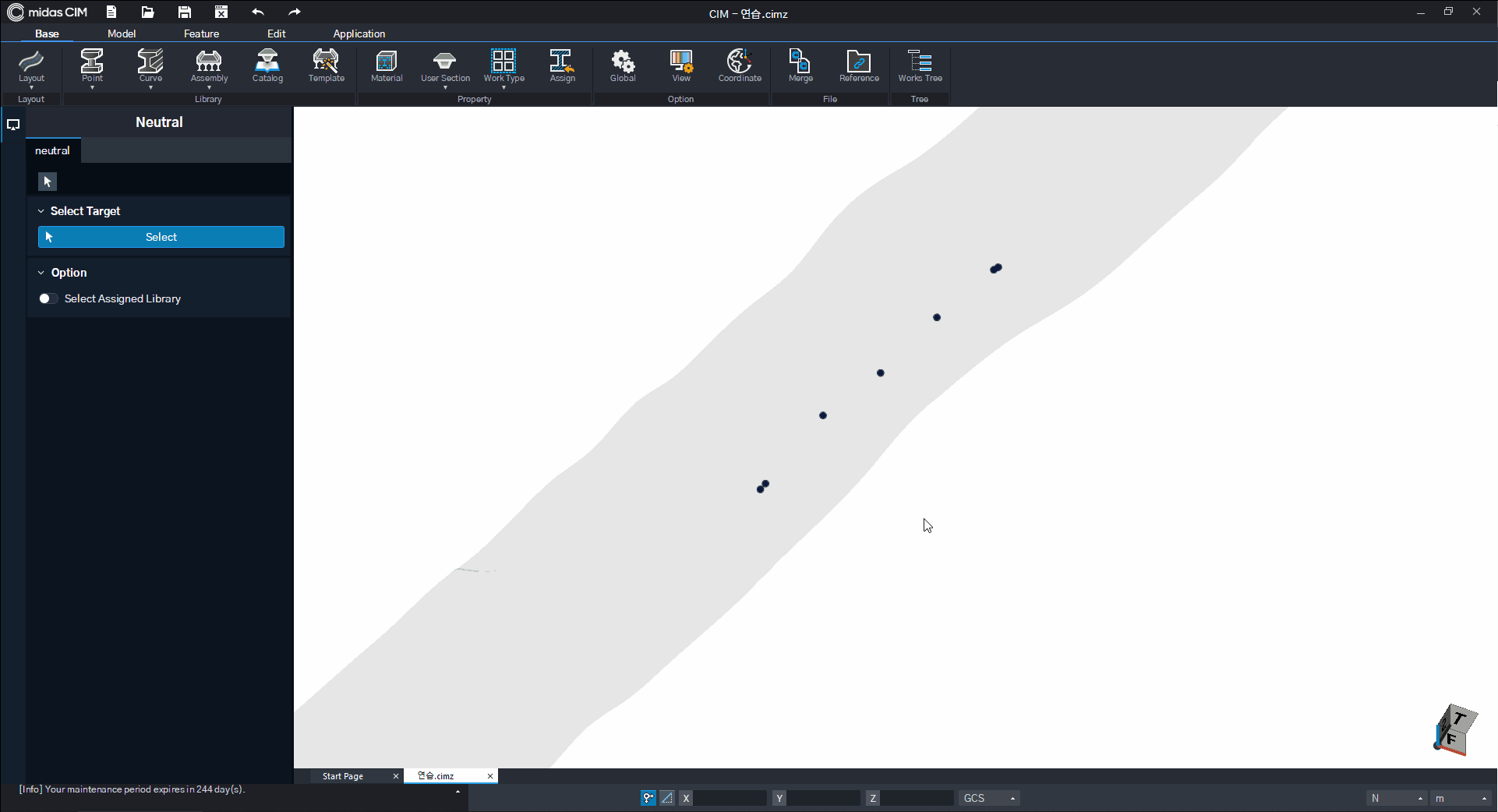

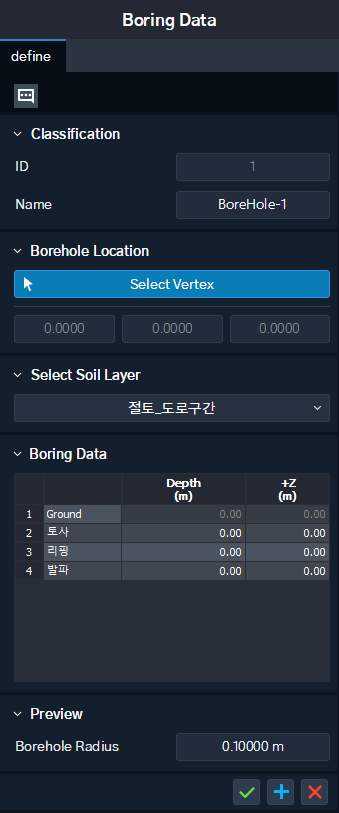

Enter Boring Data

Enter the boring data.

[Classification]

Define the name of the point.

[Borehole Location]

Select the vertex to enter the boring data.

[Select Soil Layer]

Select the layer to use in creating the boring surface.

[Boring Data]

Enter the depth necessary in creating the boring surface.

[Preview]

Enter the radius of the borehole that can be seen in the preview.

Note
Select Soil Layer is enabled when the soil layer is defined.

Note
The vertex that is used when defininig the borehole location must be created first using Vertex는 “Feature > Sketch > Point” or “Feature > Points”.
Reference - Sketch
Reference - Points
