Summary
- Create a surface by utilizing a numerical topography map or by obtaining data from the Cloud.
How to Run
[Model Mode]
- Ribbon Menu > [Model] Tab > [Terrain] Group > [Surface] Group > Ground
Explanation

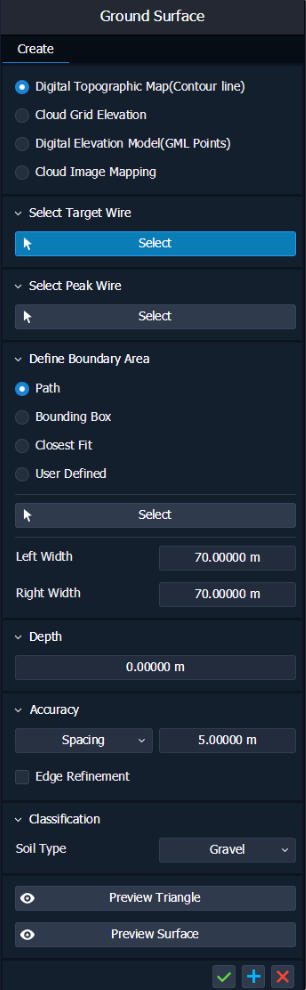

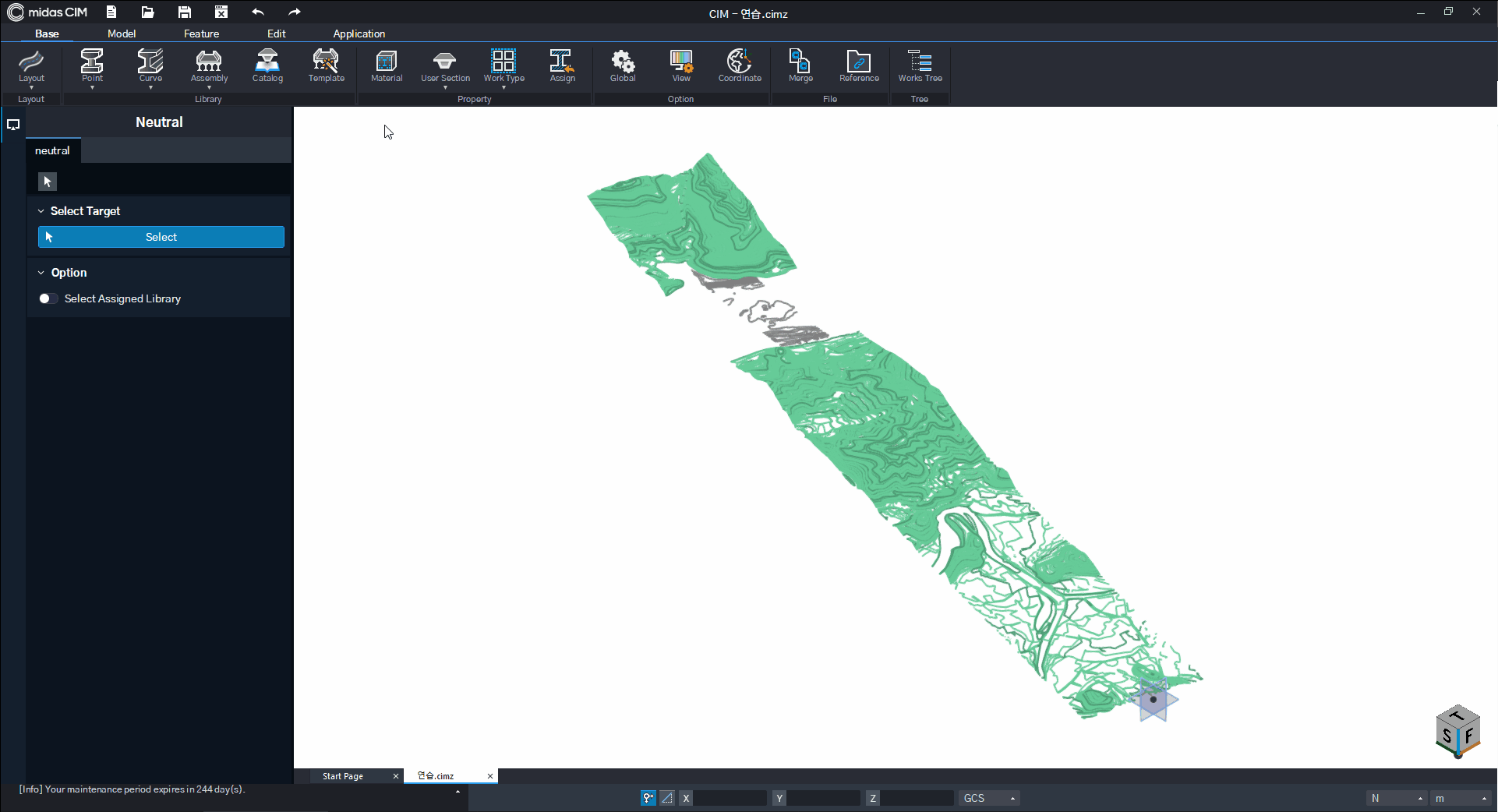

Digital Topographic Map(Contour Line) Method
Create the ground surface using contours.
[Select Target Wire]
Create the ground surface by identifying the selected feature as a contour.
[Select Peak Wire]
Set the highest elevation when creating the ground surface. Any wire higher than the selected wire is ignored.
[Define Boundary Area]
Defines the boundary type of the ground surface.
Path : Defines the boundary area offset to the left and right of the selected path.
Bounding Box : Forms a rectangular box that contains the outermost points.
Closest Fit : Connects the innermost points to create the boundary.
User Defined : Define boundary area based on the user-selected outline.

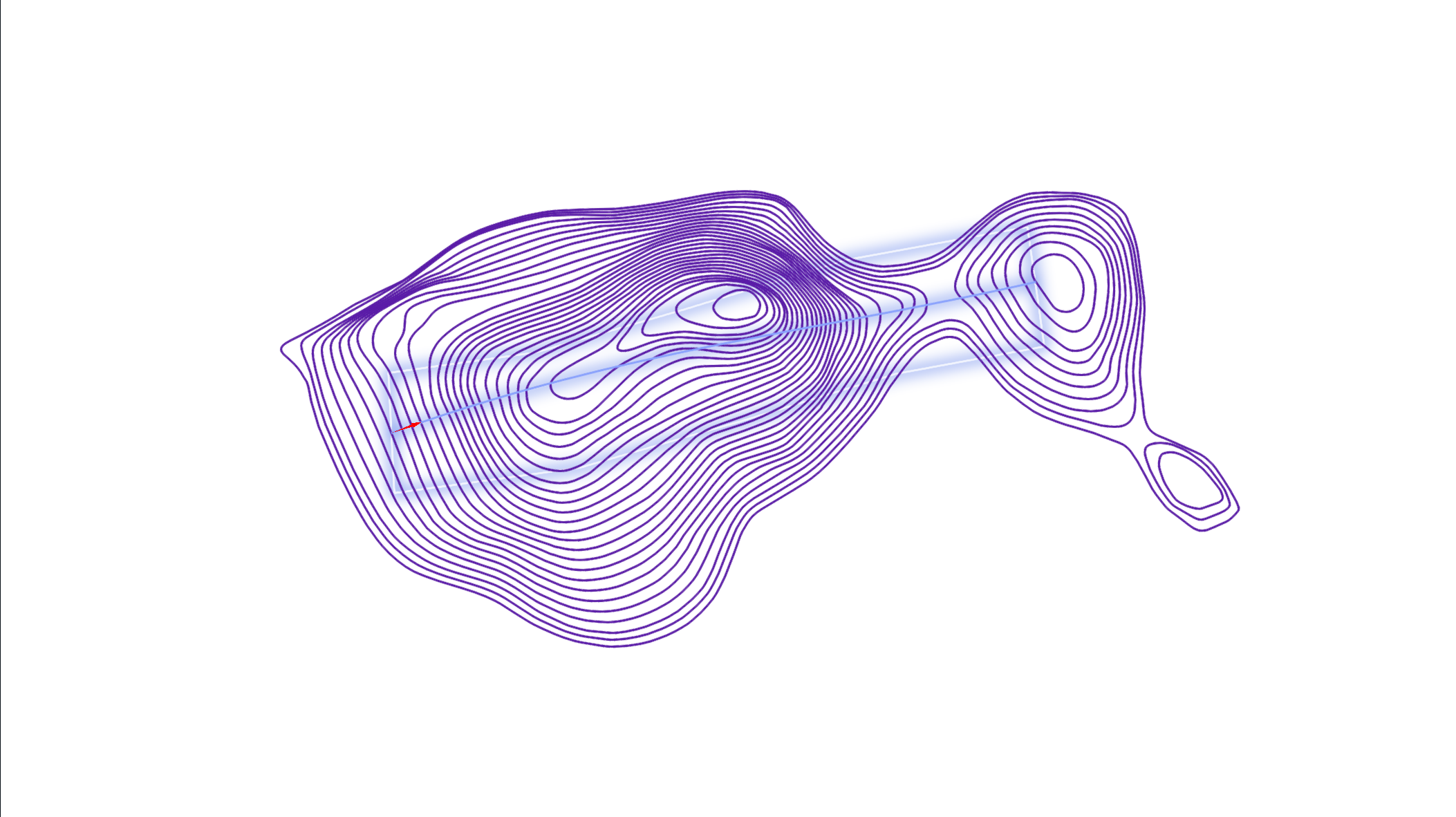

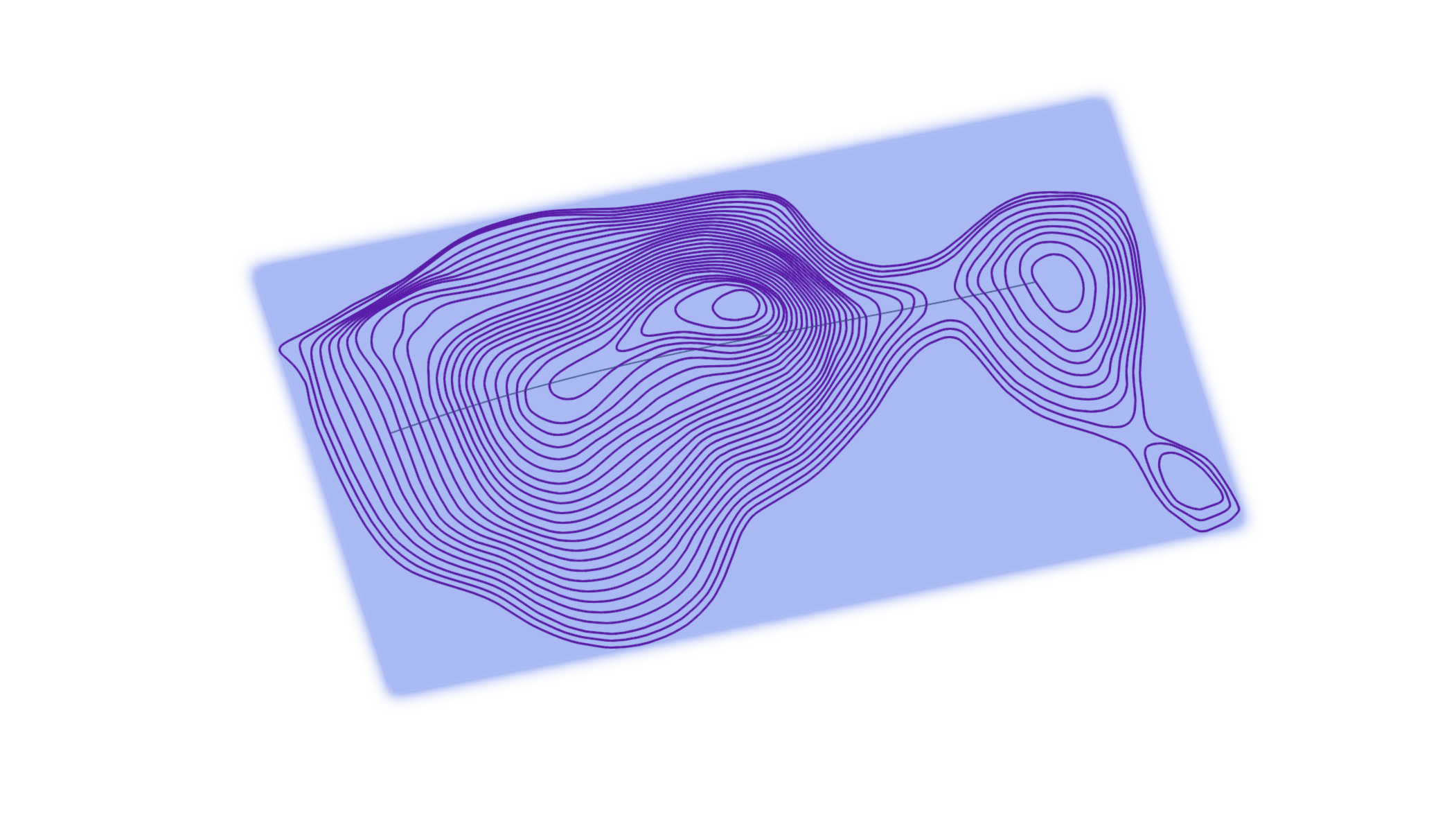

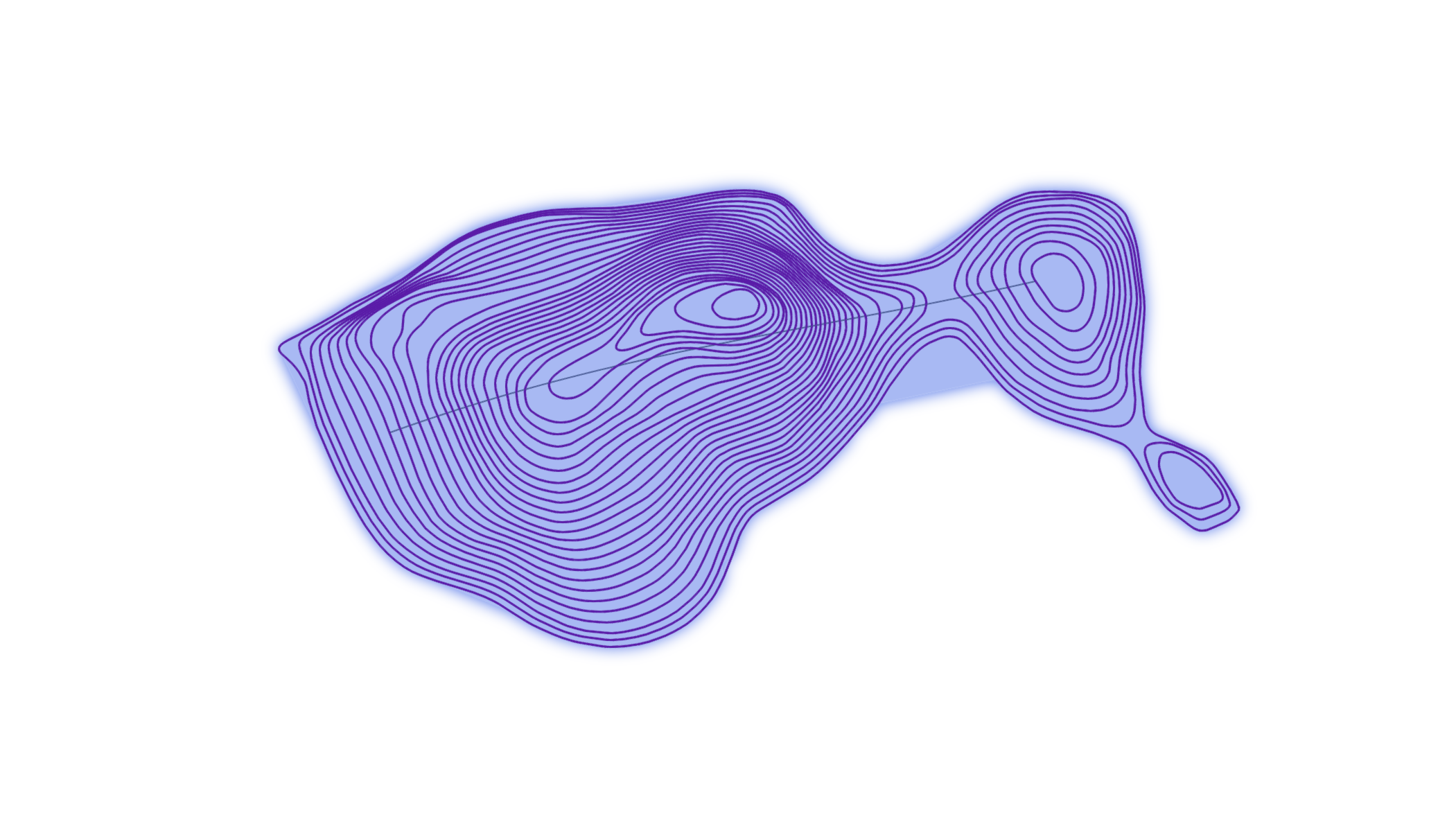

| Path | Bounding Box | Closest Fit |
|---|---|---|
[Depth]
Set the thickness of the ground surface.
Note
When the depth is entered, the ground surface is created as a solid.
[Accuracy]
Sets the resolution of the ground surface.
Auto : Set the resolution automatically based on the selected contour interval.
Spacing : Set the resolution by dividing the boundary area into spacing.
Division : Set the resolution by dividing the boundary area into division.
If a larger value is entered, the generated result will be more precise.
[Classification]
Sets the soil type of the ground surface.
[Preview Triangle]
Preview the triangular mesh of the ground surface.
[Preview Surface]
Preview the ground surface to be created.

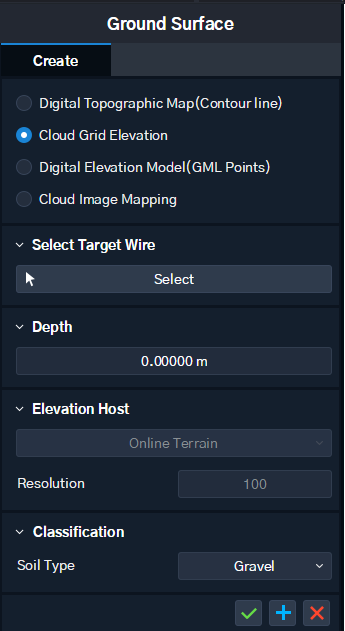

Cloud Grid Elevation Method
Create the ground surface using data from the Cloud.
[Select Target Wire]
Create the ground surface by identifying the selected feature as a boundary.
[Depth]
Set the thickness of the ground surface.
Note
When the depth is entered, the ground surface is created as a solid.
[Classification]
Sets the soil type of the ground surface.

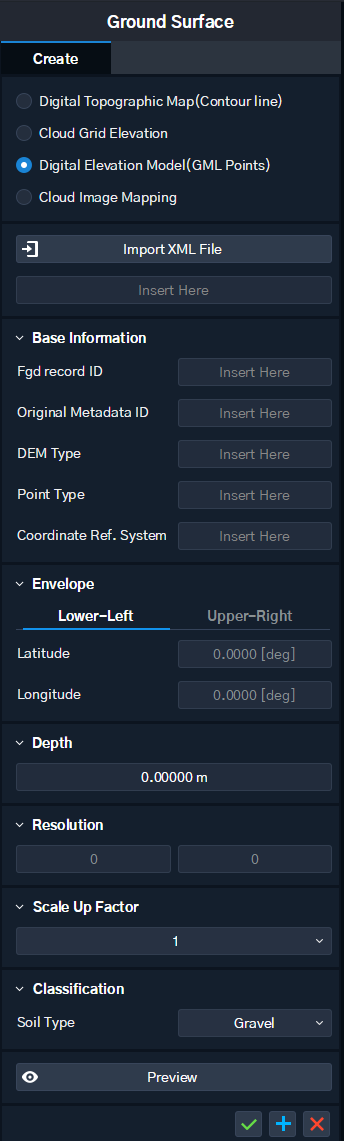

Digital Elevation Model(GML Points) Method
Import XML files to create a Ground Surface.
[Import XML File]
Import an XML file.
[Depth]
Set the thickness of the ground surface.
Note
When the depth is entered, the ground surface is created as a solid.
[Scale Up Factor]
Adjust the resolution.
Note
Selecting a large value will generate a high-resolution output.
[Classification]
Sets the soil type of the ground surface.
[Preview]
Preview the ground surface to be created.

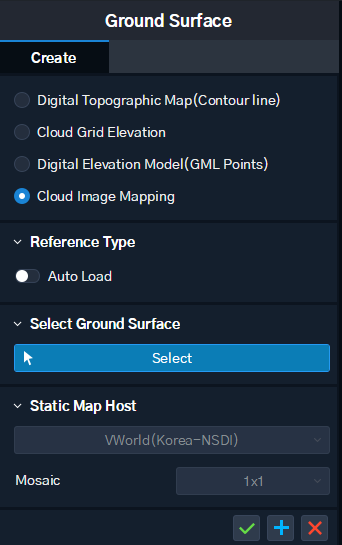

Cloud Image Mapping Method
Mapping a cloud image onto the ground surface.
[Reference Type]
Auto Load On : The mapped image is automatically applied when the file is opened.
Auto Load Off : The mapped image is not automatically applied when the file is opened. Image mapping can be applied through the Reference File function.
[Select Ground Surface]
Select the ground surface.
