Create

Summary

• Creating cut and fill slopes through a Slope Preset.

How to Run

[Base Mode]

• Ribbon Menu > [Model] Tab > [Terrain] Group > [Slope] Group > Create

Explanation

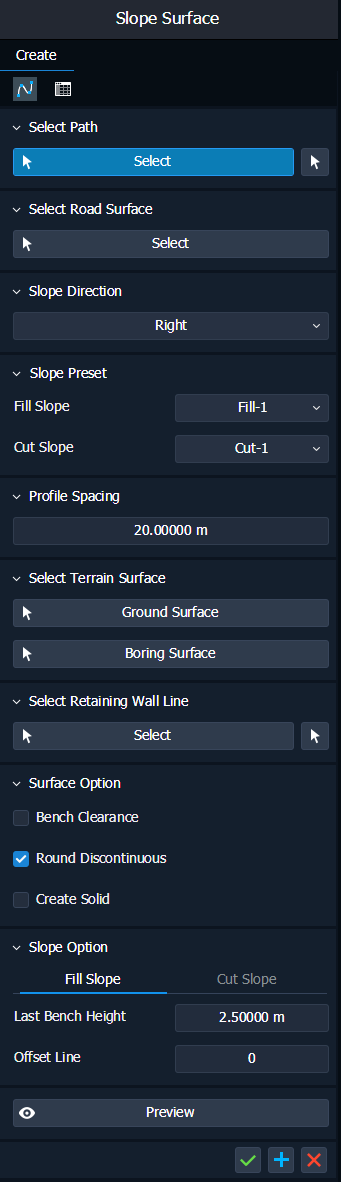

[Select Path]

Select the path to create the slope.

Note
Path is selected as a feature, and discontinuous/closed features can also be selected.

[Select Road Surface]

Select the road surface to create the slope solid.

[Slope Direction]

Sets the direction to create the slope.

[Slope Preset]

Selecte the pre-defined slope preset.

[Profile Spacing]

Sets the spacing of the profile.

[Select Terrain Surface]

Ground Surface : Select the ground surface.

Boring Surface : Select the boring surface.

[Select Retaining Wall Line]

Select the feature to create the retaining wall.

Note
No slope is created from the selected line to the Ground Surface.

[Surface Option]

Bench Clearance : Creating the slope in a tidy form at the end of the berm.

Round Discontinuous : Creating the slope of a discontinuous area in a round shape.

Create Solid : Creating the slope solid.

[Surface Option]

Rounding : Rounding the end of the cut slope.

Last Bench Height : Entering the height of the last bench.

If the height of the last bench is less than the input value, the bench will not be created.

Offet Line : Offsetting the planned line of the slope by the entered value to create a reference line.

[Preview]

Preview the slope to be created.

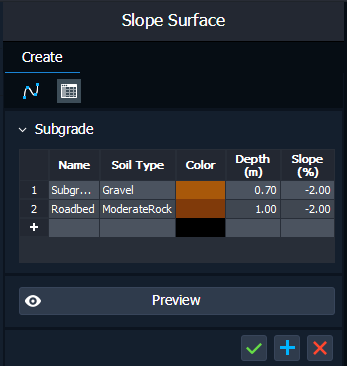

[Subgrade]

Creating the subgrade layer on the fill slope.

Note
This is only applicable when creating a Slope Solid.

[Preview]

Preview the slope to be created.
