1. Description
This component operates the Vehicles EUROCODE function in Civil NX.
Enter vehicle loads specified in EUROCODE.
The Vehicles EUROCODE function can be found in the Civil NX main menu,select
[Load] tab > [Moving Load(Type)] group > [Moving Load Code] Menu > [Vehicles] Menu
2. Grasshopper Path
[Midas] > [Moving Load] > [Vehicles EUROCODE]
Fatugue Load Model 1

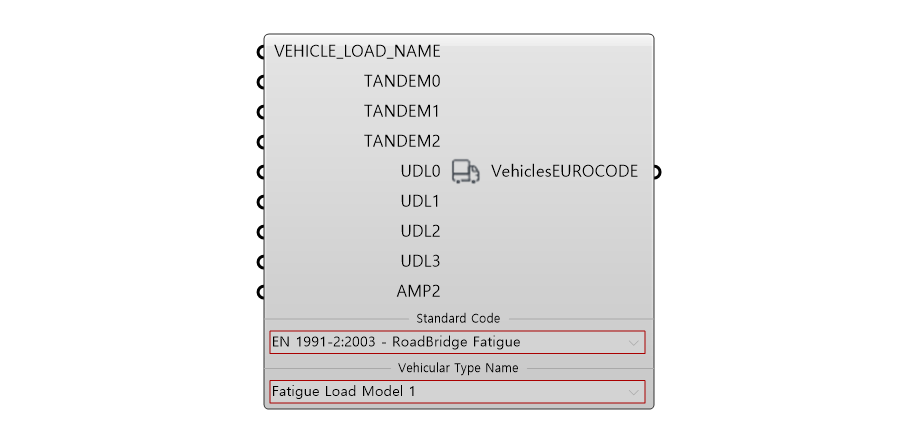

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | VEHICLE_LOAD _NAME |
Vehicular Load Name | String | - | - |
| 2 | TANDEM 0~2 |
Tandem System Adjustment Factor | Real | 1.0 | - |
| 3 | UDL 0~3 |
UDL System Adjustment Factor | Real | 1.0 | - |
| 4 | AMP2 | Dynamic Amplification Factor | Real | 1.0 | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVHL | Create Vehicles EUROCODE (EN 1991-2:2003-RaodBridge Fatigue -Load Model 1) | Json | PUT/DELETE | - |
Fatugue Load Model 2

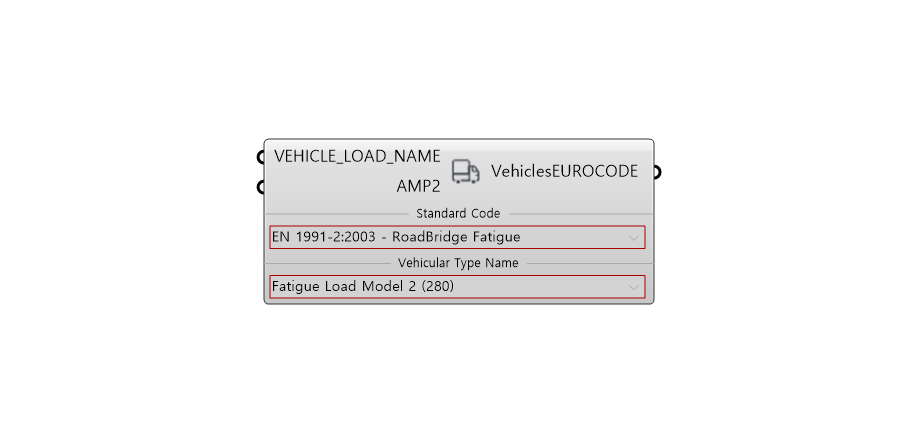

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | VEHICLE_LOAD _NAME |
Vehicular Load Name | String | - | - |
| 2 | AMP2 | Dynamic Amplification Factor | Real | 1.0 | - |
| 3 | Vehicular Type Name |
Vehicular Type Name · 280 |
Select | Fatigue Load Model 2 (280) |
- |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVHL | Create Vehicles EUROCODE (EN 1991-2:2003-RaodBridge Fatigue -Load Model 2) | Json | PUT/DELETE | - |
Fatugue Load Model 3

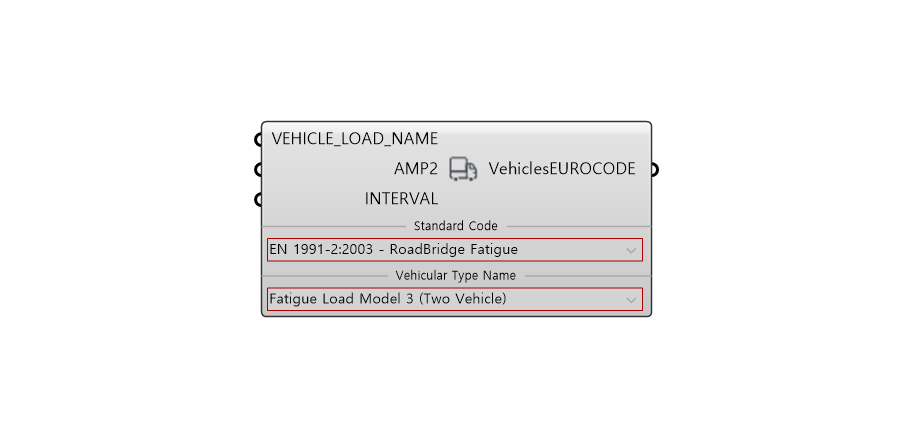

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | VEHICLE_LOAD _NAME |
Vehicular Load Name | String | - | - |
| 2 | AMP2 | Dynamic Amplification Factor | Real | 1.0 | - |
| 3 | Vehicular Type Name |
Vehicular Type Name · One Vehicle |
Select | Fatigue Load Model 3 (One Vehicle) |
- |
| 4 | INTERVAL * |
Two Vehicle Interval |
Real | - | - |
Activation Condition
* Only for if Vehicular Type Name is Two Vehicle
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVHL | Create Vehicles EUROCODE (EN 1991-2:2003-RaodBridge Fatigue -Load Model 3) | Json | PUT/DELETE | - |
Fatugue Load Model 4
3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | VEHICLE_LOAD _NAME |
Vehicular Load Name | String | - | - |
| 2 | AMP2 | Dynamic Amplification Factor | Real | 1.0 | - |
| 3 | Vehicular Type Name |
Vehicular Type Name · 200 |
Select | Fatigue Load Model 4 (200) | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVHL | Create Vehicles EUROCODE (EN 1991-2:2003-RaodBridge Fatigue -Load Model 4) | Json | PUT/DELETE | - |
5. Reference API Manual Link
