1. Description

This component operates the Vehicles EUROCODE function in Civil NX.
Enter vehicle loads specified in EUROCODE.

The Vehicles EUROCODE function can be found in the Civil NX main menu,select
[Load] tab > [Moving Load(Type)] group > [Moving Load Code] Menu > [Vehicles] Menu

2. Grasshopper Path

[Midas] > [Moving Load] > [Vehicles EUROCODE]

Load Model 71

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	VEHICLE_LOAD _NAME	Vehicular Load Name	String	-	-
2	V_LOAD _FACTOR	Eccentricity of Lateral Displacement of Vertival Loads Factor	Real	1.0	-
3	DIST_RAIL _SUPPORT	Distance between Rail Support Points	Real	0.75	-
4	ECCEN_VERT _LOAD_VALUE	Eccentricity of Lateral Displacement of Vertical Loads	Real	0	-
5	Consider Longitudinal Distribution of Point Loads	Consider Longitudinal Distribution of Point Loads	Select	false	-
6	Eccentricity of Lateral Displacement of Vertical Loads	Eccentricity of Lateral Displacement of Vertical Loads	Select	false	-

Output Data

Index	Command	Description	Type	Method	Next Component
1	MVHL	Create Vehicles EUROCODE (EN 1991-2:2003-Rail Traffic Load - Load Model 71)	Json	PUT/DELETE	-

Load Model SW/0

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	VEHICLE_LOAD _NAME	Vehicular Load Name	String	-	-
2	V_LOAD _FACTOR	Eccentricity of Lateral Displacement of Vertival Loads Factor	Real	1.0	-
3	DIST_RAIL _SUPPORT	Distance between Rail Support Points	Real	0.75	-
4	ECCEN_VERT _LOAD_VALUE	Eccentricity of Lateral Displacement of Vertical Loads	Real	0	-
5	Consider Longitudinal Distribution of Point Loads	Consider Longitudinal Distribution of Point Loads	Select	false	-
6	Eccentricity of Lateral Displacement of Vertical Loads	Eccentricity of Lateral Displacement of Vertical Loads	Select	false	-

Output Data

Index	Command	Description	Type	Method	Next Component
1	MVHL	Create Vehicles EUROCODE (EN 1991-2:2003-Rail Traffic Load - Load Model SW/0)	Json	PUT/DELETE	-

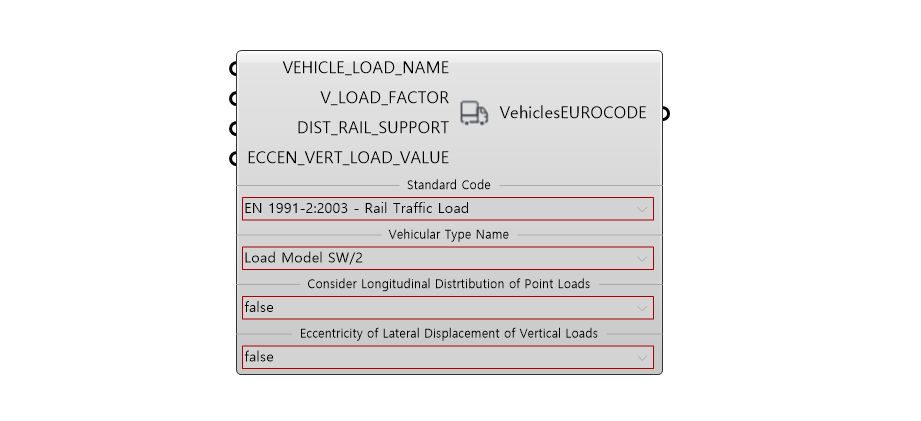

Load Model SW/2

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	VEHICLE_LOAD _NAME	Vehicular Load Name	String	-	-
2	V_LOAD _FACTOR	Eccentricity of Lateral Displacement of Vertival Loads Factor	Real	1.0	-
3	DIST_RAIL _SUPPORT	Distance between Rail Support Points	Real	0.75	-
4	ECCEN_VERT _LOAD_VALUE	Eccentricity of Lateral Displacement of Vertical Loads	Real	0	-
5	Consider Longitudinal Distribution of Point Loads	Consider Longitudinal Distribution of Point Loads	Select	false	-
6	Eccentricity of Lateral Displacement of Vertical Loads	Eccentricity of Lateral Displacement of Vertical Loads	Select	false	-

Output Data

Index	Command	Description	Type	Method	Next Component
1	MVHL	Create Vehicles EUROCODE (EN 1991-2:2003-Rail Traffic Load - Load Model SW/2)	Json	PUT/DELETE	-

Unloaded Train

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	VEHICLE_LOAD _NAME	Vehicular Load Name	String	-	-
2	V_LOAD _FACTOR	Eccentricity of Lateral Displacement of Vertival Loads Factor	Real	1.0	-
3	DIST_RAIL _SUPPORT	Distance between Rail Support Points	Real	0.75	-
4	ECCEN_VERT _LOAD_VALUE	Eccentricity of Lateral Displacement of Vertical Loads	Real	0	-
5	Consider Longitudinal Distribution of Point Loads	Consider Longitudinal Distribution of Point Loads	Select	false	-
6	Eccentricity of Lateral Displacement of Vertical Loads	Eccentricity of Lateral Displacement of Vertical Loads	Select	false	-

Output Data

Index	Command	Description	Type	Method	Next Component
1	MVHL	Create Vehicles EUROCODE (EN 1991-2:2003-Rail Traffic Load - Unloaded Train)	Json	PUT/DELETE	-

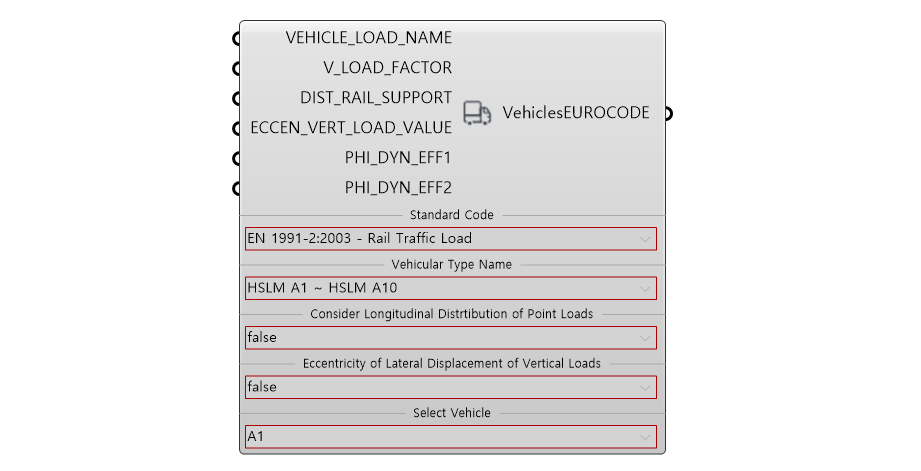

HSLM A1 ~ HSLM A10

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	VEHICLE_LOAD _NAME	Vehicular Load Name	String	-	-
2	V_LOAD _FACTOR	Eccentricity of Lateral Displacement of Vertival Loads Factor	Real	1.0	-
3	DIST_RAIL _SUPPORT	Distance between Rail Support Points	Real	0.75	-
4	ECCEN_VERT _LOAD_VALUE	Eccentricity of Lateral Displacement of Vertical Loads	Real	0	-
5	PHI_DYN_EFF1	Dynamic Effect(Φ')	Real	0	-
6	PHI_DYN_EFF2	Dynamic Effect(Φ'')	Real	0	-
7	Consider Longitudinal Distribution of Point Loads	Consider Longitudinal Distribution of Point Loads	Select	false	-
8	Eccentricity of Lateral Displacement of Vertical Loads	Eccentricity of Lateral Displacement of Vertical Loads	Select	false	-
9	Select Vehicle	Select Vehicle	Select	A1	-

Output Data

Index	Command	Description	Type	Method	Next Component
1	MVHL	Create Vehicles EUROCODE (EN 1991-2:2003-Rail Traffic Load -HSLM A1~HSLM A10)	Json	PUT/DELETE	-

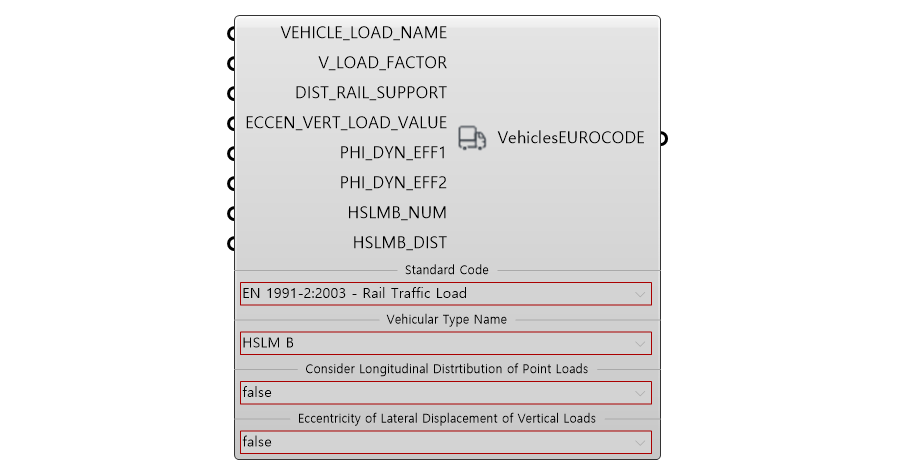

HSLM B

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	VEHICLE_LOAD _NAME	Vehicular Load Name	String	-	-
2	V_LOAD _FACTOR	Eccentricity of Lateral Displacement of Vertival Loads Factor	Real	1.0	-
3	DIST_RAIL _SUPPORT	Distance between Rail Support Points	Real	0.75	-
4	ECCEN_VERT _LOAD_VALUE	Eccentricity of Lateral Displacement of Vertical Loads	Real	0	-
5	PHI_DYN_EFF1	Dynamic Effect(Φ')	Real	0	-
6	PHI_DYN_EFF2	Dynamic Effect(Φ'')	Real	0	-
7	HSLMB_NUM	Number of Point Forces (N)	Interger	-	-
8	HSLMB_DIST	Distance between the Loads (D)	Real	-	-
9	Consider Longitudinal Distribution of Point Loads	Consider Longitudinal Distribution of Point Loads	Select	false	-
10	Eccentricity of Lateral Displacement of Vertical Loads	Eccentricity of Lateral Displacement of Vertical Loads	Select	false	-

Output Data

Index	Command	Description	Type	Method	Next Component
1	MVHL	Create Vehicles EUROCODE (EN 1991-2:2003-Rail Traffic Load -HSLM B)	Json	PUT/DELETE	-

5. Reference API Manual Link

Vehicles - Eurocode
