Summary
- This feature applies a composite slab to a 1D beam.
How to Run
- Ribbon Menu > [Model] Tab > [Analysis] Group > Composite
Explanation

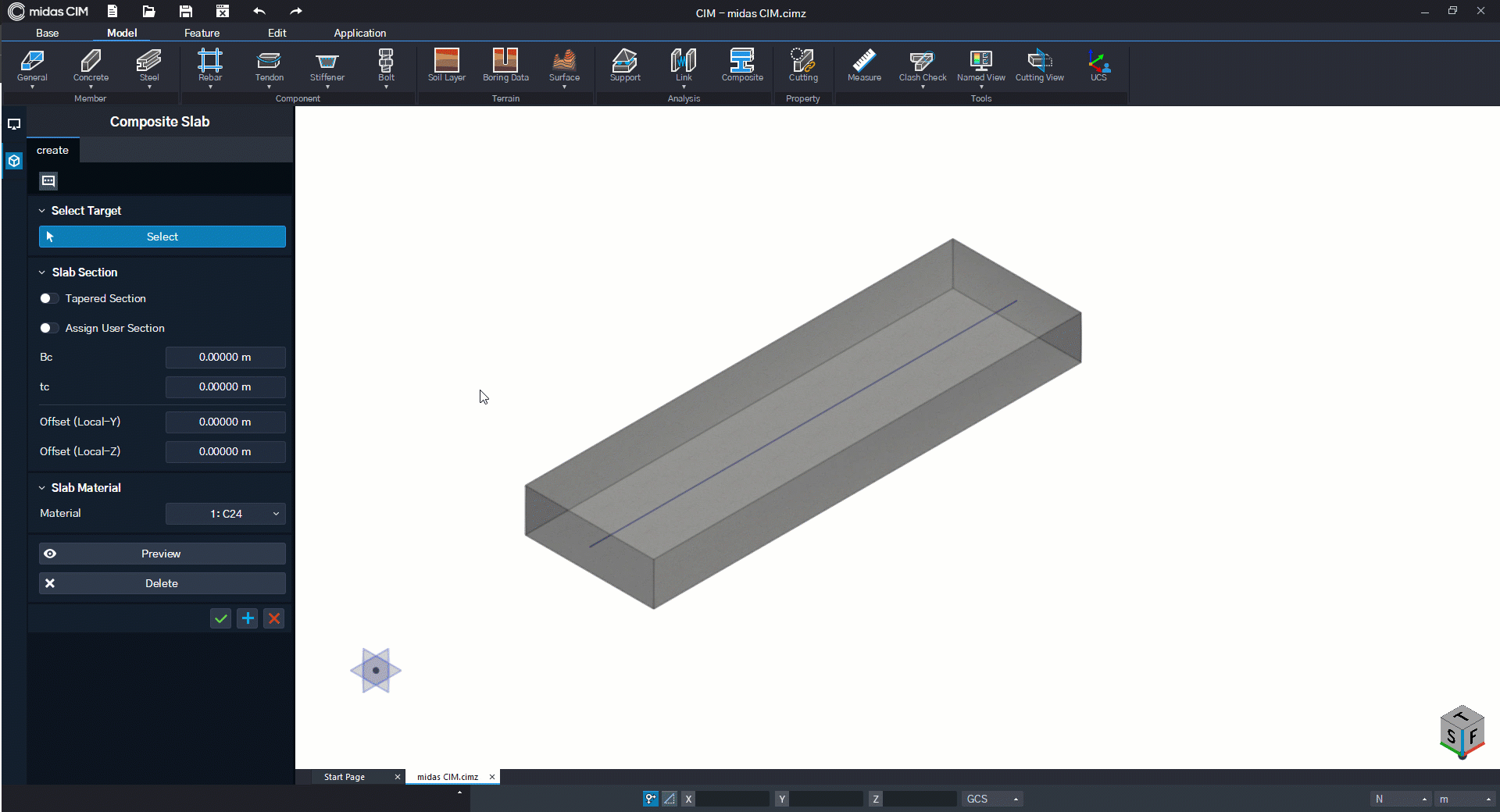

Create Composite Slab
This feature creates a composite slab.
[Select Target]
Select the 1D member to create the composite slab.
[Slab Section]
Define the composite slab properties.
Tapered Section
When set to On, enter Bc and tc values for the start and end.
Assign User Section
When set to On, the user section can be used as the slab section.
Bc : Slab width
tc : Slab thickness
Offset (Local-Y) : Offset value of the slab in the local y axis direction
Offset (Local-Z) : Offset value of the slab in the local z axis direction
[Slab Material]
Set the material for the slab.
[Preview]
A preview is created.
[Delete]
Delete the created slab.
Note
The created composite slab only shows after entering the anlysis mode.
