Summary
- Rotate the shape around its axis to create a parent shape.
How to Run
- Ribbon Menu > [Feature] Tab > [Generate] Group > Revolve
Explanation
By Draw Method
Define a new line to set the axis of rotation and create a parent shape based on that axis of rotation.
[Select Target]
Select the target object that the user wants to rotate to create a parent shape.
[Define Axis]

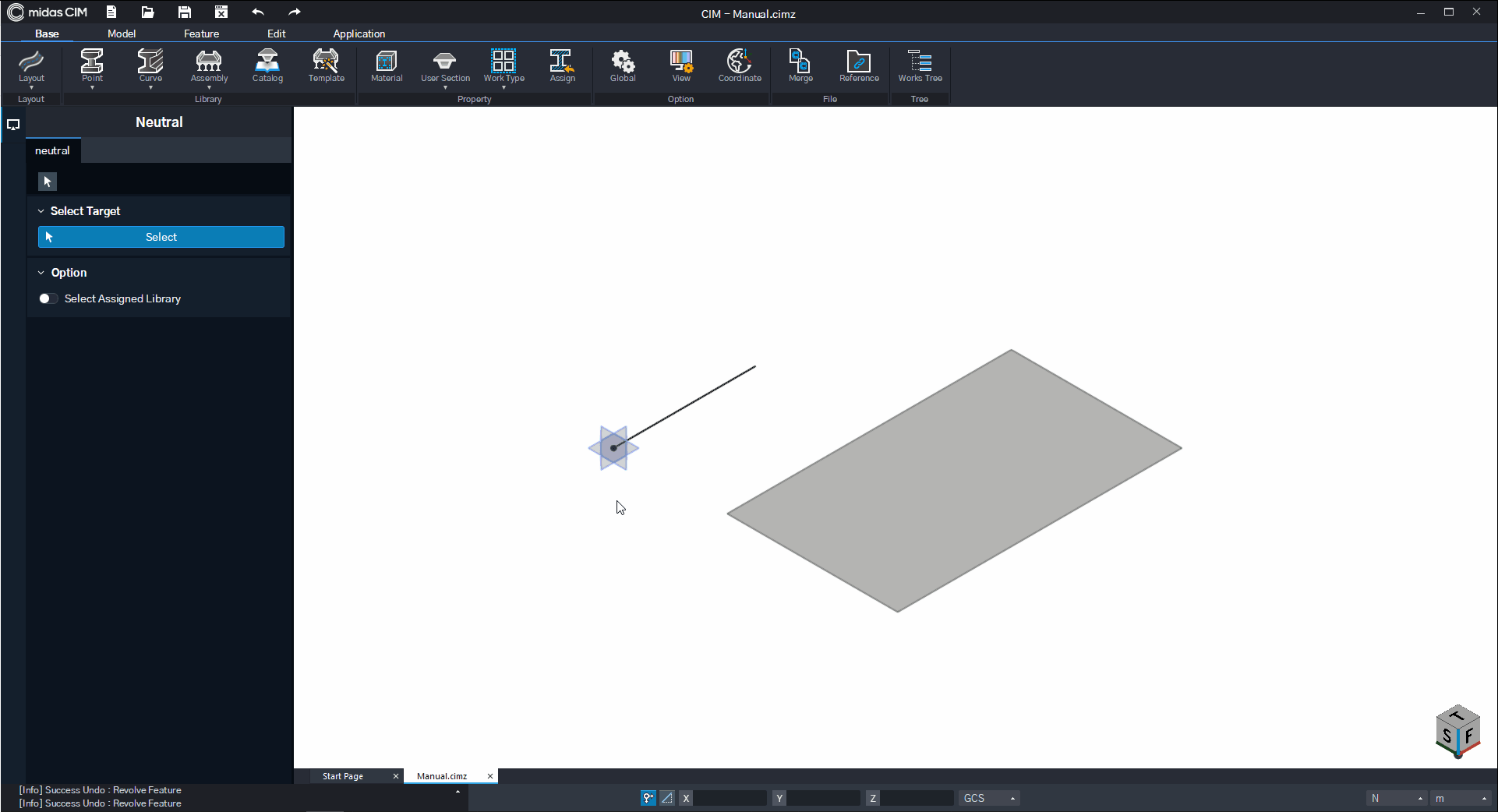

By Draw Method : Draw a line manually to set the axis of rotation.
By Select Method : Set an Edge on the screen as the axis of rotation.
Detailed Explanation (Define Axis)

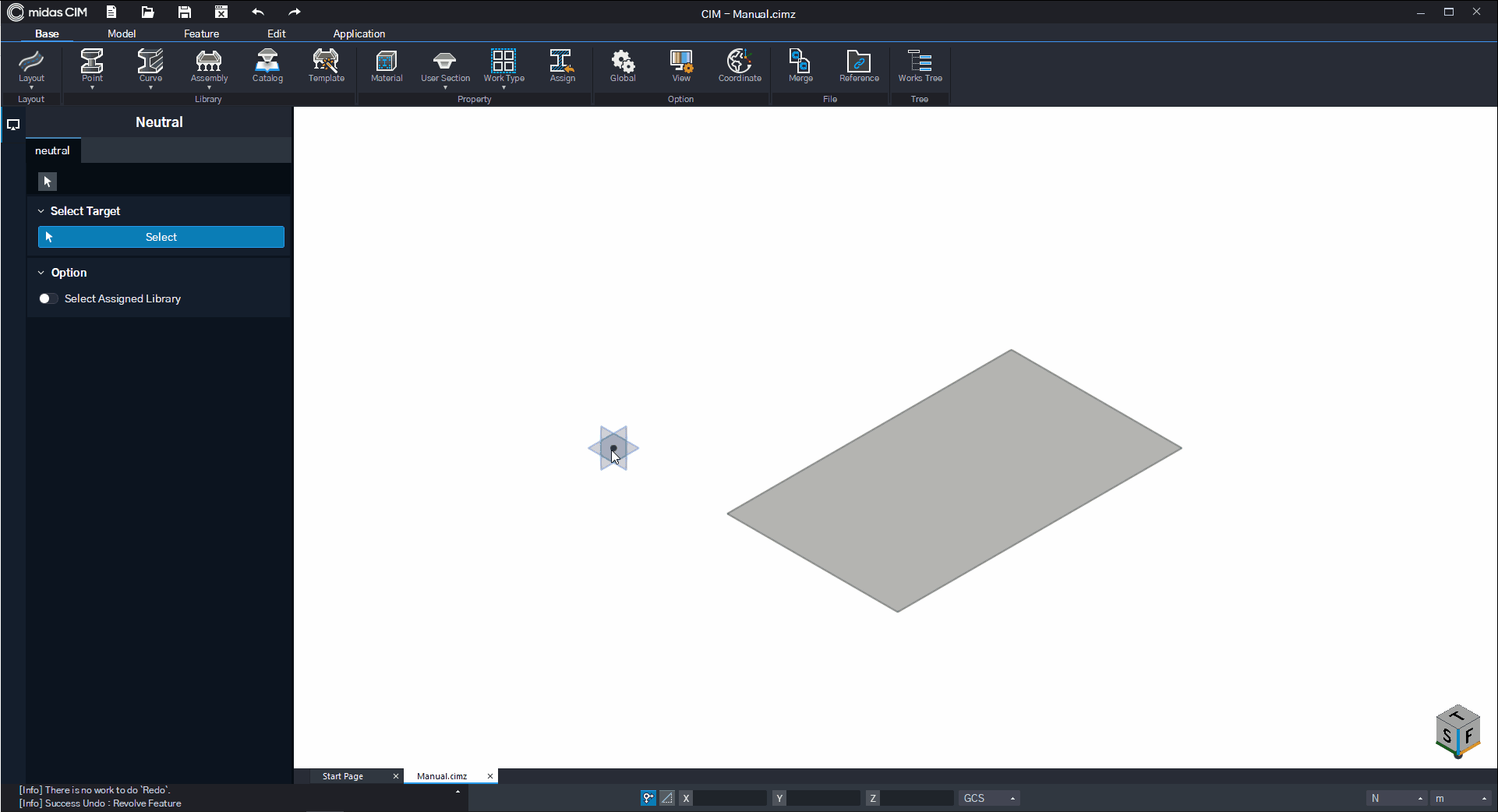

By Select Method
[Protrusion Angle]
Enter the rotation angle for each rotation direction.
