Wire

Summary

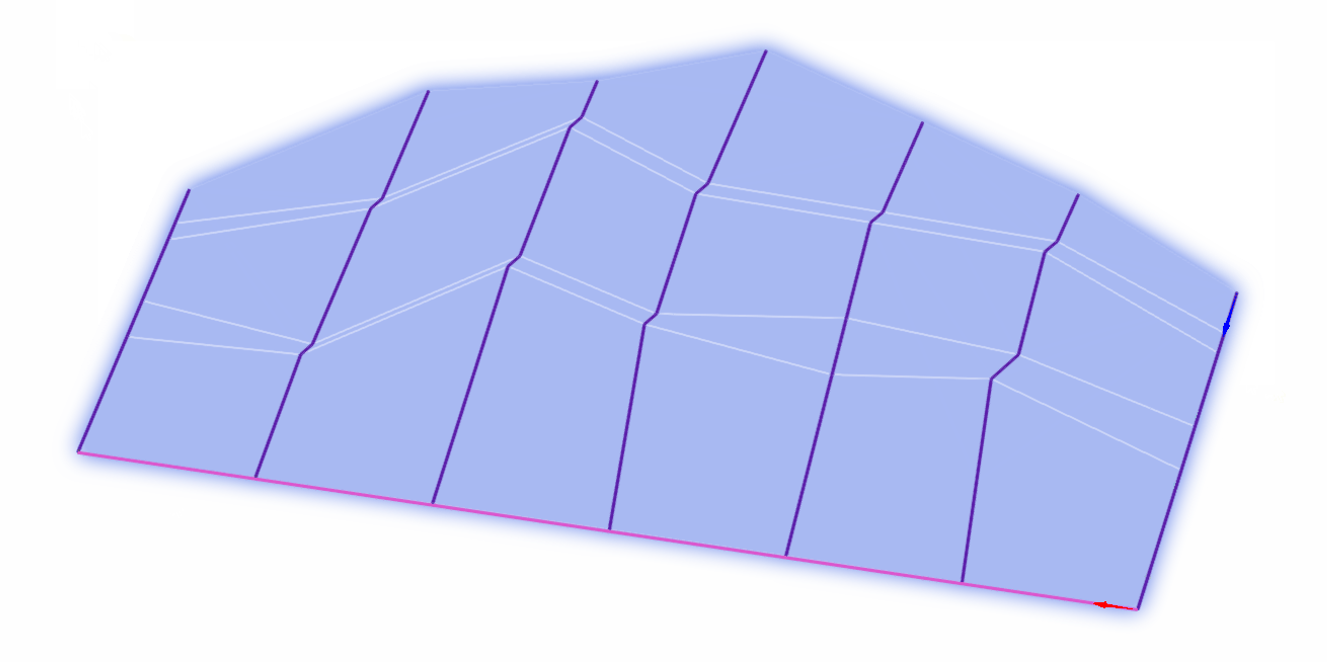

• Connect the slope profile to create a face.

How to Run

• Ribbon Menu > [Feature] Tab > [Generate] Group > Loft > Wire

Explanation

Create Parent Surface

Select multiple profiles and paths to create a parent surface.

[Select Profile]

Select Profile. Multiple profiles can be selected.

[Select Path]

Select the path to which the user wants to connect the profile.

[Start Point]

Sets the start point of the Path.

[Vertex Matching Reference]

Select the method to connect vertices.

Start or end vertex : Start Matching at the first point in the Profile.

Center : Start Matching from the center point of the profile.

Path : Start the Matching from a point close to the Path.

[Edge Grouping]

Define the groups to match when connecting to a Vertex.

Method : Group the values below the set Angle. This can be set using an edge or a plane.

Angle : Defines the Angle values to grouping.

[Option]

Lofted faces are created smoothly.
