Summary
- Create a surface object.
How to Run
- Ribbon Menu > [Feature] Tab > [Create] Group > Surface > Curved
Explanation
Point Interpolation Method

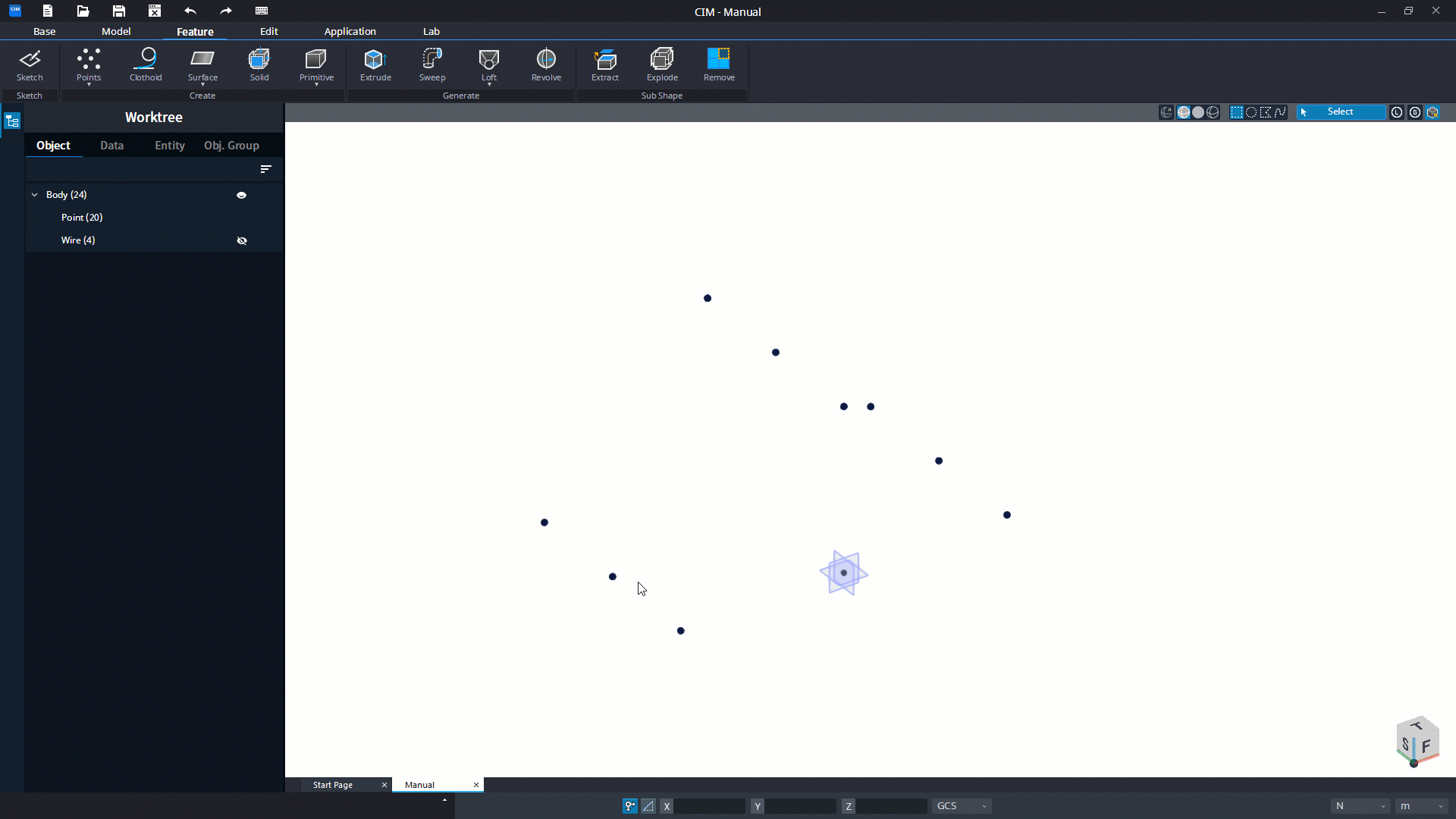

Use point interpolation to create a surface.
[Select Vertex]

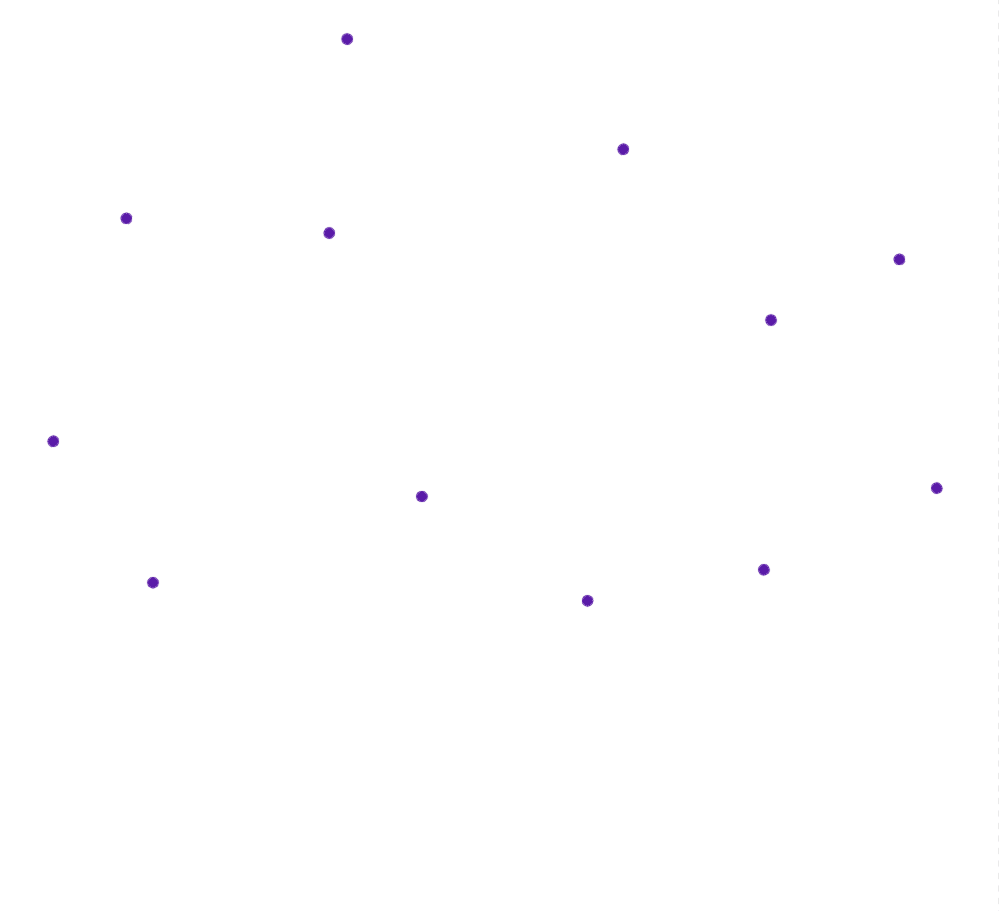

Select the point objects to create a face using the point interpolation method.
[Option]
This option is used when creating surfaces.
Detailed Explanation (Boundary Type)
Set the method used to create a face.
Convex Hull (Default)
Set the smallest curved surface containing all the selected points.
Bounding Box
Set surfaces of a rectangle containing all the selected points.
Closing by Edges Method
A method for generating surfaces using closed edges.
[Select Edge]
Select edges objects to create a surface.
