Summary
- Selects and extracts child shapes that make up the parent shape as an independent object.
How to Run
[Base Mode]
- Ribbon Menu > [Feature] Tab > [Sub Shape] Group > Extract
[User Section Mode]
- Ribbon Menu > [User Section] Tab > [Shape] Group > Extract
Explanation

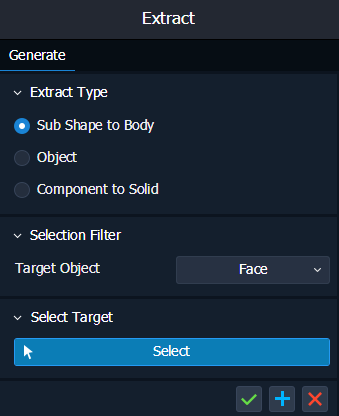

Sub Shape to Body Type
This function selects the sub-shape constituting the parent shape and extracts it as an independent object.
[Selection Filter]
Select the type of child geometry the user wants to extract as an independent object.
Detailed Explanation (Selection Filter)

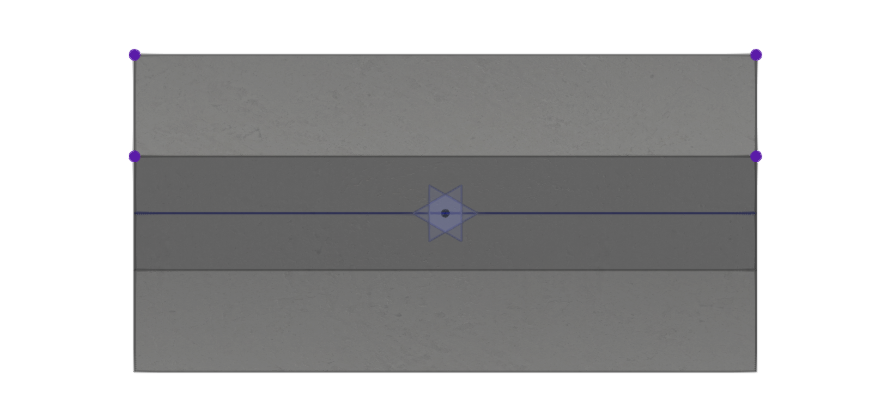

Vertex

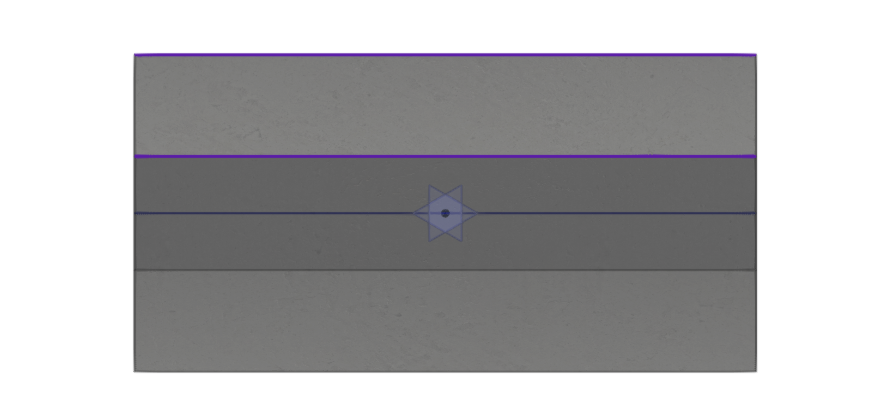

Edge

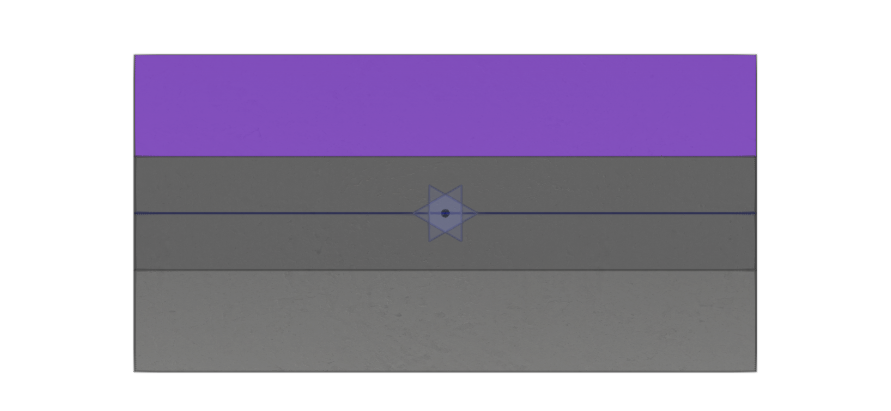

Face

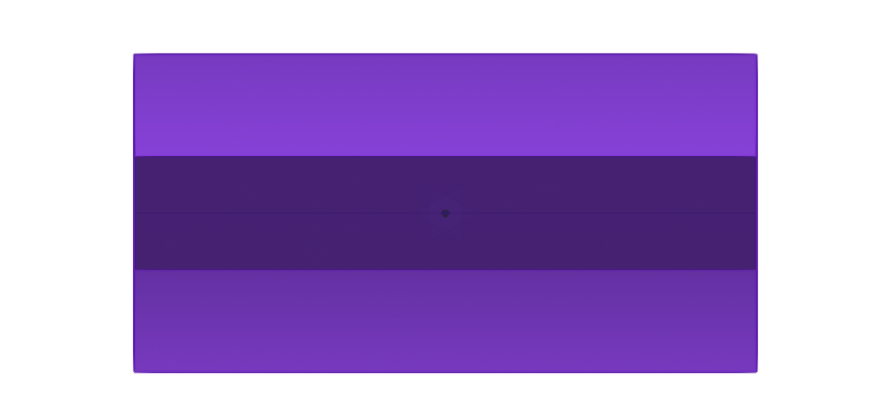

Solid
[Select Target]
Select the child geometry to extract as an independent object.

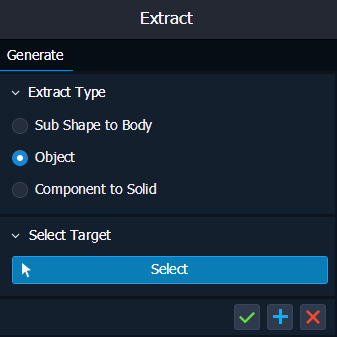

Object Type
This function selects and extracts in object units (same as Neutral Select units).
[Selection Target]
Select what you want to extract on object unit.

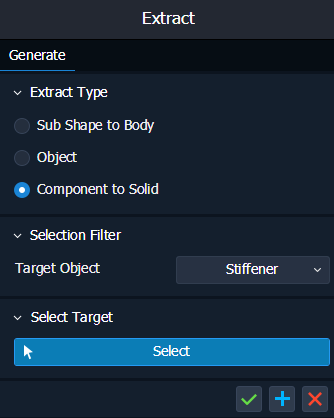

Component to Solid Type
This is a function to select a component object and extract it as a solid.
[Selection Filter]
Select the type of component to be extracted as a solid.
[Select Target]
Select the Component objects to be extracted to Solid.
