Points

Summary

• Multiple point objects are created together.

How to Run

• Ribbon Menu > [Feature] Tab > [Create] Group > Points > Points

Explanation

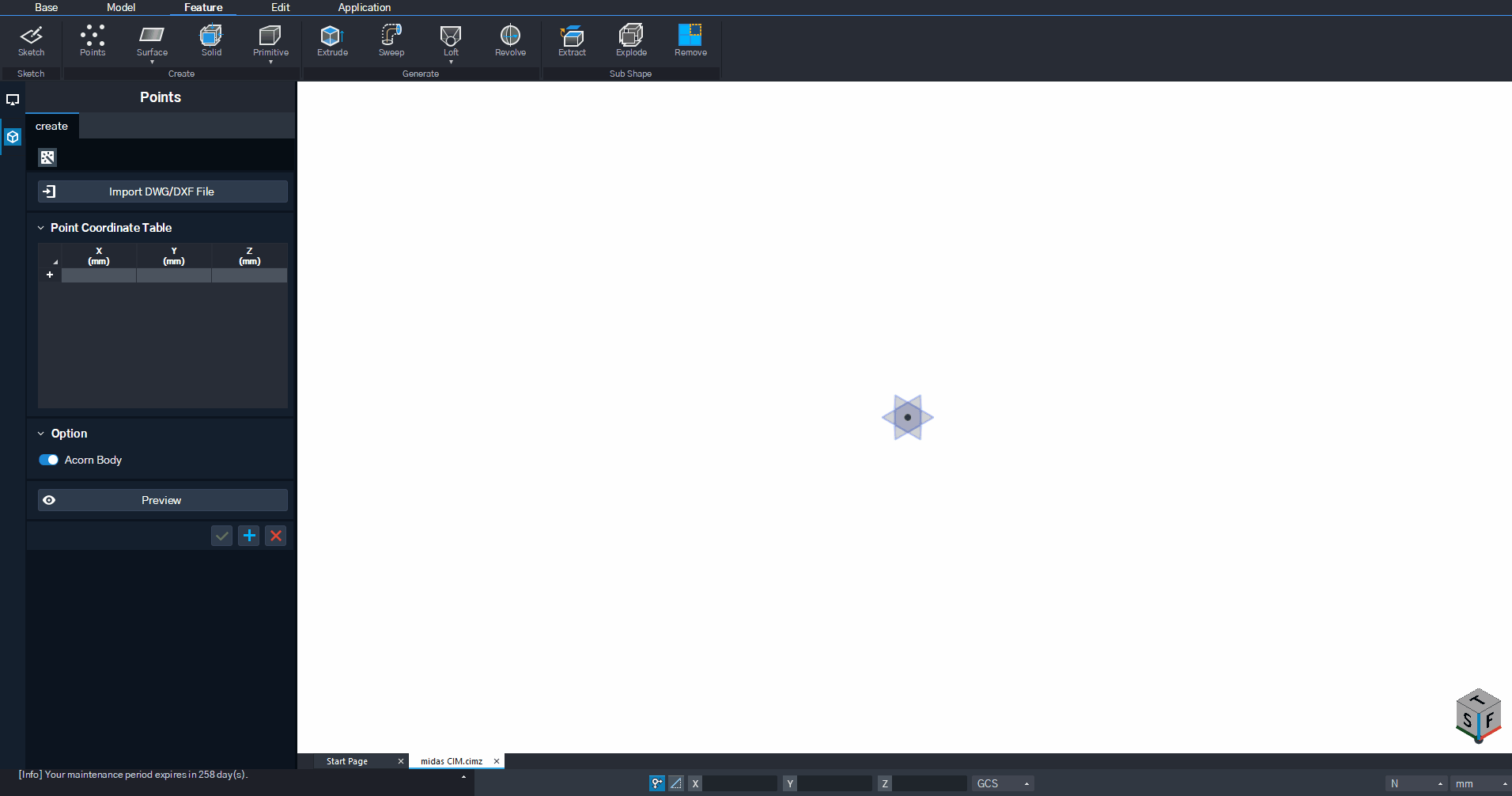

Create Points Through DWG/DXF Import

Create multiple point objects by importing a DWG/DXF file.

[Import DWG/DXF File]

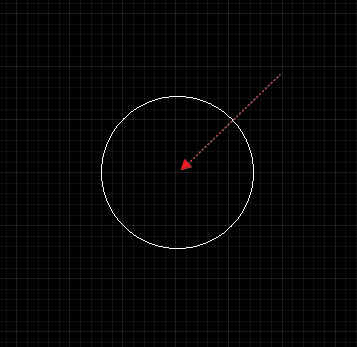

Import a DWG/DXF with a point or a circle to enter their coordinates into a table.

[DWG/DXF File]

This menu appears when DWG file is imported.

Length Unit : Shows the unit of the imported DWG.

Scale Factor : Enter the scale factor to increase or decrease scale when entering into CIM.

[Select Layer]

Select the layer to import point coordinates.

[Define Location]

Select the plane to place the points.

Select a plane and press the ‘Add Points to Table’ button to enter the coordinates of the DWG/DXF file into the table.

Note
Reference - Define Plane

[Option]
This option is used when creating point objects.

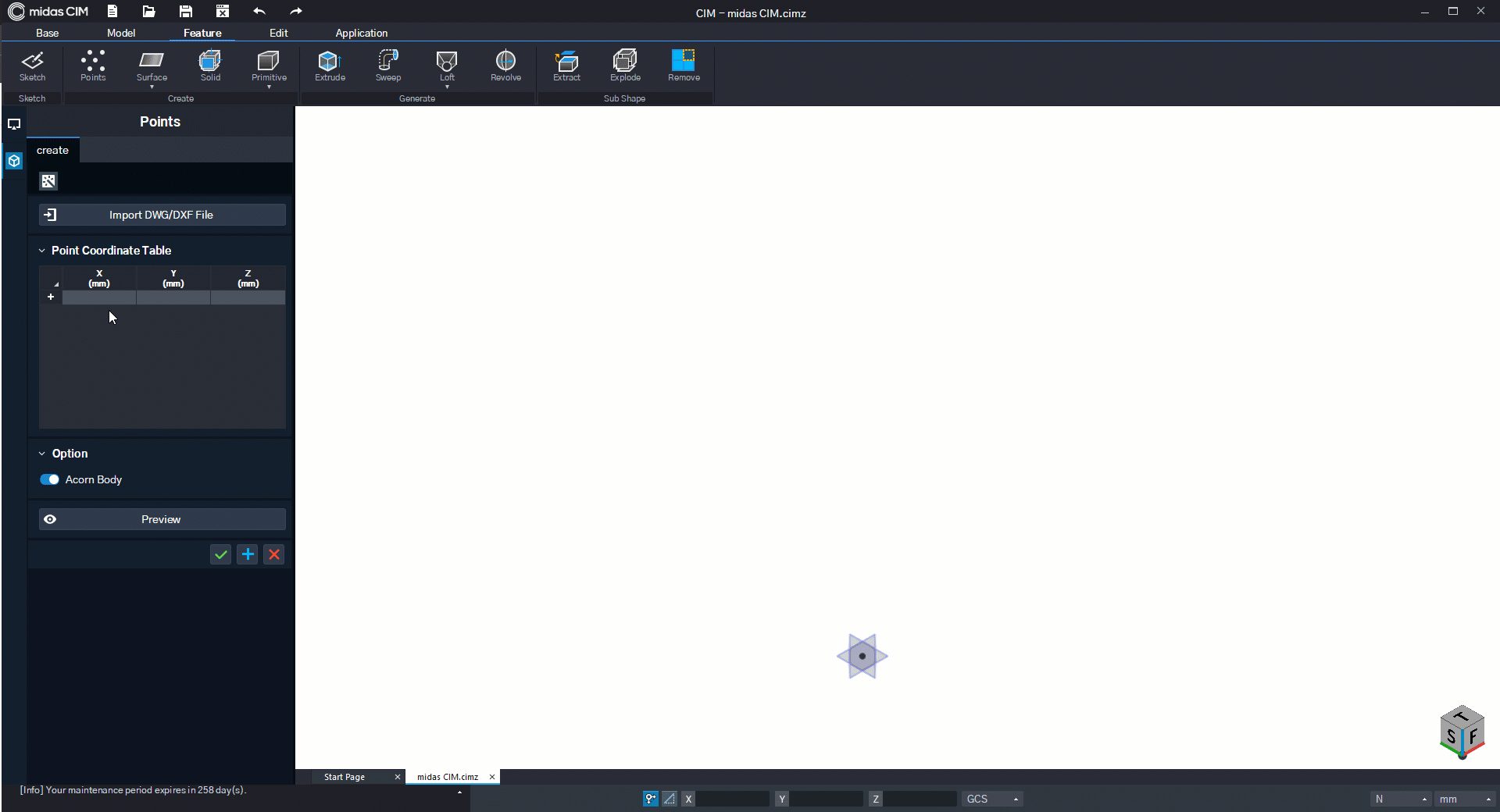

Create Points Using Table Input

Enter (X, Y, Z) values manually to create multiple point objects.

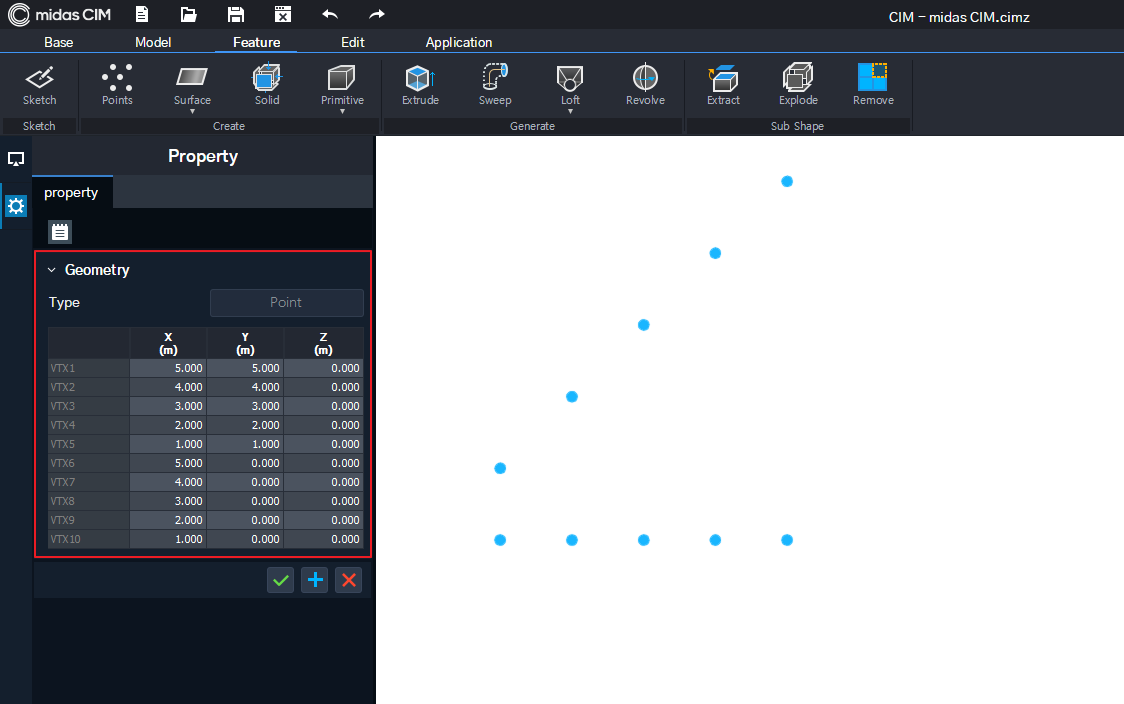

[Point Coordinate Table]

Enter manually or copy/paste the values.

[Option]

This option is used when creating point objects.
