Summary
- Use a closed face or a Sheet Body object to create a Solid.
How to Run
- Ribbon Menu > [Feature] Tab > [Create] Group > Solid
Explanation
Create Solid Objects
Use a closed face or a 2D Surface Body to create a Solid.

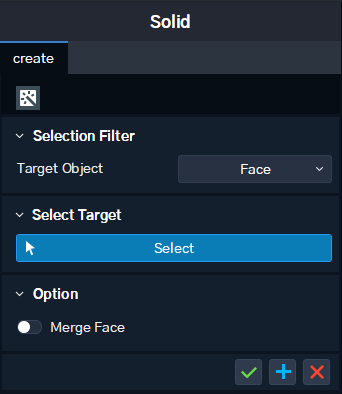

[Selection Filter]
Select the type of the target to use when creating a solid.
Note
Reference - Object classification according to property information (Body / Member)
[Select Target]
Select all closed sections. Only objects in the Selection Filter can be selected.
[Option]
Merge Face : Surfaces on the same plane are merged to create a solid.
Delete Target : After creating the Solid, delete the Surface used as the Target.
Detailed Description (Merge Face)

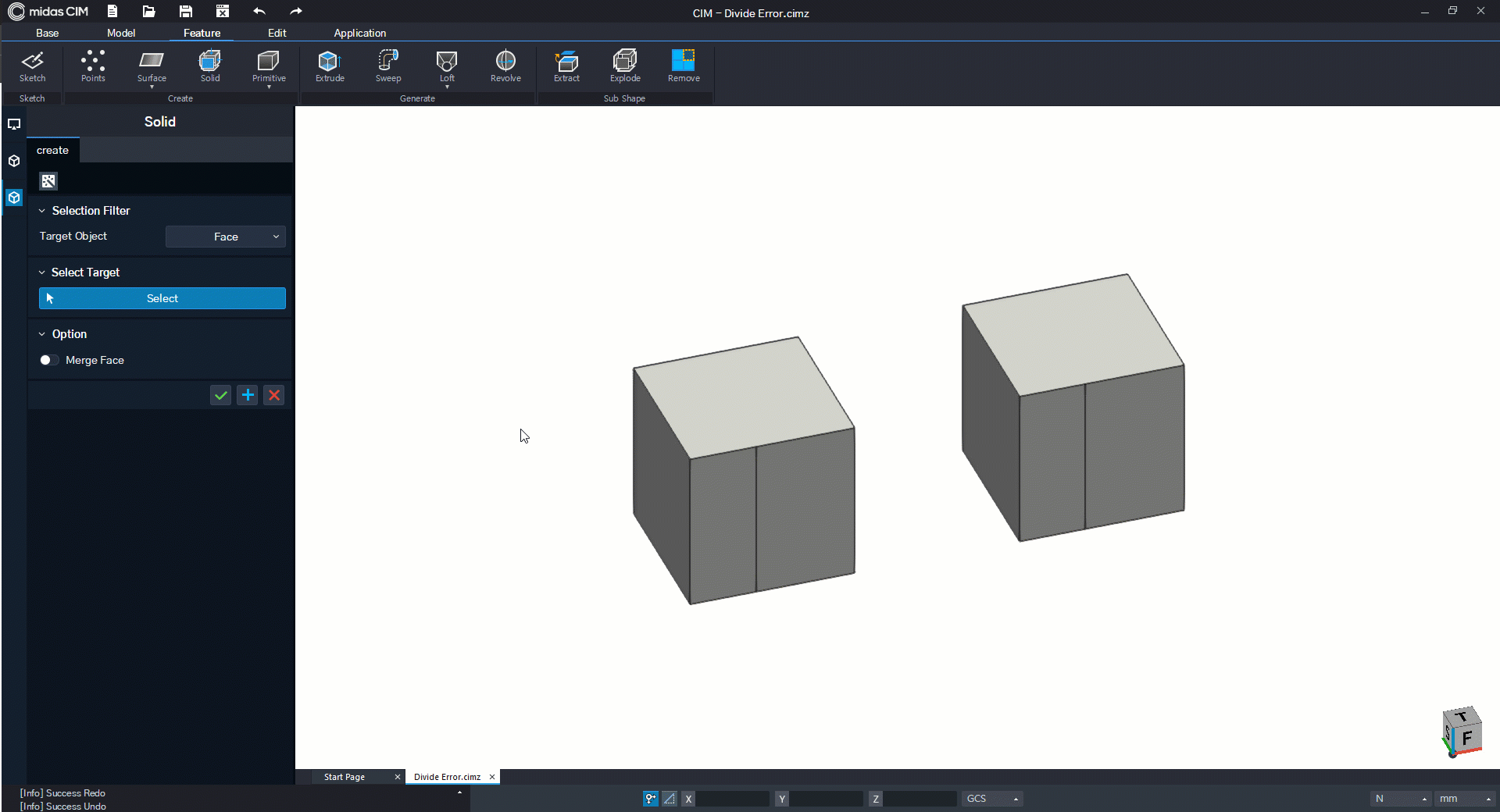

Create a solid with the left side OFF and the right side ON.
The surface on the same plane used to create the right solid is merged and the dividing line disappears.
