Summary
- Multiple point objects are created together based on the layout.
How to Run
- Ribbon Menu > [Feature] Tab > [Create] Group > Points > By Layout
Explanation

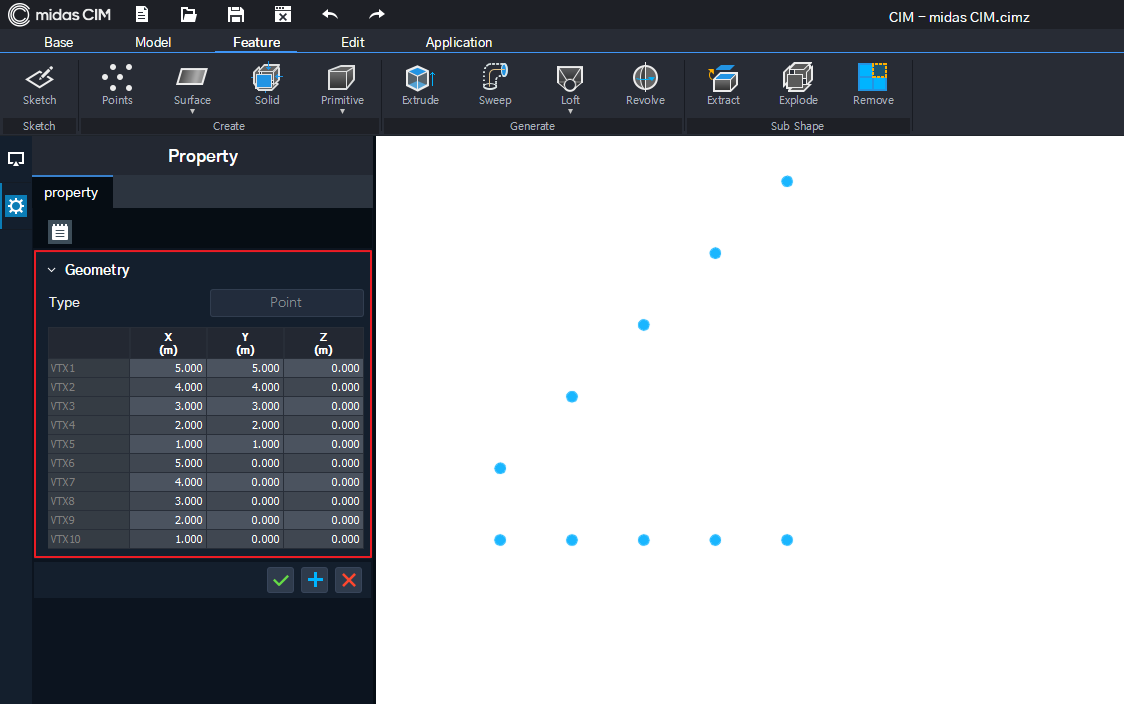

Create Points Using Table Input
Enter the relative position of the layout to create multiple point objects.

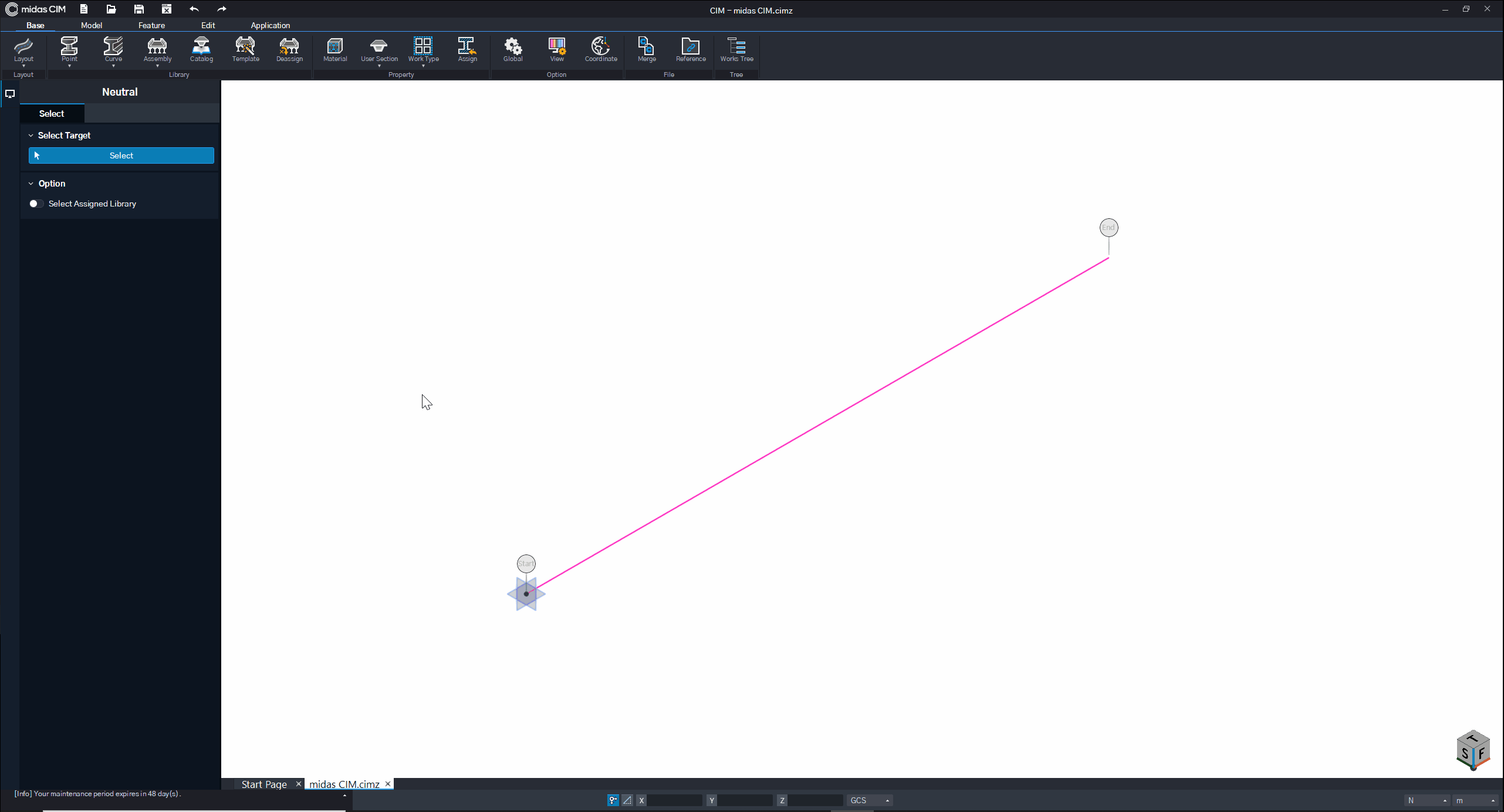

[Select Layout Segment]
Select the layout that will be used as reference for placement.
Single Segment : Place points based on the segments that form the layout. Only one segment can be selected.
Multiple Segments : Place points based on the segments that form the layout. Multiple segments can be selected, but only segments nearby can be selected.
Whole Layout : Place points based on the whole layout.
[Horizontal Offset & Level]
Enter Station, Offset, Level values manually or copy/paste.
[Option]
This option is used when creating point objects.
When applied with the Acorn Body option is set to On, points are not created individually but created as a clustered Acorn object.
