Summary
- View or edit property information for classification, geometry, analysis, quantity settings of the 2D Member
How to Run
- Select the 2D Member on the screen.
Explanation

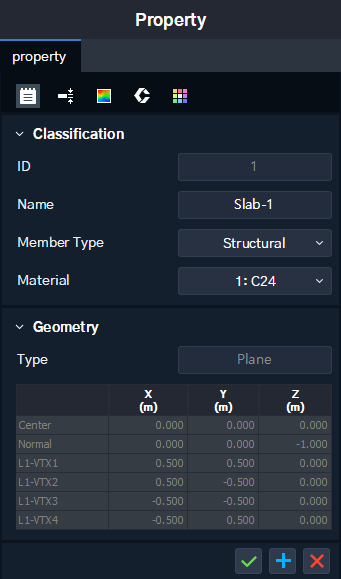

Common Tab
[Classification]
View or edit the classification properties of an object.
ID : Unique Number
Name : Name
Member Type : Member Type
Material : Material
Note
Member Type Properties
[Geometry]
Displays the geometry properties of the object.
Note
Geometry Properties

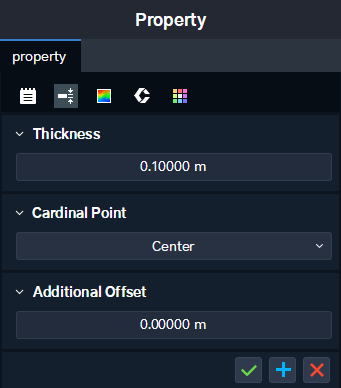

Thickness Tab
[Thickness]
Enter thickness of the 2D member.
[Cardinal Point]
Sets the direction in which the thickness is applied relative to the member geometry.
Bottom
The thickness is applied from the member surface in the +Z axis direction.
Center
Half of the entered thickness is applied both sides of the member surface.
Top
The thickness is applied from the member surface in the -Z axis direction.
[Additional Offset]
Enter additional offset in the z-direction from the surface where the thickness is applied based on the cardinal point settings.

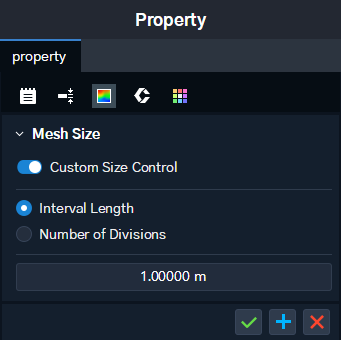

Analysis Tab
Note
Reference - Analysis Properties

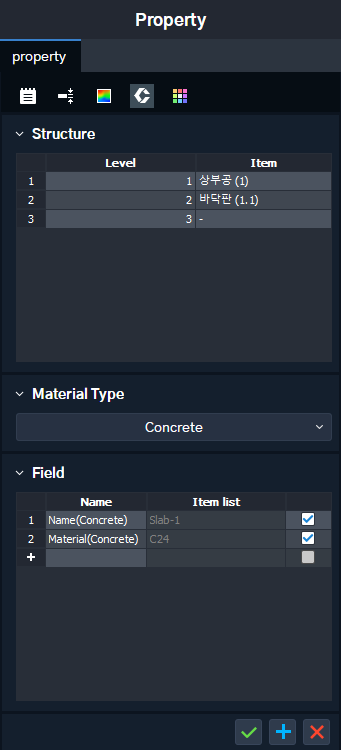

Construction Tab
Note
Reference - Construction Properties

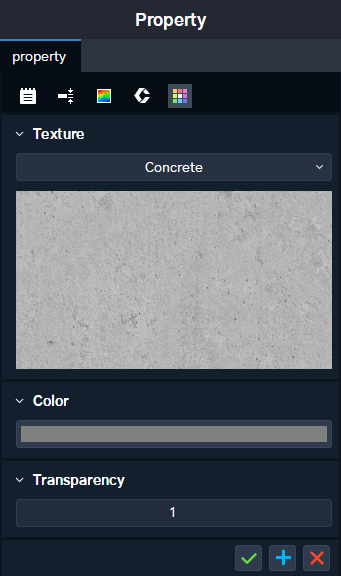

Graphics Tab
Note
Reference - Graphics Properties
