Summary
- View or edit property information for classification, geometry, analysis, quantity settings of the 1D Steel Member.
How to Run
- Select the 1D Steel Member on the screen.
Explanation

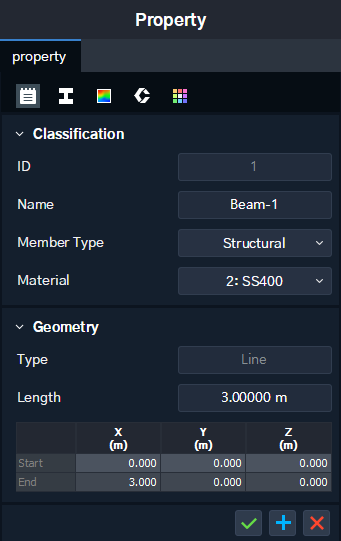

Common Tab
[Classification]
View or edit the classification properties of an object.
ID : Unique Number
Name : Name
Member Type : Member Type
Material : Material
Note
Member Type Properties
[Geometry]
Displays the geometry properties of the object.
Note
Geometry Properties

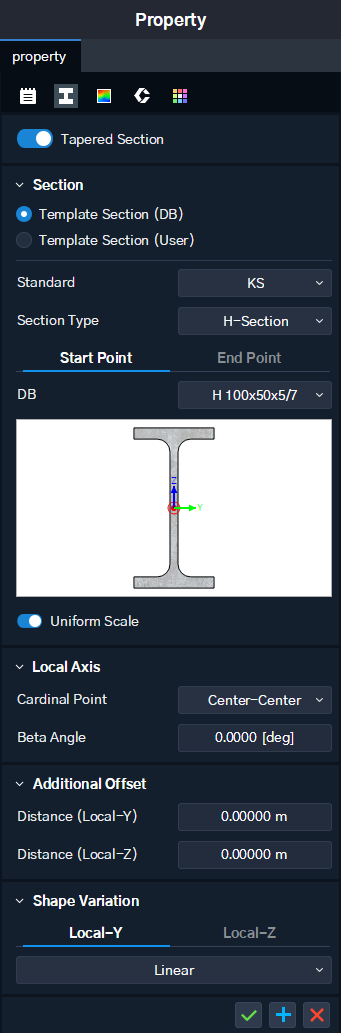

Section Tab
[Tapered Section]
Sets whether side sections are applied.
[Section]
Sets section information.
Template Section (DB) : This method select a section to use from the country-specific standard section database.
Standard : Set the country code.
Section Type : Select the type of section shape.
DB : Select the database (DB) to use.
Template Section (User) : This method allows manual input of a standardized section shape.
Section Type : Select the type of section shape.
Enter the necessary section dimensions after setting the section shape.
Preview Section Shape
Preview : Shows the actual section shape based on the input dimensions.
Guide : Check the dimensions using the illustration.
Uniform Scale : This option only appears for Tapered Section members, and when set to On, the preview will display based on the dimensional differences between the start and end sections.
[Local Axis]
Set the position and direction of the section based on the geometry line of the member.
Cardinal Point : Sets the position where the section will be placed with respect to the geometry line of the member.
Beta Angle : Sets the direction of the section that will be placed with respect to the geometry line of the member.

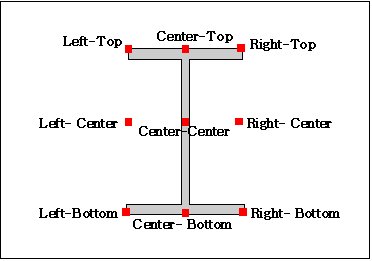

Sets the position where the section will be placed with respect to the member geometry. Using the options in the drop-down menu, the member geometry can be placed as shown in the illustration below.
Note
The member geometry needs to exist first for the placement of the section at the start and end points of the geometry.

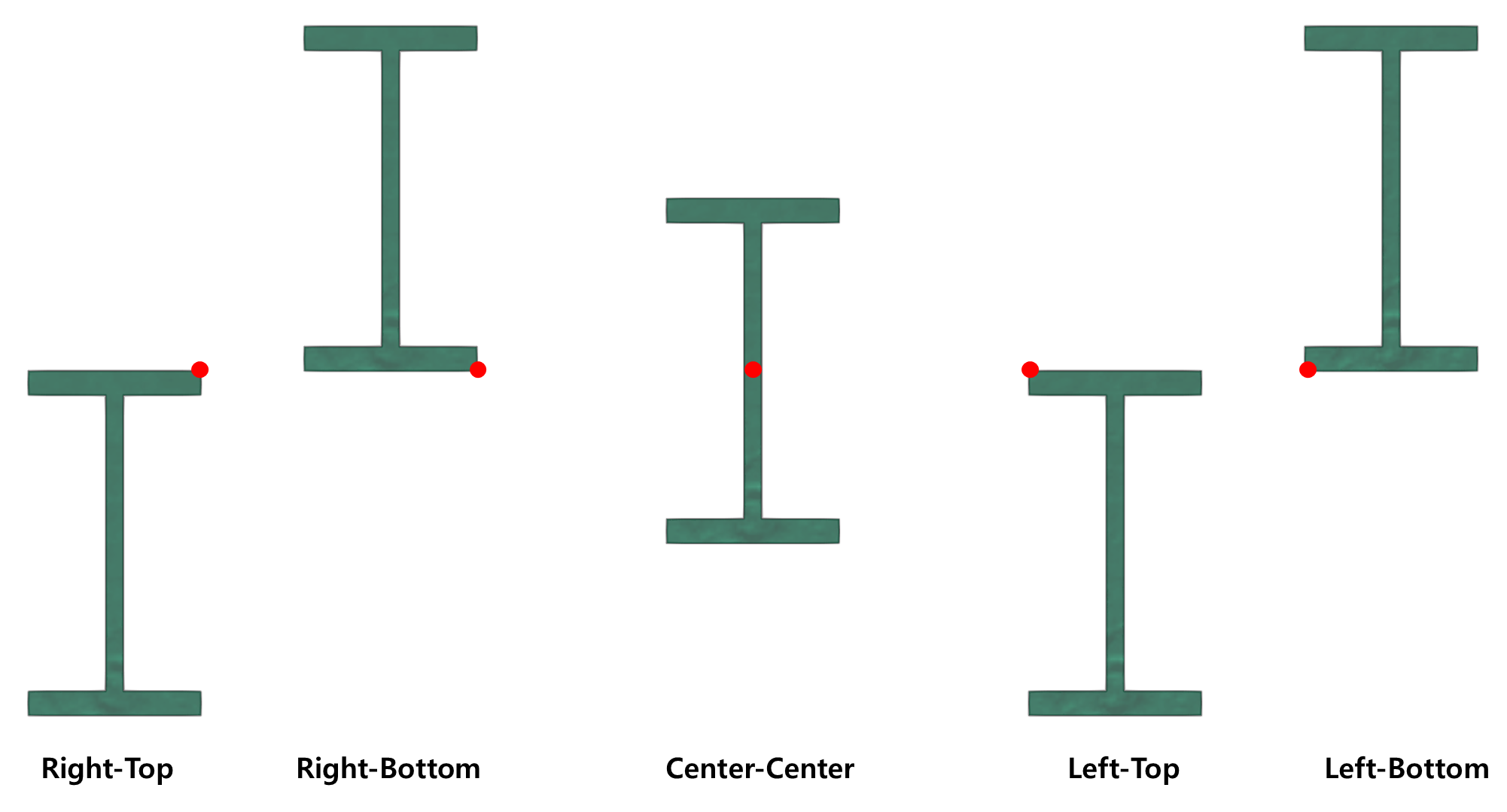

If different Cardinal Point settings for a section are set after placing member geometries at the same interval, the result of this is shown above. The red dots indicate the location of the geometry, and each figure represents the option selected from the Cardinal Point drop-down menu.

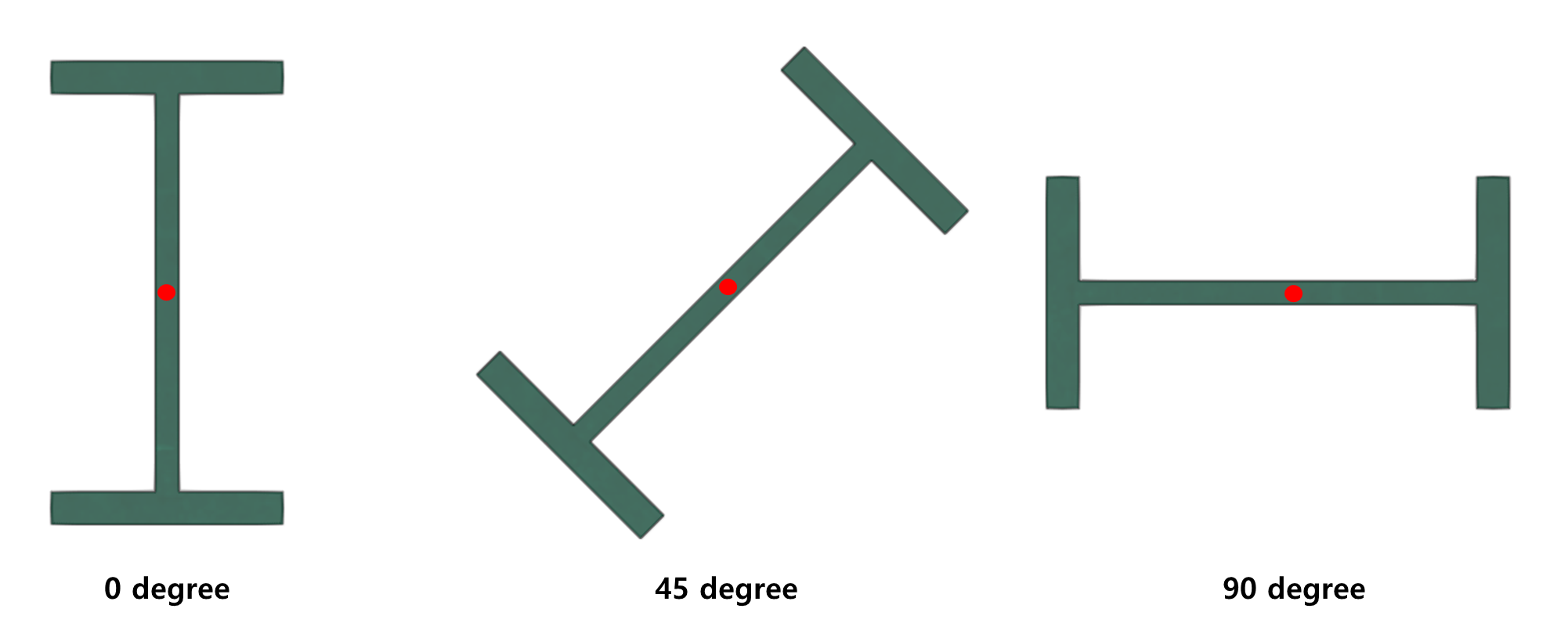

Sets the direction of the section that will be placed with respect to the member geometry. The figures below shows the effect of different Beta Angle values applied to sections with same Cardinal Point properties.
[Additional Offset]
Enter an additional separation distance from the position of the section placed according to the Cardinal Point setting.
[Shape Variation]
Sets the change type of the line connecting the start and end sections.
Note
Reference - Application of Variation Type of Member Element

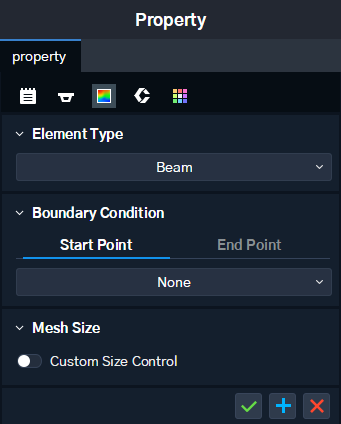

Analysis Tab
Note
Reference - Analysis Properties

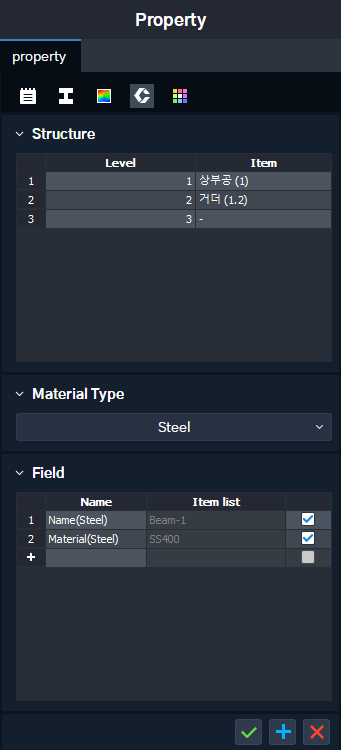

Construction Tab
Note
Reference - Construction Properties

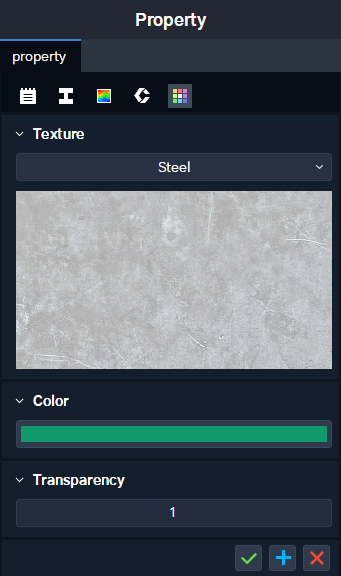

Graphics Tab
Note
Reference - Graphics Properties
Reference Materials
Application of Cardinal Point of Member Element
Application of Variation Type of Member Element
