Summary
- View or edit property information for classification, geometry, analysis, quantity settings of the Shear Reinforcement Group.
How to Run
- Select the Shear Reinforcement Group on the screen.
Explanation

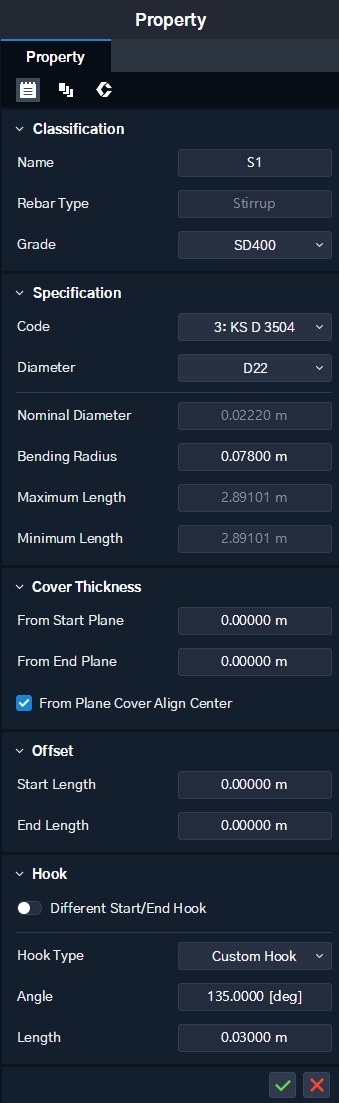

Common Tab
[Classification]
Set the classification properties of the rebar group.
Name : Enter the name of the rebar group.
Rebar Type : Displays the rebar type.
Grade : Sets the material grade of the rebar group.
[Specification]
Sets the specification of the rebar group.
Code : Sets the rebar specification.
Diameter : Select the rebar diameter. This is enabled only when a code is selected.
Nominal Diameter : Enter the nominal diameter of the rebar.
Bending Radius : Enter the bending radius of the rebar.
Maximum Length : Displays the length of the longest rebar within the rebar group.
Minimum Length : Displays the length of the shortest rebar within the rebar group.
Diameter : This is enabled only when a ‘Code’ is selected.
Nominal Diameter : ‘Once the ‘Diameter’ is set, the nominal diameter is displayed. This can be entered manually only when ‘Code : None’.
Bending Radius : Once the ‘Diameter’ is set, the bending radius is displayed. This can also be input manually.
Note
Rebar Specification
[Cover Thickness]
Sets the cover property that adjusts the position of the rebar group in the member.
From Start/End Plane : Enter the rebar cover thickness from the start and end planes.
From Plane Cover Align Center : Sets the criteria for ‘From Plane’.
[Offset]
Adjust the extension length at both ends of the rebar.
Start/End Length : Enter the extension length at the start and end of the rebar. Enter a positive (+) value to shorten, and a negative (-) value to extend.
[Hook]
Set the shape of a hook.
Differenct Start/End Hook : Set whether to apply hook settings differently to the start and end point of the hook.
Hook Type : Select the type of hook.
Angle : Enter the angle of the hook.
Length : Enter the length of the hook.
Differenct Start/End Hook
Off : Applies same hook settings to start and end point of the hook.
On : Applies different hook settings to start and end point of the hook. This enables the Start/End Point Tab button.
Hook Type : Select the hook type based on the angle.
No Hook : The hook is not created.
Custom Hook : The hook is created based on the hook angle entered by the user.
±180°, ±135°, ±90° : The hook is created according to the information specified in ‘Rebar
Specification’. For this setting, the angle/radius/length cannot be set manually.

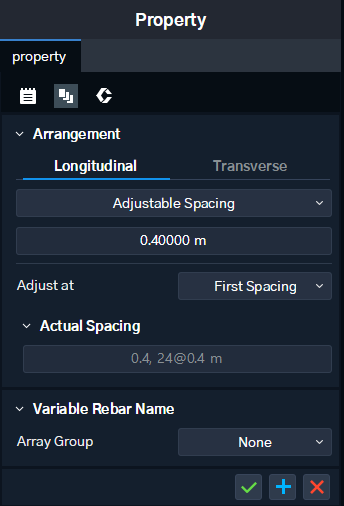

Array Tab
[Arrangement]
Sets the spacing for the stirrup rebar.
Longitudinal : Sets the longitudinal spacing of the stirrup rebar.
Transverse : Sets the transverse spacing of the stirrup rebar.
Tolerance : Enter the tolerance for the transverse arrangement. The stirrup rebar is arranged in the transverse direction based on the user-defined spacing and tolerance.
Adjustable Spacing : Arrange the rebars using the entered spacing.
First Spacing : Arrange the rebars using the entered spacing, and then adjust from the first spacing.
Last Spacing : Arrange the rebars using the entered spacing, and then adjust from the last spacing.
Middle Spacing : Arrange the rebars using the entered spacing, and then adjust from the middle spacing.
First/Last Spacing : Arrange the rebars using the entered spacing, and then adjust base on equidistant spacing between the first and last spacing.
Number of Rebars : Arrage the rebars using the number of rebars entered.
Uniform Max. Spacing : Arrage the rebars at equal spacing.
Pattern Spacing : Arrange according to the entered spacing. Do not arrange for any remaining values less than the entered spacing.
User Defined : Arrange the rebars using user-defined spacing.
Ex) 3@200, 400, 5@150
None : Create a single stirrup rebar without spacing.
Pattern Spacing : Arrange according to user-defined spacing.
Number & Spacing : Enter the number of stirrup rebars and spacing to arrange them.
[Actual Spacing]
Displays the actual spacing used to arrange the rebars.
[Variable Rebar Name]
Sets the name rule within the rebar group.
Array Group : Set the name of each arranged rebar differently.

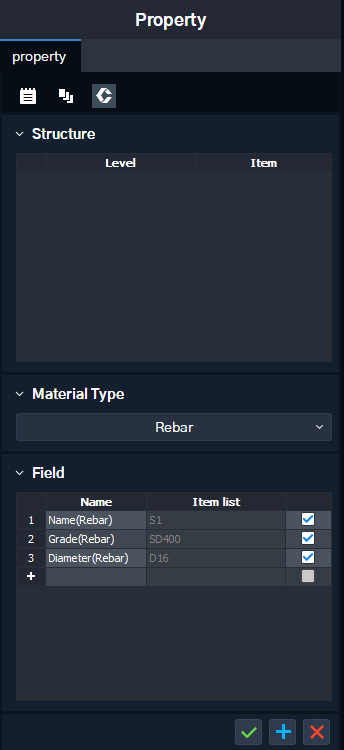

Construction Tab
Note
Reference - Construction Properties
