Summary
- View or edit property information for classification, geometry, analysis, quantity settings of the Stirrup Group.
How to Run
- Select the Stirrup Group on the screen.
Explanation

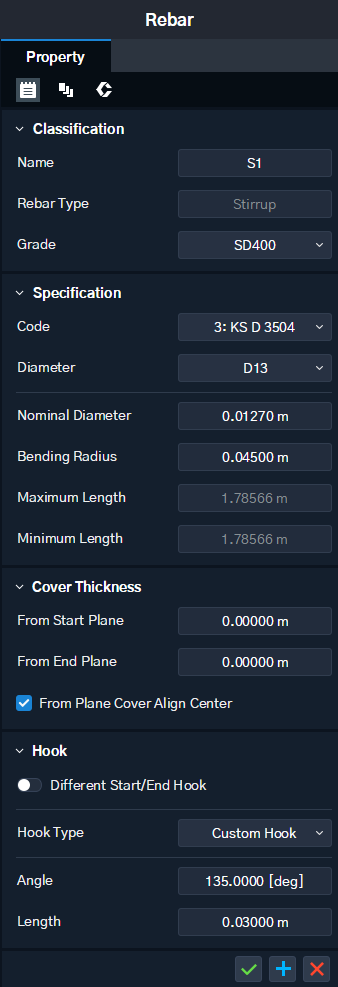

Common Tab
[Classification]
Set the classification properties of the rebar group.
Name : Enter the name of the rebar group.
Rebar Type : Displays the rebar type.
Grade : Sets the material grade of the rebar group.
[Specification]
Sets the specification of the rebar group.
Code : Sets the rebar specification.
Diameter : Select the rebar diameter. This is enabled only when a code is selected.
Nominal Diameter : Enter the nominal diameter of the rebar.
Bending Radius : Enter the bending radius of the rebar.
Maximum Length : Displays the length of the longest rebar within the rebar group.
Minimum Length : Displays the length of the shortest rebar within the rebar group.
Diameter : This is enabled only when a ‘Code’ is selected.
Nominal Diameter : ‘Once the ‘Diameter’ is set, the nominal diameter is displayed. This can be entered manually only when ‘Code : None’.
Bending Radius : Once the ‘Diameter’ is set, the bending radius is displayed. This can also be input manually.
Note
Rebar Specification
[Cover Thickness]
Sets the cover property that adjusts the position of the rebar group in the member.
From Start/End Plane : Enter the rebar cover thickness from the start and end planes.
From Plane Cover Align Center : Sets the criteria for ‘From Plane’.
[Hook]
Set the shape of a hook.
Differenct Start/End Hook : Set whether to apply hook settings differently to the start and end point of the hook.
Hook Type : Select the type of hook.
Angle : Enter the angle of the hook.
Length : Enter the length of the hook.
Differenct Start/End Hook
Off : Applies same hook settings to start and end point of the hook.
On : Applies different hook settings to start and end point of the hook. This enables the Start/End Point Tab button.
Hook Type : Select the hook type based on the angle.
No Hook : The hook is not created.
Custom Hook : The hook is created based on the hook angle entered by the user.
±180°, ±135°, ±90° : The hook is created according to the information specified in ‘Rebar
Specification’. For this setting, the angle/radius/length cannot be set manually.

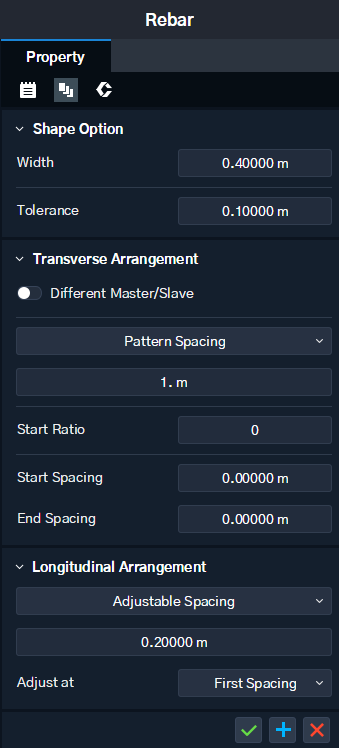

Array Tab
[Shape Option]
Set the shape of the Stirrup.
Width : Enter the width of the Stirrup. By default, a 4-point Stirrup is created, but if the value is 0, a 2-point Stirrup is created.
Tolerance : Enter tolerances for width, transverse spacing, and longitudinal spacing. Based on the values entered by the user and the specified tolerances, the Stirrup will be arranged.
[Transverse Arrangement]
Set the Stirrup's transverse spacing.
Different Master/Slave : Apply Transverse Spacing of Master and Slave Rebar Group separately.
Arrangement : Set the array method and enter the spacing.
Start Ratio : Set the starting position of the Stirrup's transverse array.
Start/End Spacing : Enter the distance from the start and end points. Start spacing is the distance from the position determined by the start ratio.
Pattern Spacing : Arrange according to the entered spacing. Do not arrange for any remaining values less than the entered spacing.
User Defined : Arrange the rebars using user-defined spacing.
Ex) 3@200, 400, 5@150
Ex) 0 : Only 1 column is arranged.
[Longitudinal Arrangement]
Set the Stirrup's longitudinal spacing.
Arrangement : Set the array method and enter the spacing.
Pattern Spacing : Arrange according to the entered spacing. Do not arrange for any remaining values less than the entered spacing.
User Defined : Arrange the rebars using user-defined spacing.
Ex) 3@200, 400, 5@150
Ex) 0 : Only 1 column is arranged.

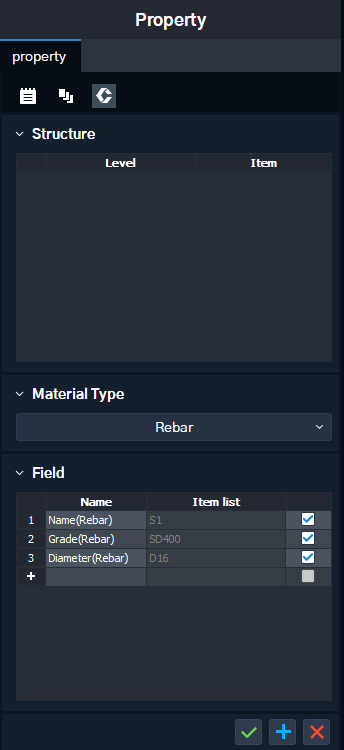

Construction Tab
Note
Construction Properties
