1. Description
This component operates the Stradding Lane of Moving Load Cases Eurocode function in Civil NX.
Use the entered vehicle load classes and the traffic lanes to create moving load cases. Define type of vehicle, number of lanes, and the method to be used in moving load analysis.
The Stradding Lane of Moving Load Cases Eurocode function can be found in the Civil NX main menu,select
[Load] tab > [Moving Load(Type)] group > [Moving Load Code] Menu > [Moving Load Cases] Menu
2. Grasshopper Path
[Midas] > [Moving Load] > [Stradding Lane of Moving Load Cases Eurocode ]

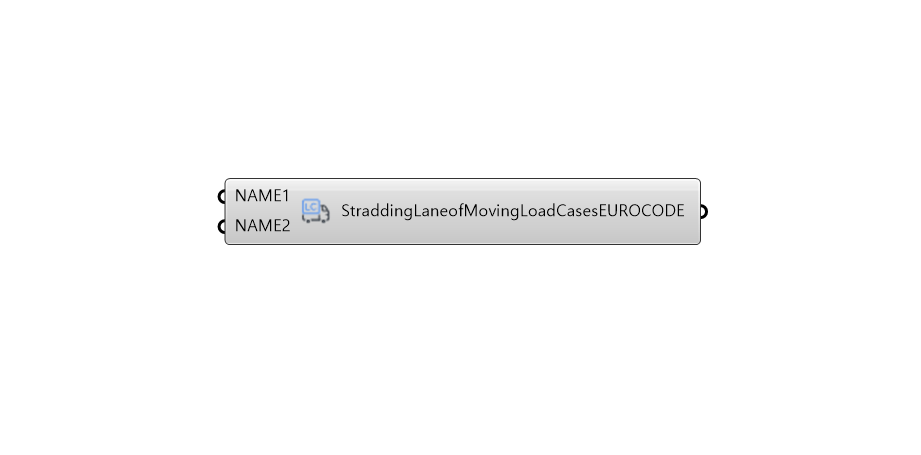

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | NAME1 | Name of Vehicle Class (Load Model 1) | String | - | - |
| 2 | NAME2 | Name of Vehicle Class (Load Model 3 UK NA) | String | - | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | - | Create Stradding Lane of Moving Load Cases Eurocode | Object | - | Moving Load Cases Eurocode |
5. Reference API Manual Link
