Summary
- Set the material for concrete / steel / rebar.
ย
ย
How to Run
- Ribbon Menu > [Base] Tab > [Property] Group > Material
ย
ย
Explanation

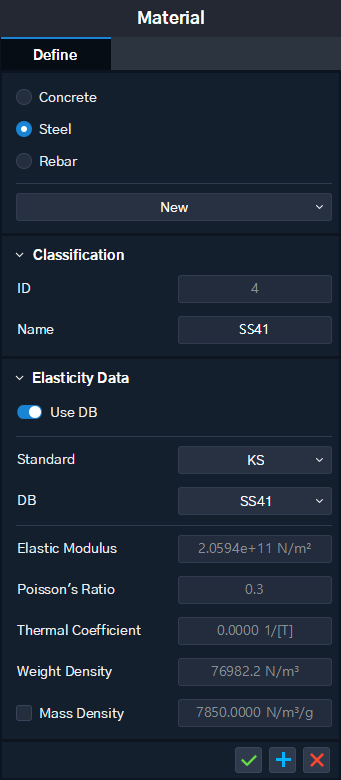

Material Setting Method
Set the material for concrete / steel / rebar.
[Select Material]
For each mateiral type, select an existing material or select a new material.
ย
[Classification]
The material ID and name are displayed.
ย
[Elasticity Data]
This feature sets the physical properties of the material. If the โUse DBโ option is turned off, user-defined properties can be entered.
Standard : Selected the criteria to use.
DB : Selects the DB for the selected criteria.
Elastic Modulus : Indicates the elastic modulus.
Poissonโs Ratio : Indicates the poissonโs ratio.
Thermal Coefficient : Indicates the thermal coefficient.
Weight Density : : Indicates the weight density.
Mass Density : Indicates the mass density.
