1. Description
This component operates the Moving Load Cases LRFD Standard function in Civil NX.
Use the entered vehicle load classes and the traffic lanes to create moving load cases. Define type of vehicle, number of lanes, and the method to be used in moving load analysis.
The Moving Load Cases LRFD Standard function can be found in the Civil NX main menu,select
[Load] tab > [Moving Load(Type)] group > [Moving Load Code] Menu > [Moving Load Cases] Menu
2. Grasshopper Path
[Midas] > [Moving Load] > [Moving Load Cases AASHTO LRFD]

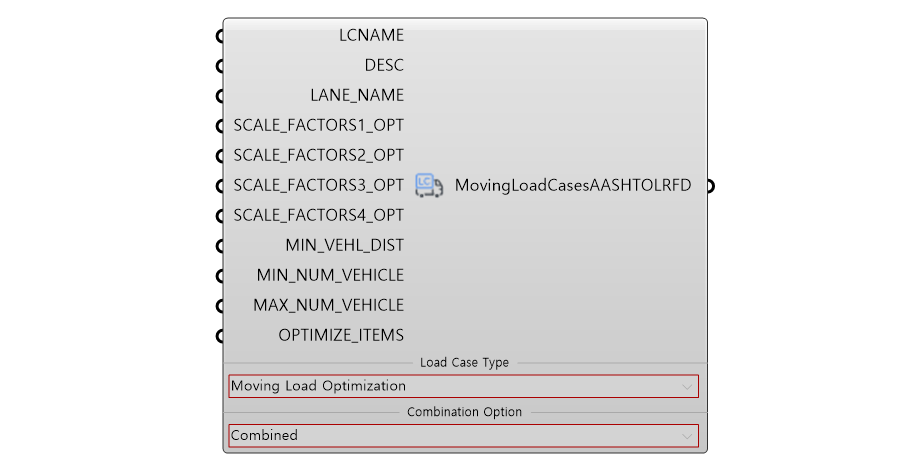

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | LCNAME | Load Case Name | String | - | - |
| 2 | DESC | Description | String | - | - |
| 3 | LANE _NAME |
Loaded Lane | String | - | - |
| 4 | SCALE_FACTORS 1~4_OPT |
Scale Factor | Real | - | - |
| 5 | MIN_VEHL_DIST | Min. Vehicle Distance | Integer | - | - |
| 6 | MIN_NUM_VEHICLE | Min. Number of Vehicle | Integer | - | - |
| 7 | MAX_NUM_VEHICLE | Max. Number of Vehicle | Integer | - | - |
| 8 | OPTIMIZE_LIST | Sub-Load Cases | Object | - | Optimize Item of Moving Load Cases |
| 9 | Combination Option | Loading Effect | Select | Combined | - |
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MVLD | Create Moving Load Cases AASHTO LRFD-Optimization | Json | PUT/DELETE | - |
5. Reference API Manual Link
