Summary
- Assign a defined construction division property to a member.
- The construction division property can be assigned to multiple members, and each member can have one construction division property.
How to Run
[Assembly Unit Mode]
- Ribbon Menu > [Model] Tab > [Construction] Group > Division > Assign
Explanation

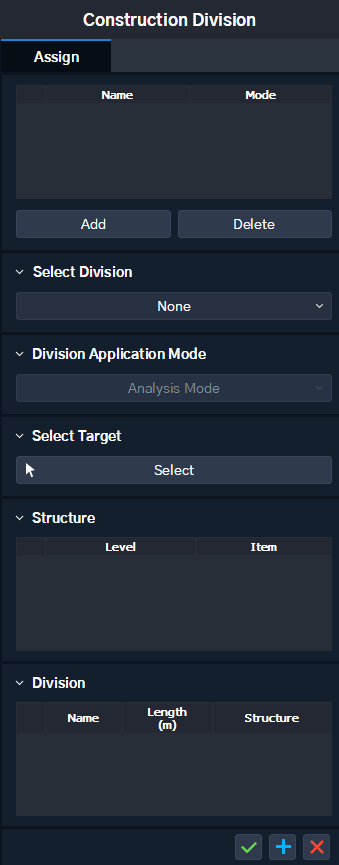

Assign Division
Assign construction division properties to the member and set the application mode.
[Tab] Assign
[Division Assign Table]
Register the construction division property. Registered construction division properties are applied in the Application Mode.
Add : Register the selected construction division property.
Delete : Deletes the construction division property selected in the Division Assign Table.
[Select Division]
Select the construction division property to register.
[Division Application Mode]
Select the mode to apply the construction division property.
[Select Target]
Select the member to assign the construction division property. Multiple members can be selected.
[Structure]
Shows the classification structure of the selected construction division property to the user. This cannot be set.
[Division]
Shows the segment information of the selected construction division property to the user. This cannot be set.
