Summary
- Enter the classification information (Name etc.) of the User section.
How to Run
[User Section Mode]
- Ribbon Menu > [User Section] Tab > [Shape] Setting > Setting
Explanation

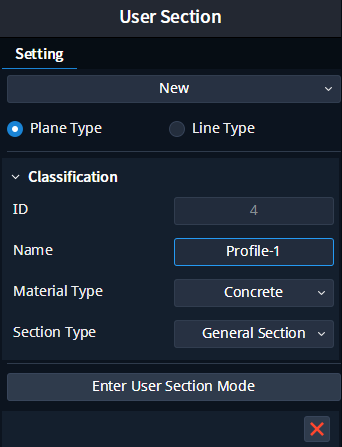

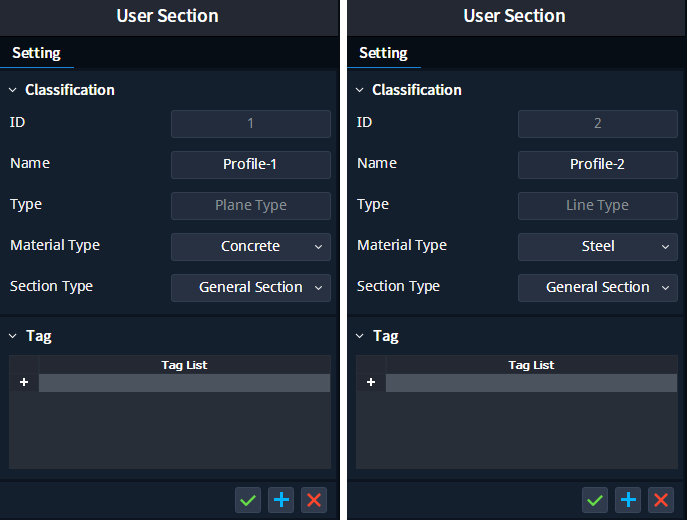

[Classification]
Enter the classification information of the User section.
ID : Unique number of the user section
Name : Name of the user section
Material Type : Material of the user section
Section Type
Sets the properties of the section to use for analysis.
General Section : Set to General Section to use the section as a general section for analysis.
PSC-Value : Set to PSC-Value to use the cross-section as a PSC cross-section for analysis. (When PSC-Value is selected, the values for T1, T2, BT, HT must also be entered.)
