Summary
- Create a User Section of the section from a selected object cut into a specific plane.
How to Run
[All Mode]
- Ribbon Menu > [Base] Tab > [Property] Group > User Section > Extract
Explanation
Extract User Section
Creates a User Section of the section from the selected object cut into a specific plane.
Note

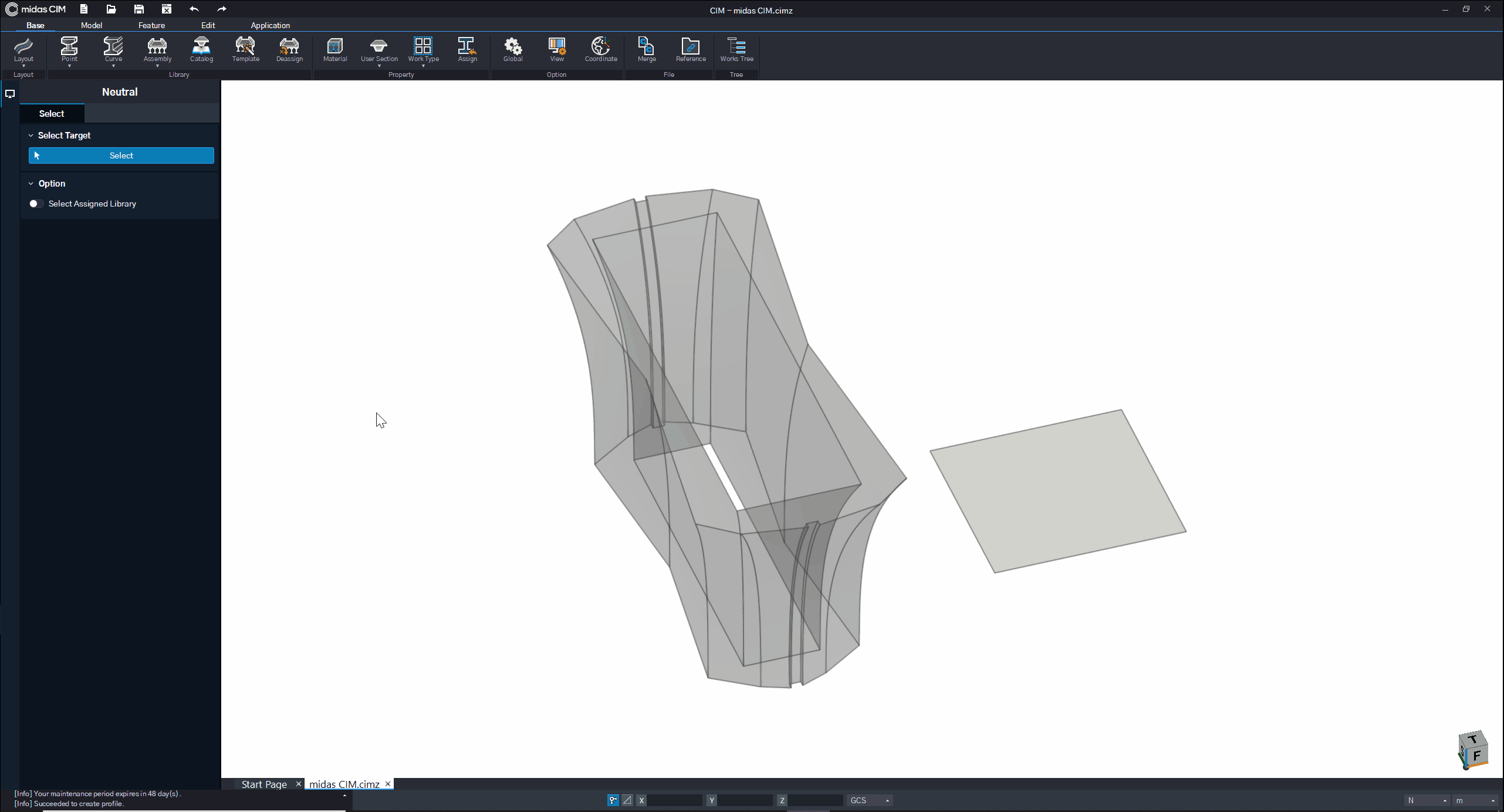

As shown in the example on the left, the Feature > Surface feature can be used an auxiliary tool to select a section.
[Classification]
Enter the classification information of the User section.
ID : Unique number of the user section
Name : Name of the user section
Material Type : Material of the user section
[Select Target]
Select the object to extract the section from.
[Define Plane]
Define the plane to use when cutting the selected object.
Note
Reference - Define Plane
[Origin Point]
Enter the point on the User Section Mode plane to place the center of the bounding box from the extracted section.
Check or modify the created User Section
Check or modify the created User Section.
Right click the User Section in the Works Tree and use the modify menu to enter the User Section mode to view or modify the User Section.
