Summary
- Removes overlapping regions between 1D, 2D, 3D Members and other Members.
How to Run
[Base Mode]
- Ribbon Menu > [Model] Tab > [Property] Group > Cutting
[Point Library Mode]
- Ribbon Menu > [Model] Tab > [Property] Group > Cutting
[Curve Library Mode]
- Ribbon Menu > [Model] Tab > [Property] Group > Cutting
[Assembly Unit Mode]
- Ribbon Menu > [Model] Tab > [Property] Group > Cutting
Explanation

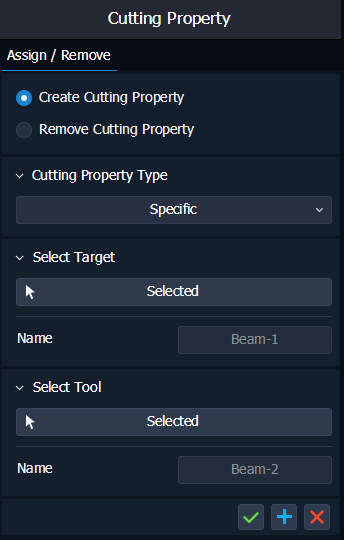

Specific Type
Target/Tool members are specified and cutting properties are applied between them.
[Tab] Assign / Remove
[Cutting Property Function Type]
Select the Cutting Property function type.
Create Cutting Property
Assigns Cutting Property to the object.
Remove Cutting Property
Removes the assigned Cutting Property from the object.
[Cutting Property Type]
Select the type of Cutting Property.
Specific : Target/Tool members are specified and cutting properties are applied between them.
General : Apply Cutting Property between unspecified members designated as Target and unspecified members designated as Tool.
Specific
It can be set only within the same mode, and the result is valid even after assignment.
One Target member can store more than one Tool member information.
General
The settings are also valid for members from different libraries.
The members store Target/Tool information.
[Select Target]
Selects the target object from which to remove any overlapping region. Only one can be selected.
Name : The name of the selected part is output.
[Select Tool]
Selects tool object to use in the process of removing the overlapping region. Only one can be selected.
Name : The name of the selected part is output.

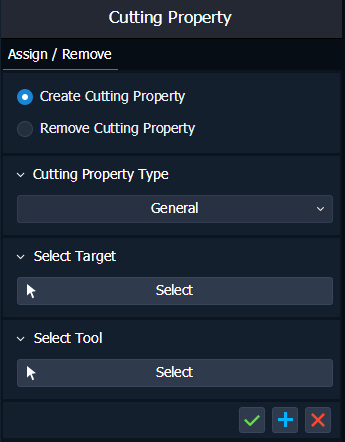

General Type
Apply Cutting Property between unspecified members designated as Target and unspecified members designated as Tool.
[Tab] Assign / Remove
[Cutting Property Function Type]
Select the Cutting Property function type.
Create Cutting Property
Assigns Cutting Property to the object.
Remove Cutting Property
Removes the assigned Cutting Property from the object.
[Cutting Property Type]
Select the type of Cutting Property.
Specific : Target/Tool members are specified and cutting properties are applied between them.
General : Apply Cutting Property between unspecified members designated as Target and unspecified members designated as Tool.
Specific
It can be set only within the same mode, and the result is valid even after assignment.
One Target member can store more than one Tool member information.
General
The settings are also valid for members from different libraries.
The members store Target/Tool information.
[Select Target]
Selects the target object from which to remove any overlapping region. You can select more than one.
[Select Tool]
Selects tool object to use in the process of removing the overlapping region. You can select more than one.

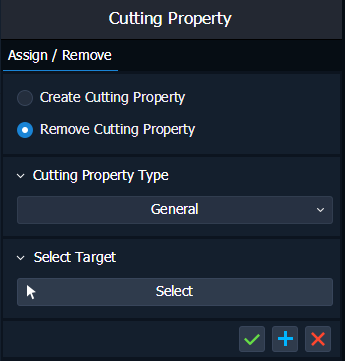

Remove Cutting Property
[Tab] Assign / Remove
[Cutting Property Function Type]
Select the Cutting Property function type.
Create Cutting Property
Assigns Cutting Property to the object.
Remove Cutting Property
Removes the assigned Cutting Property from the object.
[Cutting Property Type]
Select the type of Cutting Property.
Specific : Target/Tool members of Specific Type can be selected.
General : Target/Tool members of General Type can be selected.
[Select Target]
Select the member to remove the Cutting Property. You can select more than one.
