Move Edge

Summary

• Move the position of a line to transform the object shape.

How to Run

• Ribbon Menu > [Edit] Tab > [Edit Shape] Group > Modify > Move Edge

Explanation

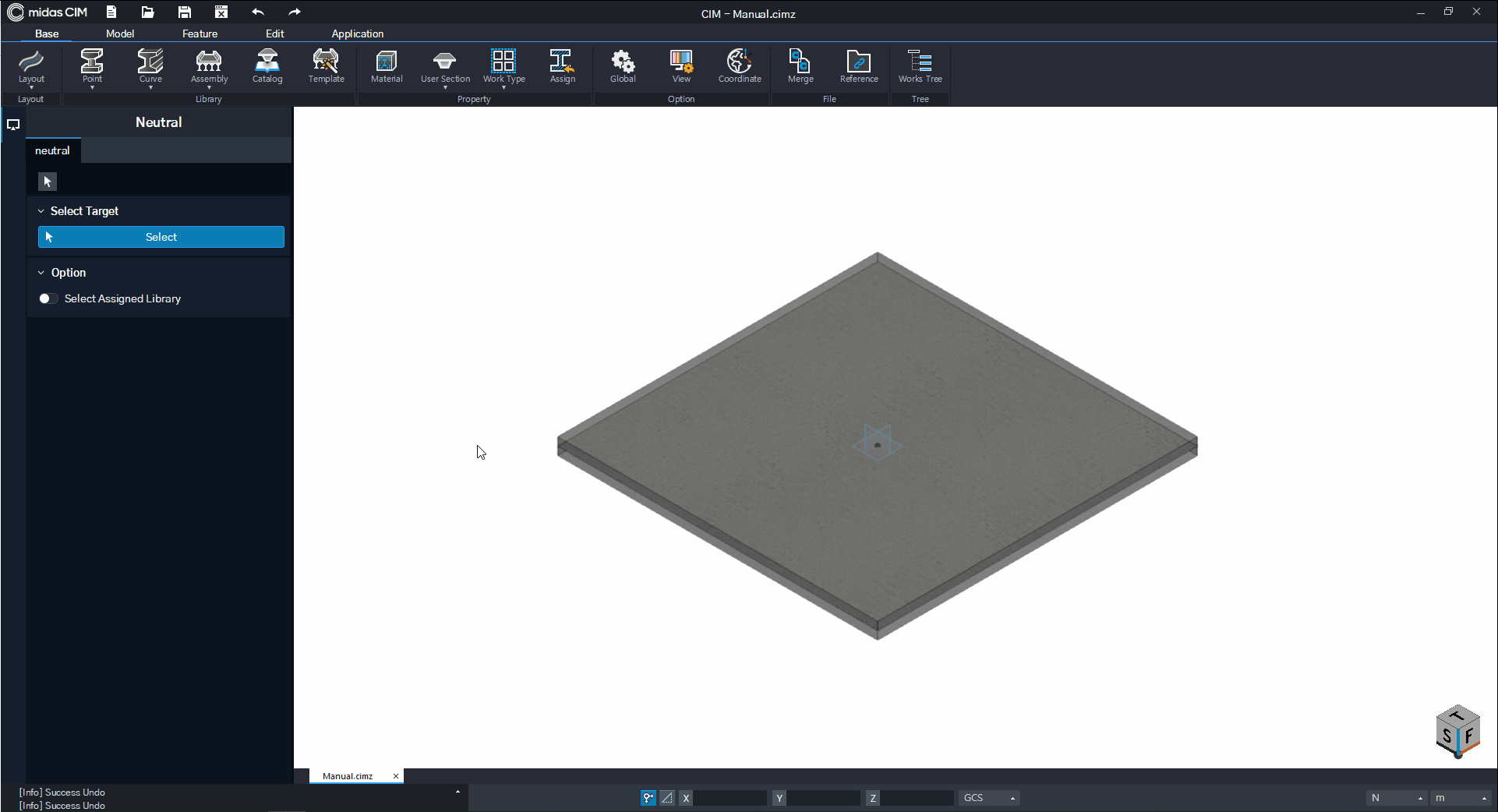

Modify(Move Edge) Feature

This feature moves the position of a line to change the shape of an object.

[Select Vertex]

Select the edge to move the position.

[Generate]

Click the Line(2 Points) button to set the direction and distance on the screen.

Reference Materials

Precautions when using Modify - Move Vertex(Edge)

Definition of Points, Lines, and Face Elements
