Summary
- Move the position of a point to change the shape of an object.
How to Run
- Ribbon Menu > [Edit] Tab > [Edit Shape] Group > Modify > Move Vertex
Explanation

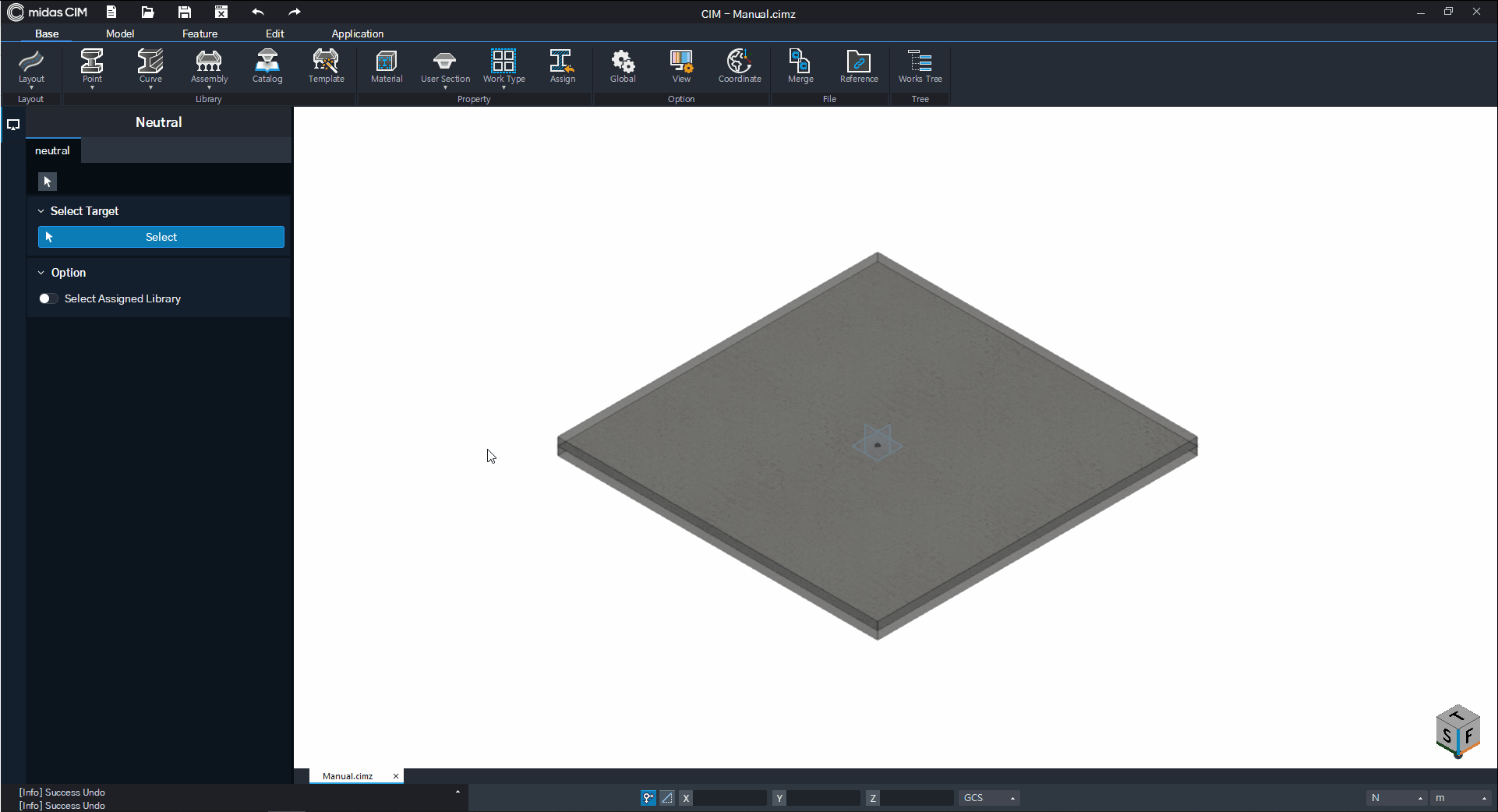

Modify(Move Vertex) Feature
This feature moves the position of a point to change the shape of an object.
[Select Vertex]
Select the vertex to move the position.
[Generate]
Click the Line(2 Points) button to set the direction and distance on the screen.
Detailed Explanation (Option)
Keep bulge factor : Maintain the protrusion ratio according to the object’s shape change.
Reference Materials
Precautions when using Modify - Move Vertex(Edge)
Definition of Points, Lines, and Face Elements
