Summary
- Increase or decrease the size of a 1D, 2D, or 3D Body object around the reference point.
How to Run
- Ribbon Menu > [Edit] Tab > [Edit Shape] Group > Scale
Explanation

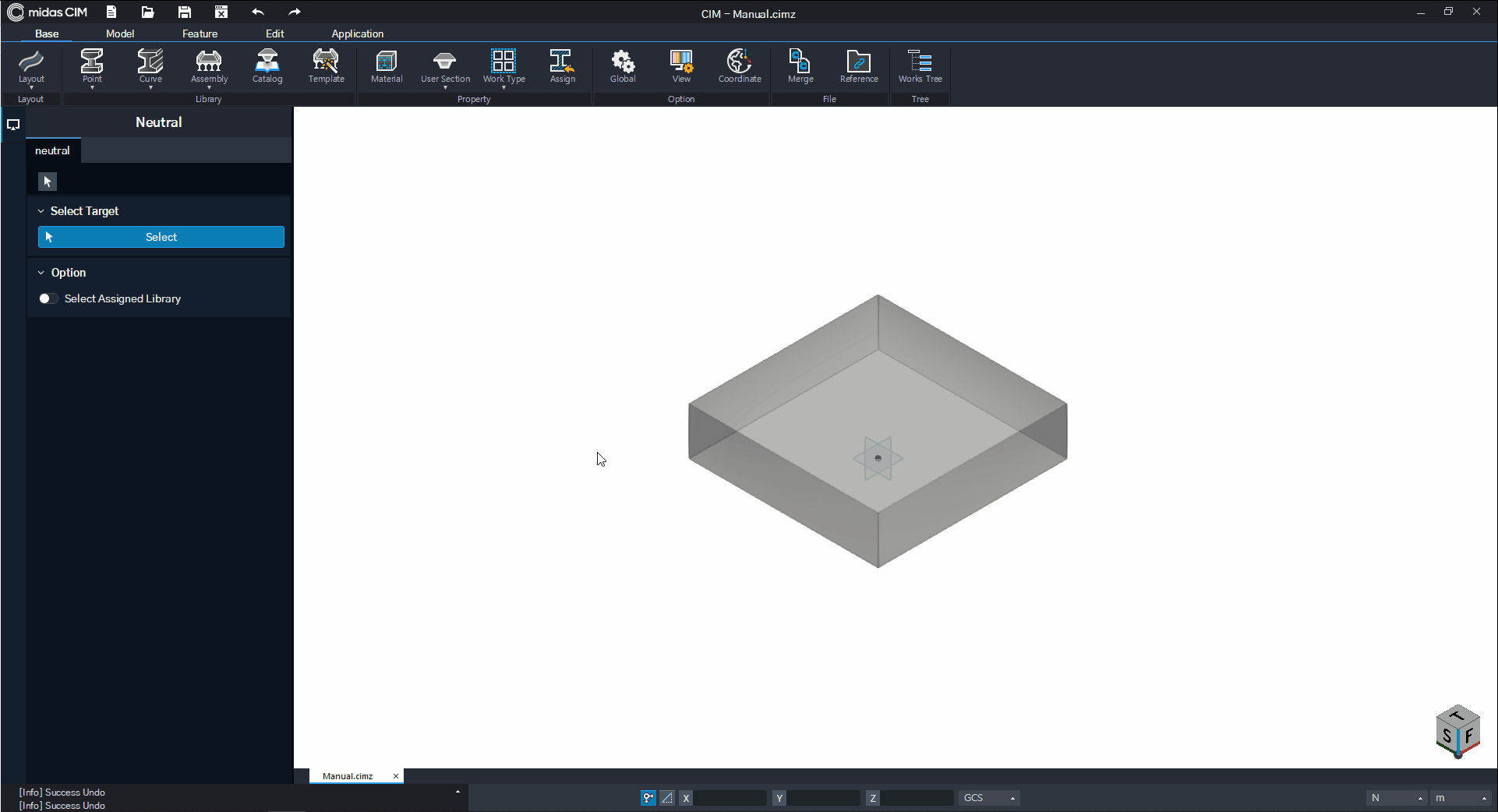

Scale Feature
This feature increases or decreases the size of an object around the reference point.
[Select Target]
Enter the target object to change size.
[Scale Factor]
Enter the scale factor for the target object.
Set the reference point for the size change.
Geometric Center : Sets the reference point at the geometric center.
Bounding Box Center : Sets the reference point at the center of the bounding box that surrounds the selected objects.
User defined : Sets the reference point at a user defined point.
Sets the coordinate system to which the magnification is applied.
GCS : Sets the global coordinate system as the reference coordinate system.
LCS-Bounding Box : Sets the coordinate system with the longest axis of the selected object’s Bounding Box as the x-axis, the shortest axis as the z-axis, and y-axis as the normal direction of the xz plane.
UCS : Sets the reference coordinate system using the user-defined vectors
Note
Reference - User Coordinate System
Uniform Scale : Selects whether to apply the same magnification to each axial direction in the reference coordinate system.

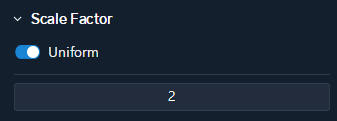

Uniform Scale On (Default)
Applies magnification or reduction equally in each axial direction using single maginifcation value.

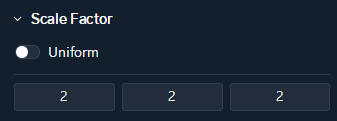

Uniform Scale Off
Applies magnification or reduction using a different magnification value for each axial direction.
Note
Reference - Preview Level
