Summary
- This feature changes the Normal direction of a 2D Geometry.
How to Run
- Ribbon Menu > [Edit] Tab > [Edit Shape] Group > Modify > 2D Normal
Explanation
Modify (2D Normal) Feature
Reverses the orientation of the 2D Geometry.

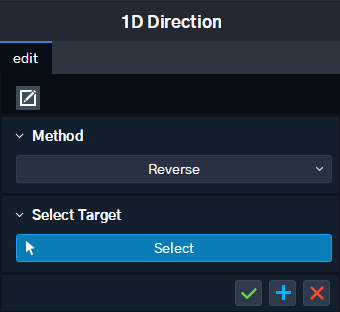

[Select Target]
Select the 2D Geometry. Click Apply to reverse the Normal direction.
Direction change implications for a 2D Geometry

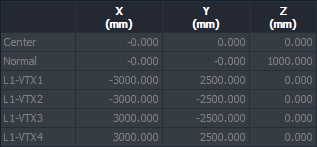

Initial properties window

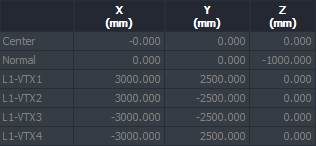

Final properties window
