Summary
- Increase the length of the object so that one face of a 3D body meets another face.
How to Run
- Ribbon Menu > [Edit] Tab > [Edit Shape] Group > Fit Face
Explanation

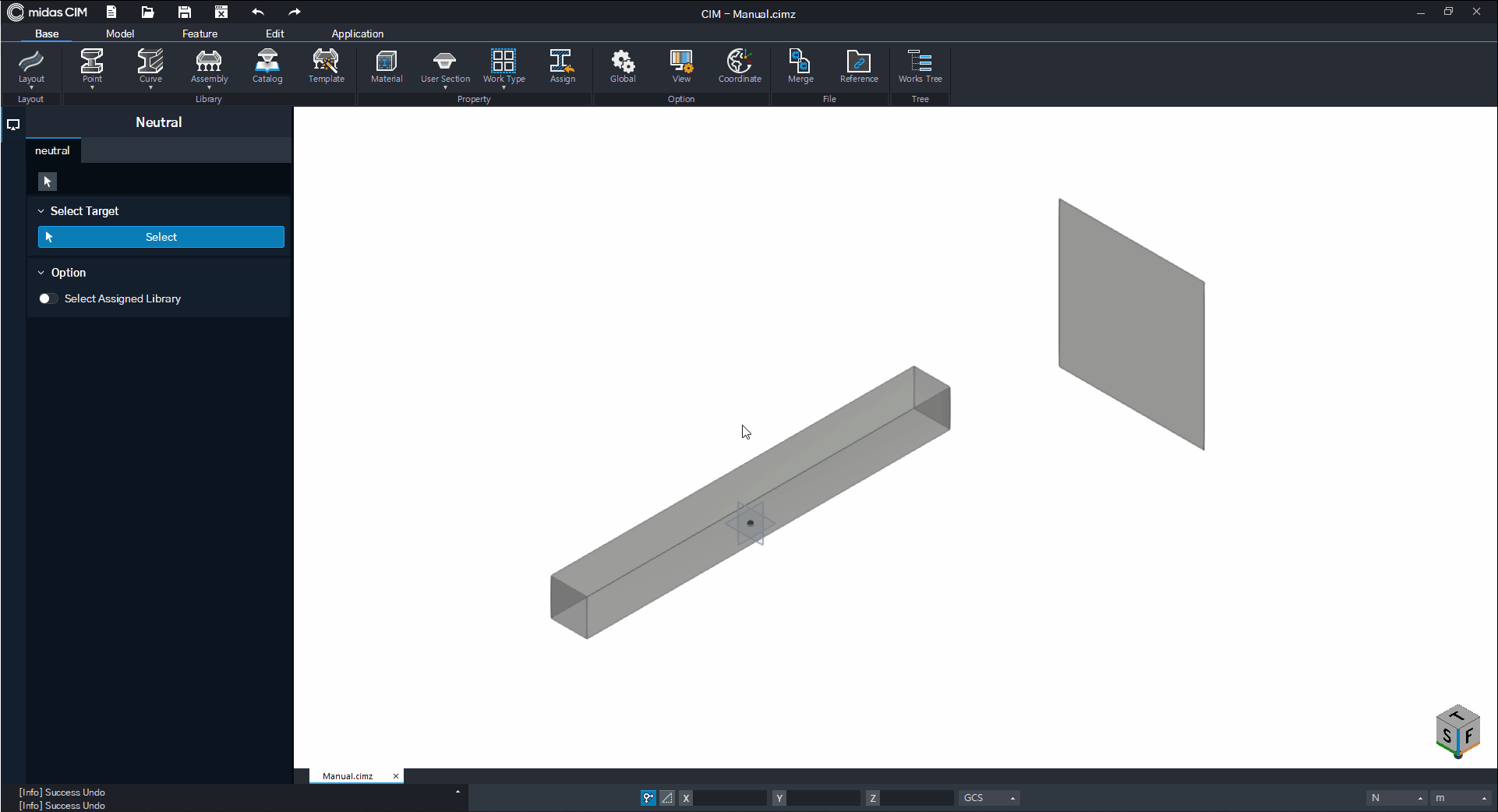

Select Face Method
This method selects the face of an existing object for another target object to extend and come in contact with.
[Select Target]
Select the target face of the 3D Body to extend and com in contact with another face.
[Method]
Select the Select Face Method.
[Select Tool]
Select the Tool object to use when increasing the length of the object.

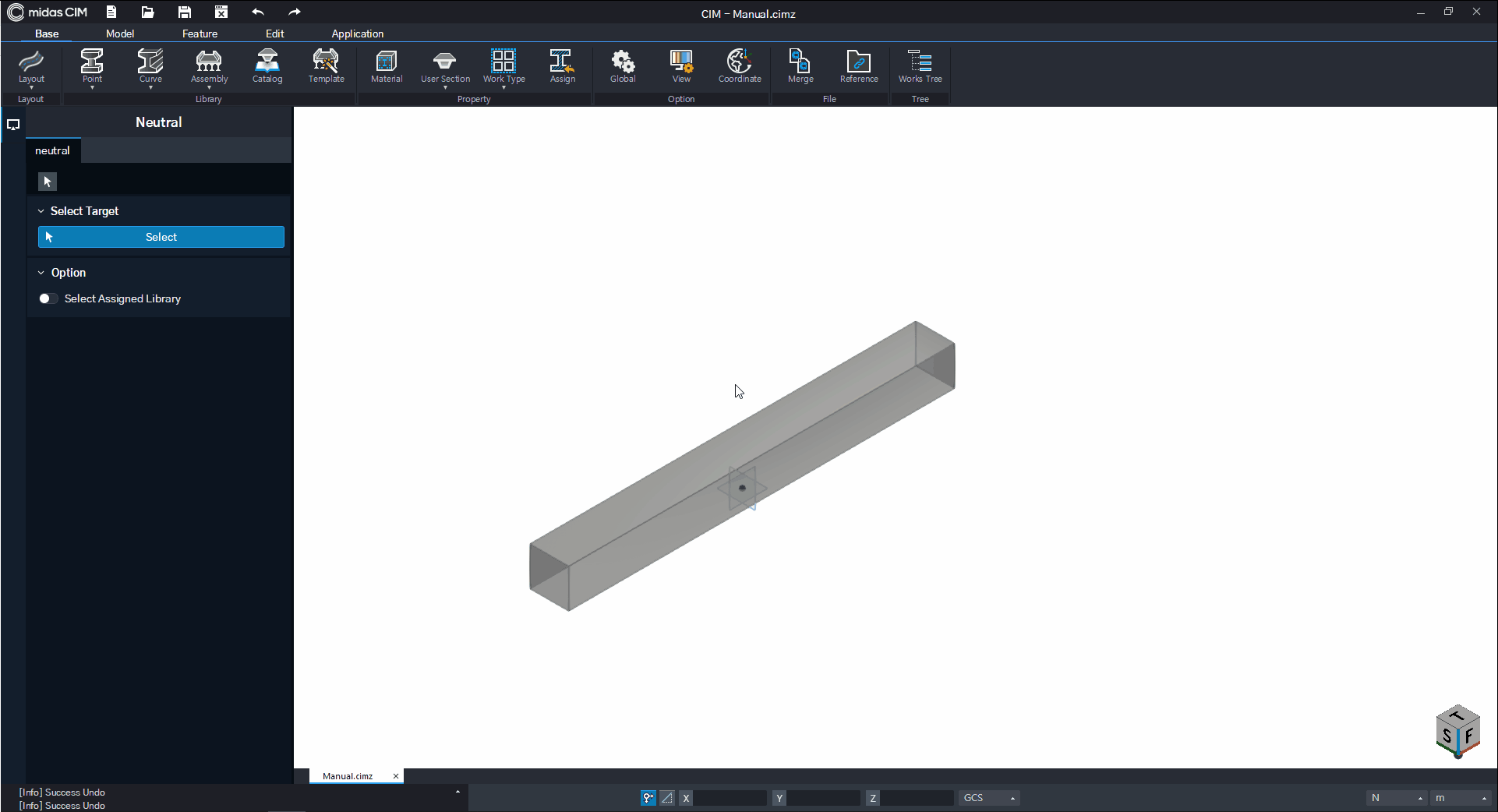

Define Plane Method
This method defines a new plane for another target object to extend and come in contact with.
[Select Target]
Select the target face of the 3D Body to extend and com in contact with another face.
[Method]
Select the Define Plane Method.
[Define Plane]
Define a plane using 3 points to use when extending the length of the object.
Note
Reference - Define Plane
