Summary
- Creates an independent object from the overlapping part of multiple 1D, 2D Member solids or 3D Body solids.
How to Run
- Ribbon Menu > [Edit] Tab > [Edit Shape] Group > Intersection> Solid
Explanation

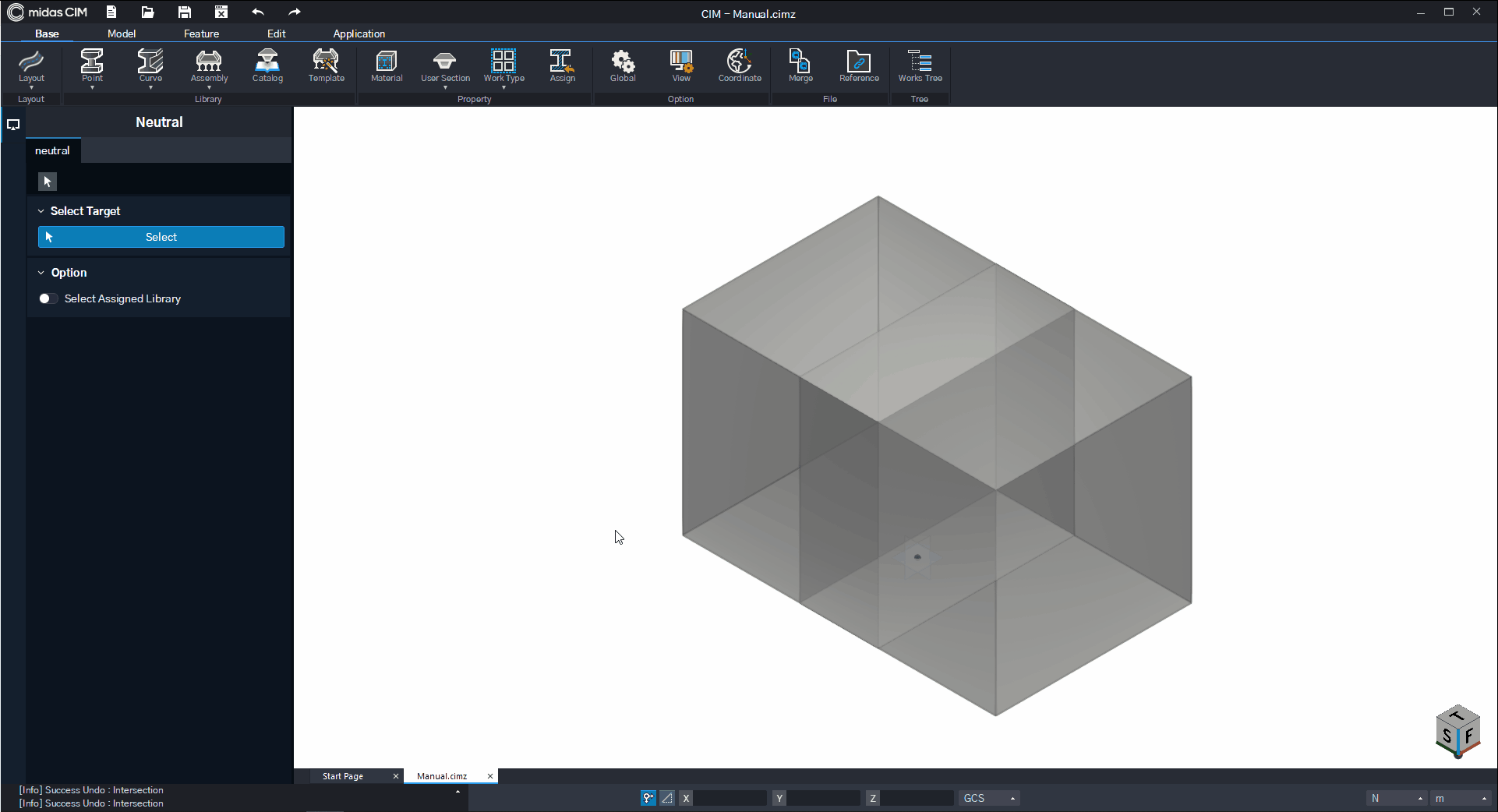

Intersection(Solid) Feature
This feature creates an overlapping area of selected objects as a single independent object.
[Select Target]
After selecting the Master object, select Other objects to check for overlaps with the Master object.
