Summary
- Removes a portion of the surfaces from the 2D Body.
How to Run
- Ribbon Menu > [Edit] Tab > [Edit Shape] Group > Subtract(Surface)
Explanation

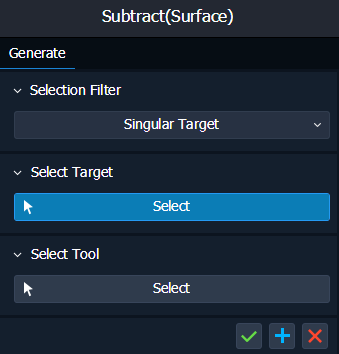

Subtract(Surface) Feature
This feature removes only the overlapping areas of the selected objects from the target object.
[Selection Filter]
Singular Target : Cut a target object into one or more tool objects
Singular Tool : Cut one target object into one or more tool objects.
[Select Target]
Select the target object from which to remove a portion of the Surface.
[Select Tool]
Select the tool object to use in the process of cutting the target object.
