Summary
- Divides the Solid of a 3D Body into two or more shapes.
How to Run
- Ribbon Menu > [Edit] Tab > [Edit Shape] Group > Divide > Solid
Explanation

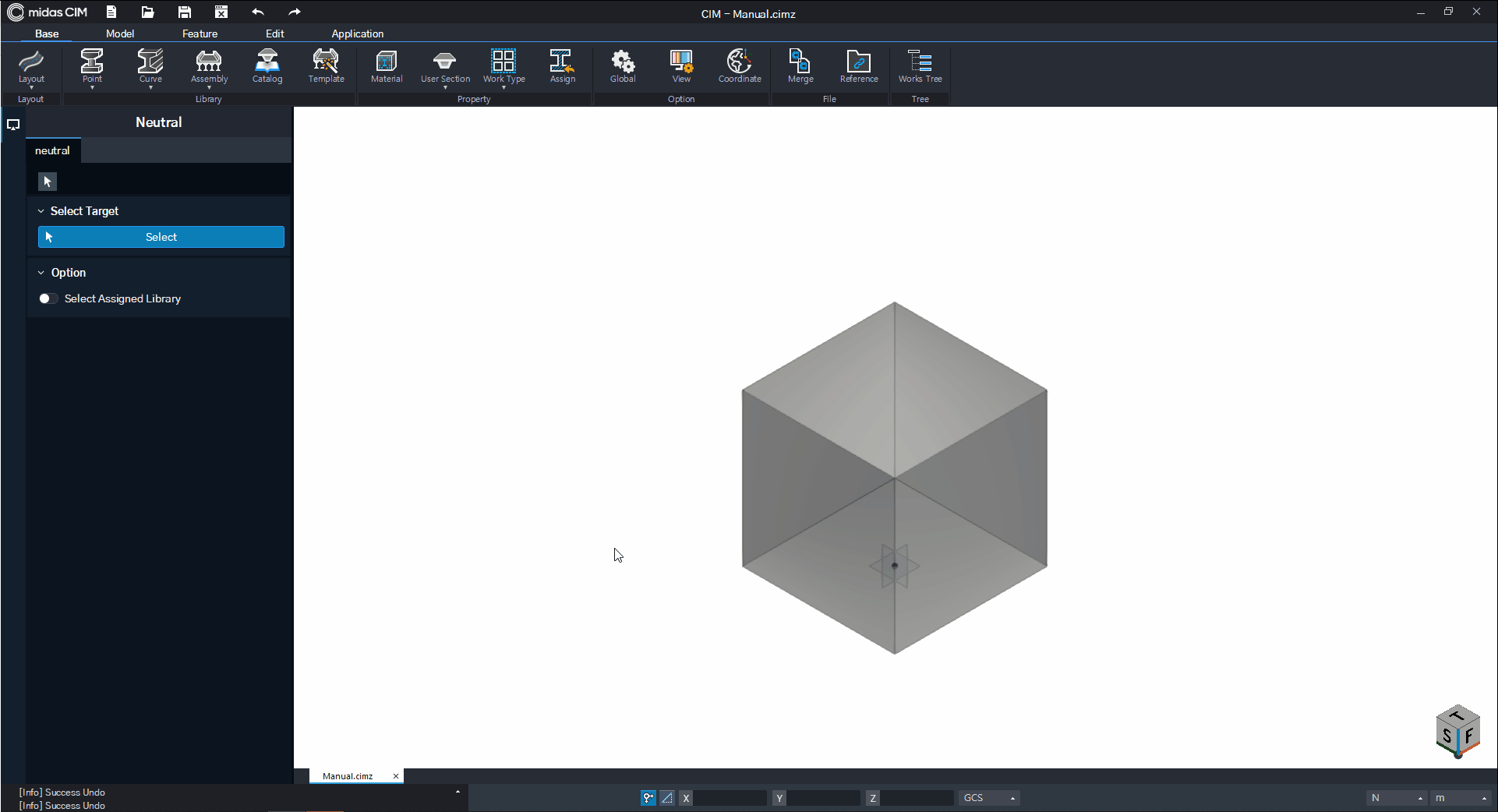

Select Face Method
This method selects the Face of an existing object to determine the division point of the target object.
[Select Target]
Select the target object to divide.
[Method]
Select the Select Face method.
[Select Tool]
Click on the Select button and then select the Tool object to use in the process of dividing the Target object.
Infinite Tool : When the Target object is divided, it is assumed that the Tool object is an infinitely extended Face.

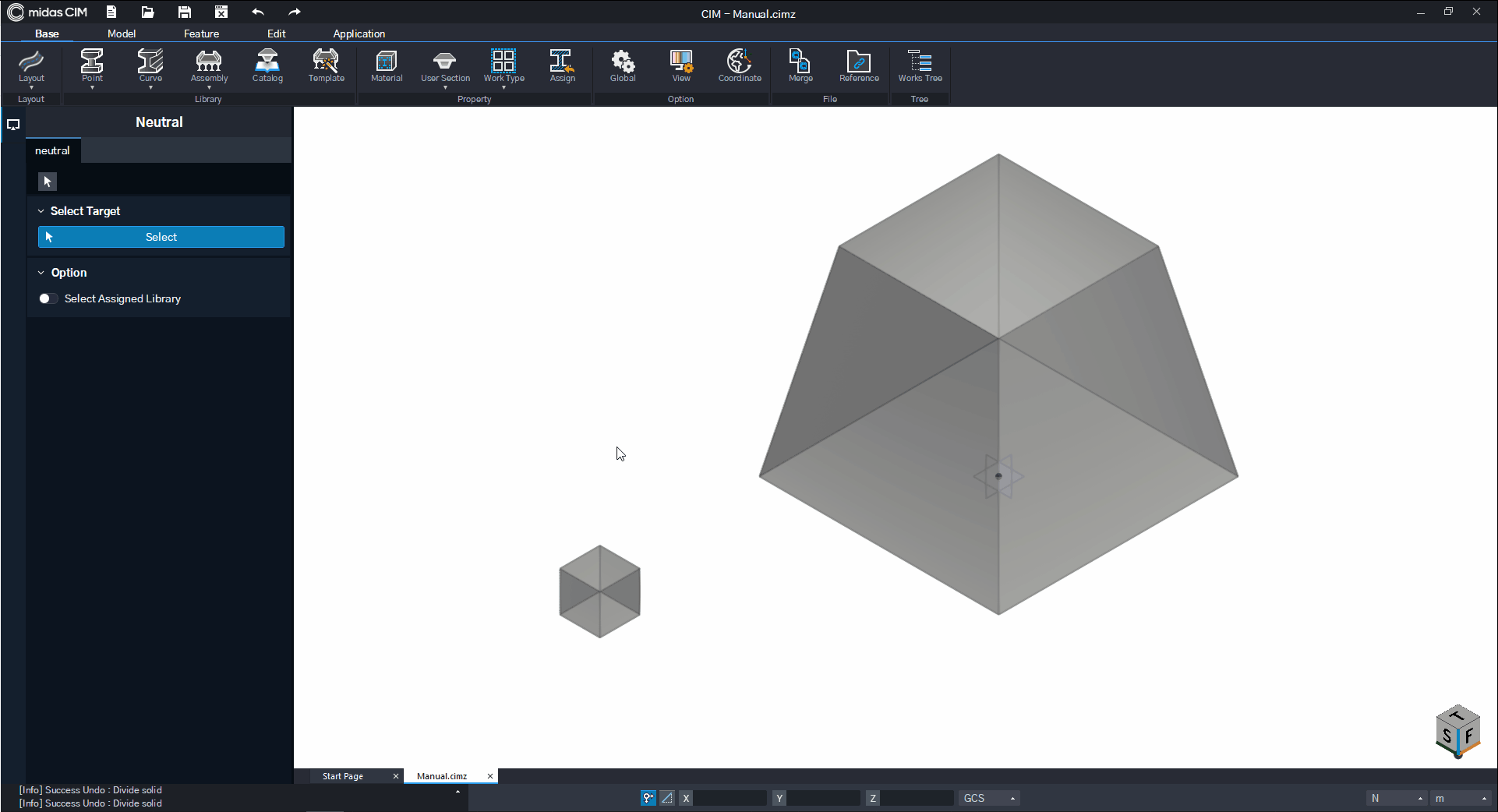

Select Sheet Body Method
This method selects an existing 2D Sheet Body to determine the division point of the target object.
[Select Target]
Select the target object to divide.
[Method]
Select the Sheet Body method.
[Select Tool]
Click on the Select button and then select the Tool object to use in the process of dividing the Target object.

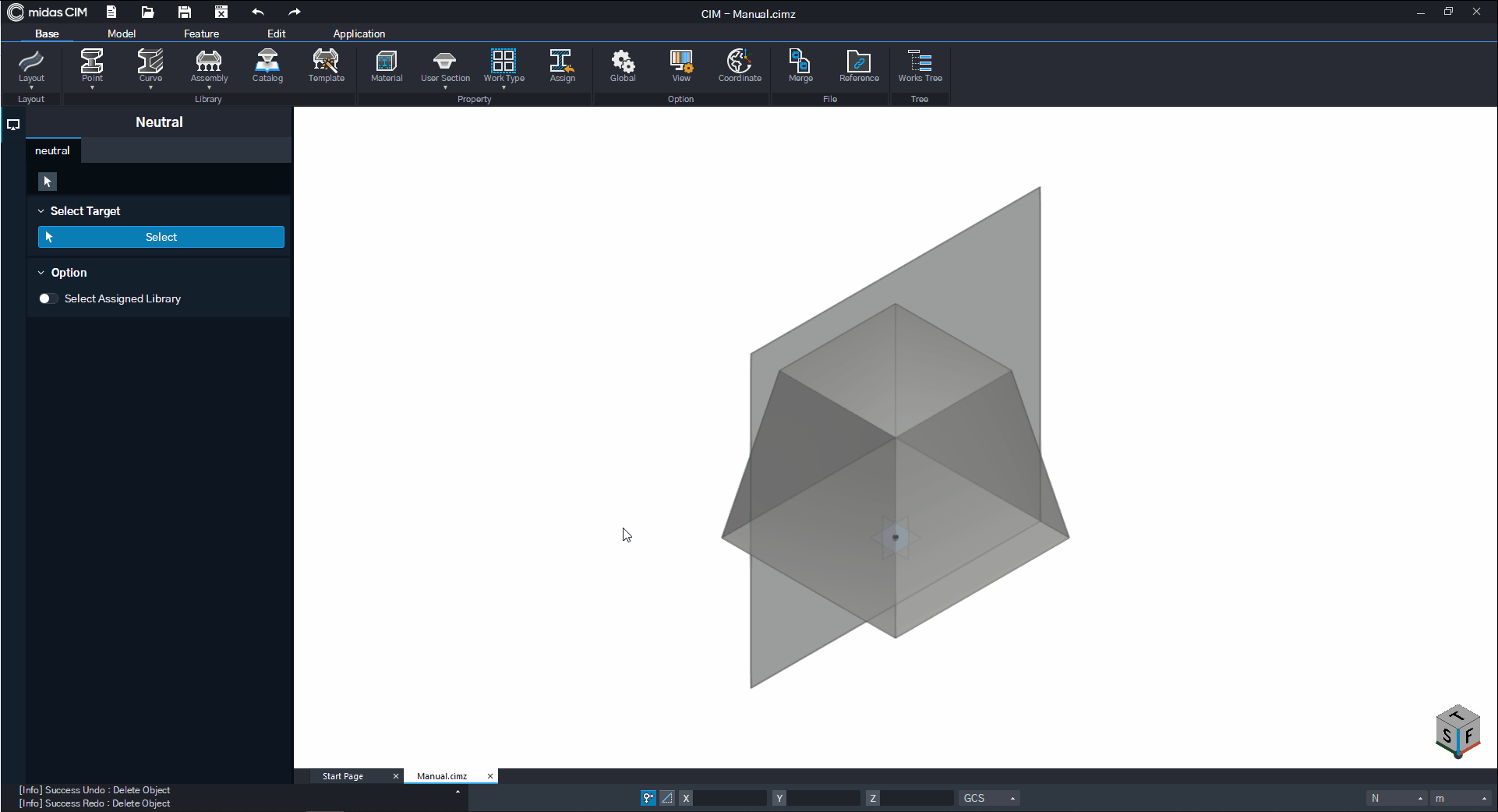

Select Plane Method
This method defines a new plane to determine the division point of the target object.
[Select Target]
Select the target object to divide.
[Method]
Select the Select Plane method.
[Define Plane]
Select Plane(3 Points) to define the plane to use in the process of dividing the Target object.
Note
Define Plane Manual
