Summary
- Merge consecutively placed multiple 1D members or 1D Wire Bodies into a single object.
How to Run
- Ribbon Menu > [Edit] Tab > [Edit Edge] Group > Merge
Explanation
Merge Feature

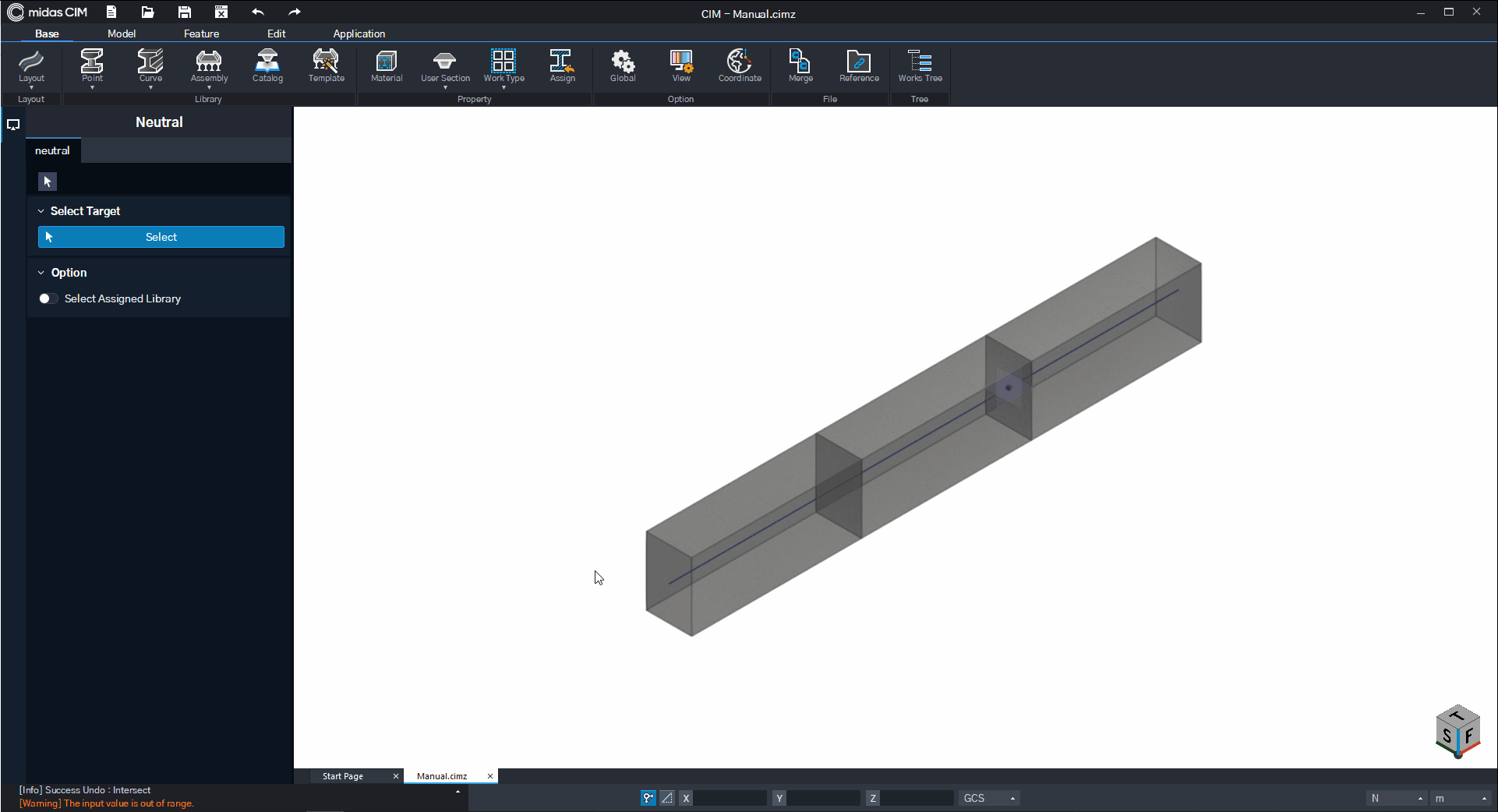

This feature merges consecutively placed 1D members or 1D Wire Bodies into a single object.
[Selection Filter]
Select the type of target object to select. When a 1D Member is selection, the filter is enabled so that only 1D members can be selected.
Note
Reference - Definition of Points, Lines, and Face Elements
[Select Target]
Master Object : Select the object to use as a property reference object for the newly created object that will result after the merge.
Other Object : Select objects to be merged into a Master object.
Reference Materials
Definition of Points, Lines, and Face Elements
