Summary
- Extends the object length so that a point on the 1D Wire/1D Member meets another line or surface.
How to Run
- Ribbon Menu > [Edit] Tab > [Edit Edge] Group > Extend
Explanation

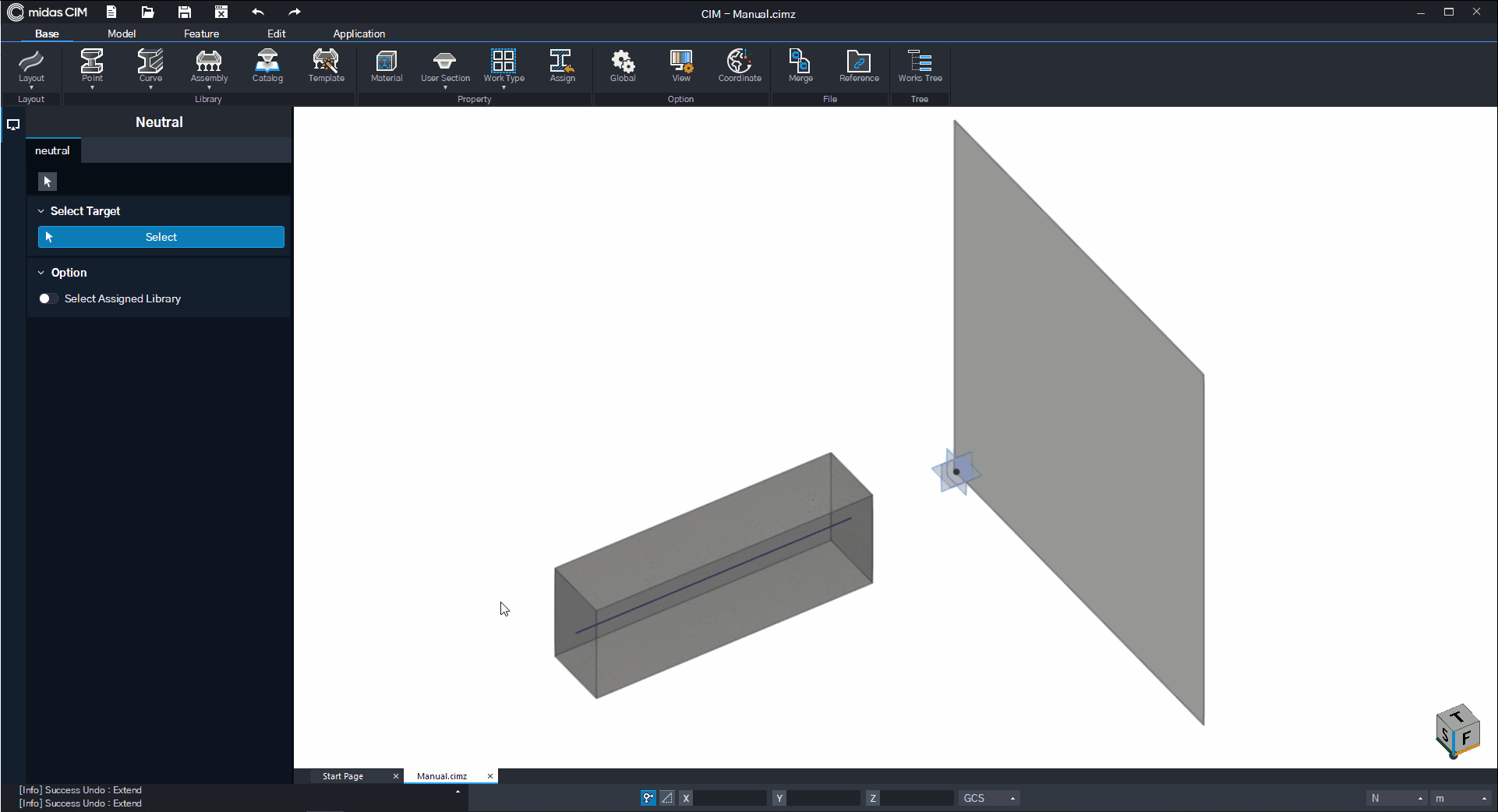

By Tool Method
This method extends an object to a length with reference of a tool.
[Method]
By Tool : Extends the target object to the tool object by selecting the tool object.
By Length : Extends the target object by entering the extention length.
By Length Method
This method of determining the length of an object by entering the length to extend.
[Selection Filter]
Selects the type of tool object to select. If Edge is selected, the filter only allows Edges to be selected.
Note
Reference - Definition of Points, Lines, and Face Elements
[Pick Target]
Selects the target object to extend.
Reference Materials
Definition of Points, Lines, and Face Elements
