Summary
- Splits 1D Wire and 1D Member objects into multiple objects.
How to Run
- Ribbon Menu > [Edit] Tab > [Edit Edge] Group > Split
Explanation

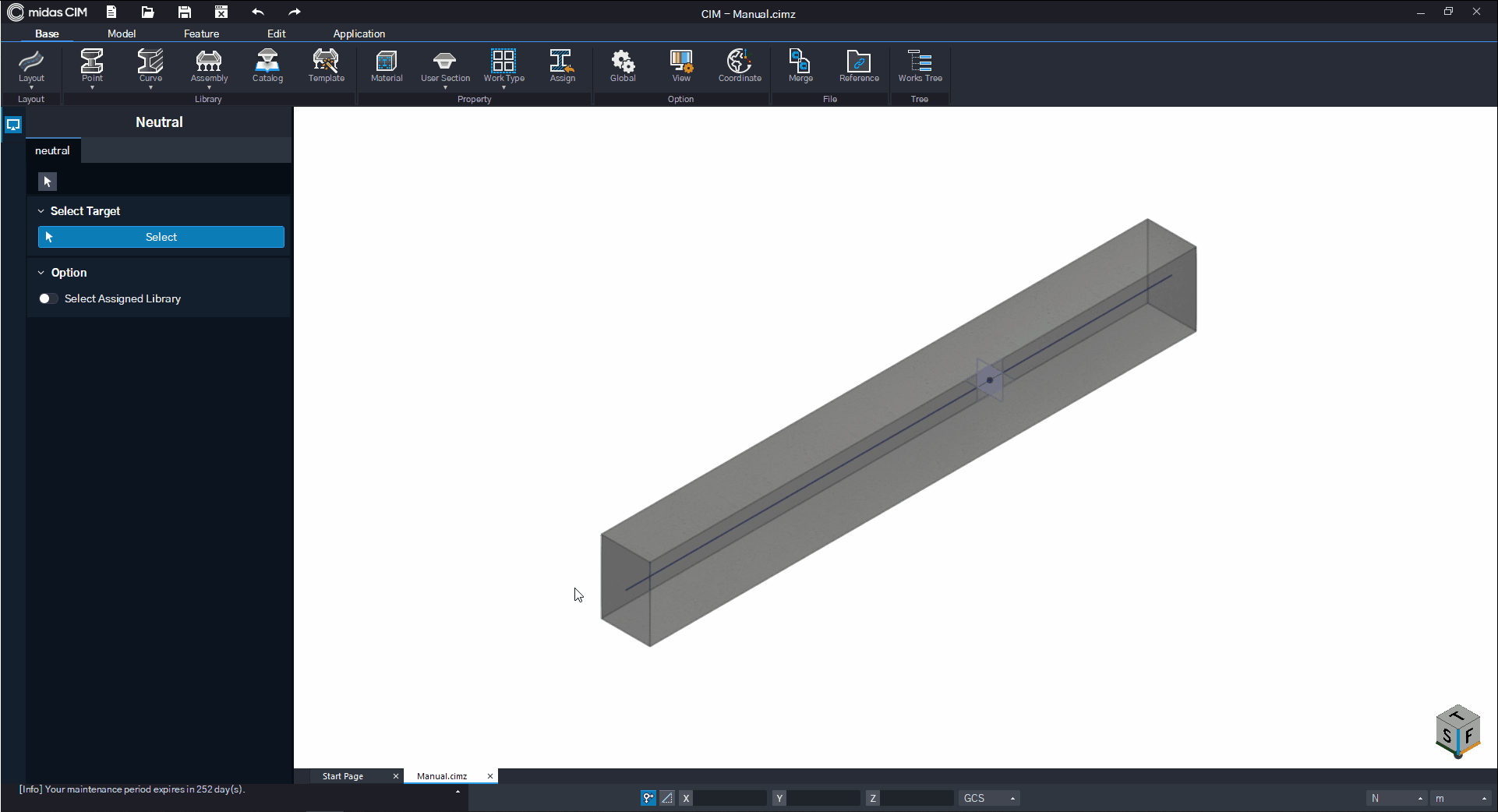

Distance Method
This method detemines the split locations by entering the distance.
[Select Target]
Select the target object to split.
[Distance]
Sets the split location by entering the distance from the starting point of the member.

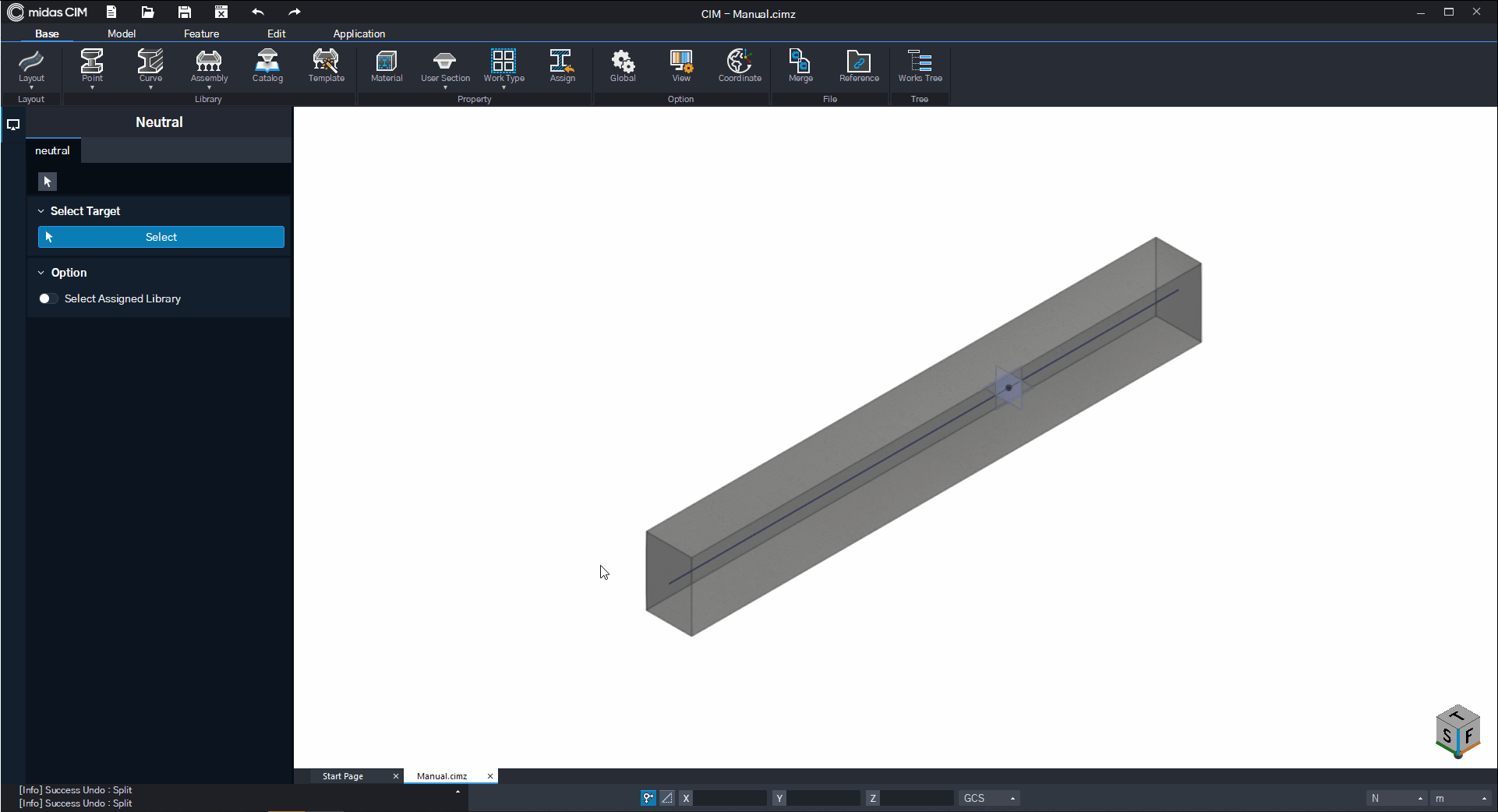

Ratio Method
This method detemines the split locations by entering a ratio for the whole length.
[Select Target]
Select the target object to split.
[Ratio]
Sets the split location by entering a ratio for the whole length.
Number of Divisions Method
This method determines the split locations by entering the number of objects to create from the split.
[Select Target]
Select the target object to split.
[Number of Divisions]
Sets multiple split locations by entering the number of split intervals.
Sub Shape(Face/Edge) Method
This method determines the split location by selecting an existing Face or Edge object.
[Select Target]
Select the target object to split.
[Select Tool]
Sets the intersection face as the intersection reference by selecting a face or an edge (Sub Shape).
Note
Reference - Definition of Points, Lines, and Face Elements
[Option]

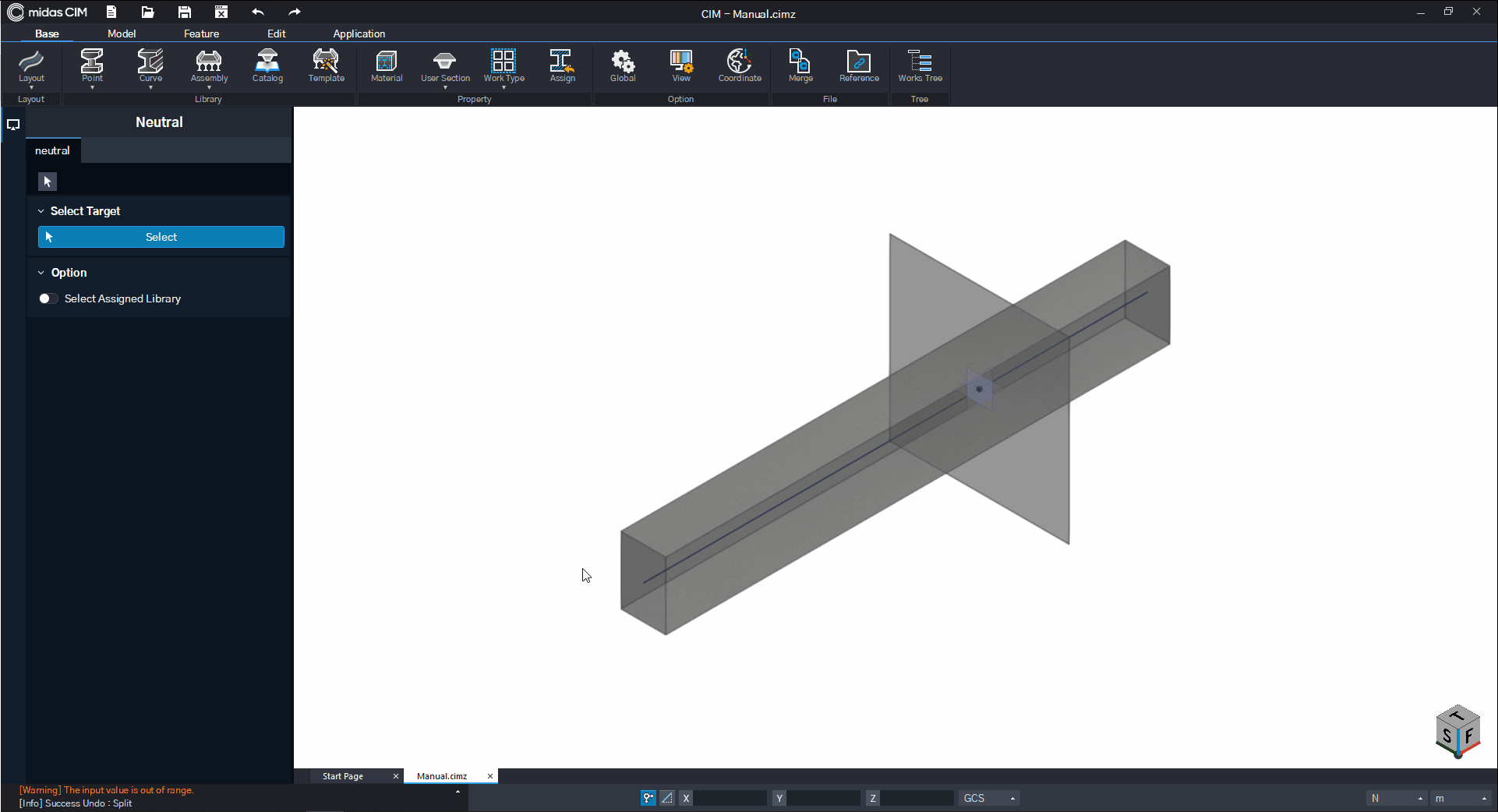

Infinite Tool : This tool assumes the tool object to be an object that is infinitely extended. The example on the left assumes the selected face to be an infinite plane.
Body(Sheet/Wire) Method
This method determines the split location by selecting an existing Body object.
[Select Target]
Select the target object to split.
[Select Tool]

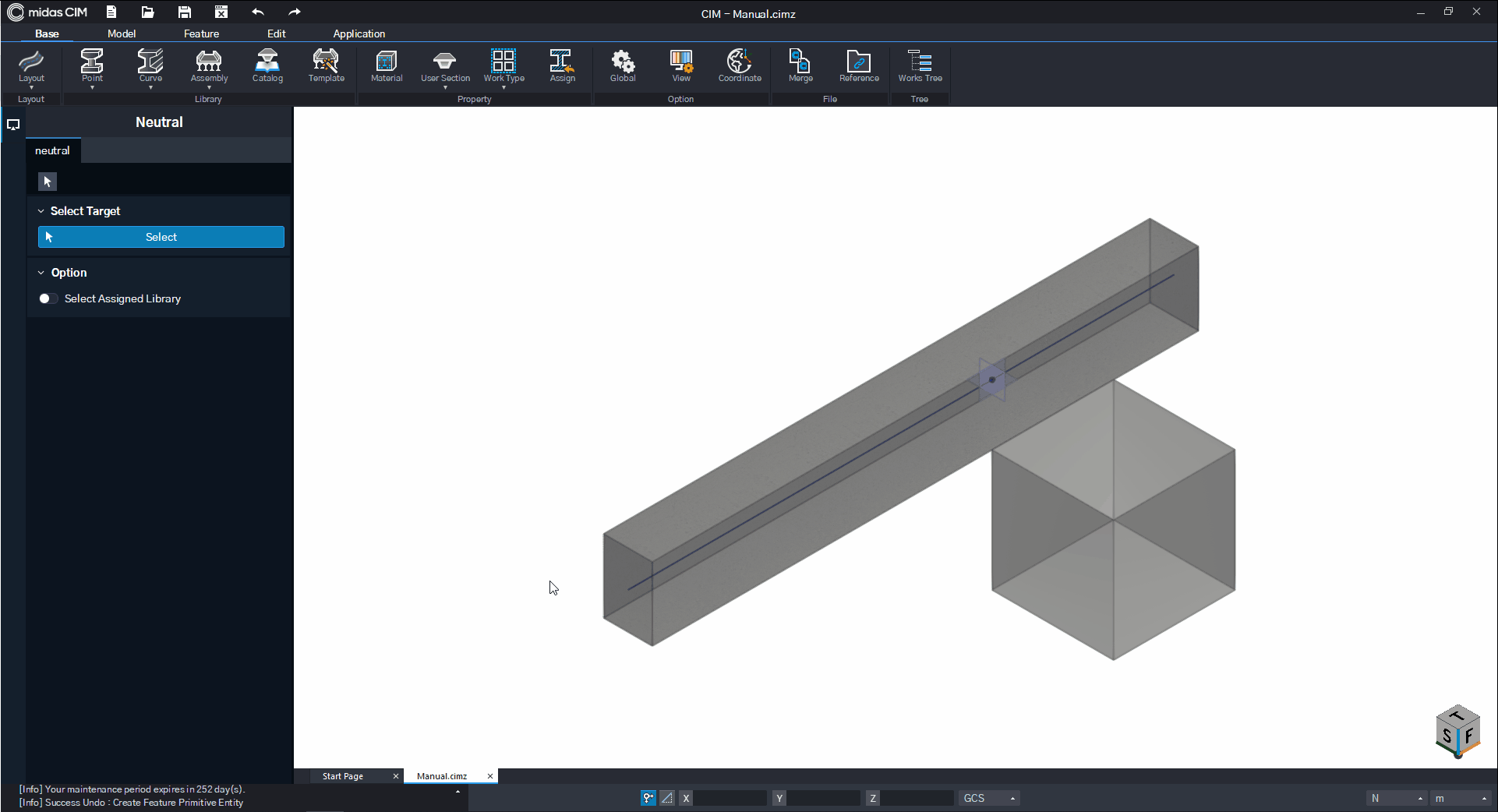

Sets the split location by selecting the Body object that intersects with the target object to split.
Note
Reference - Definition of Points, Lines, and Face Elements
By Draw Method
This method determines the split locations by defining a new line.
[Select Target]
Select the target object to split.
[Select Tool]
Sets the split location by using the Sketch tool.
Note
Reference - Sketch
Reference Materials
Definition of Points, Lines, and Face Elements
