Summary
- This feature translates an object along a certain distance.
How to Run
- Ribbon Menu > [Edit] Tab > [Translate] Group > Move
Explanation

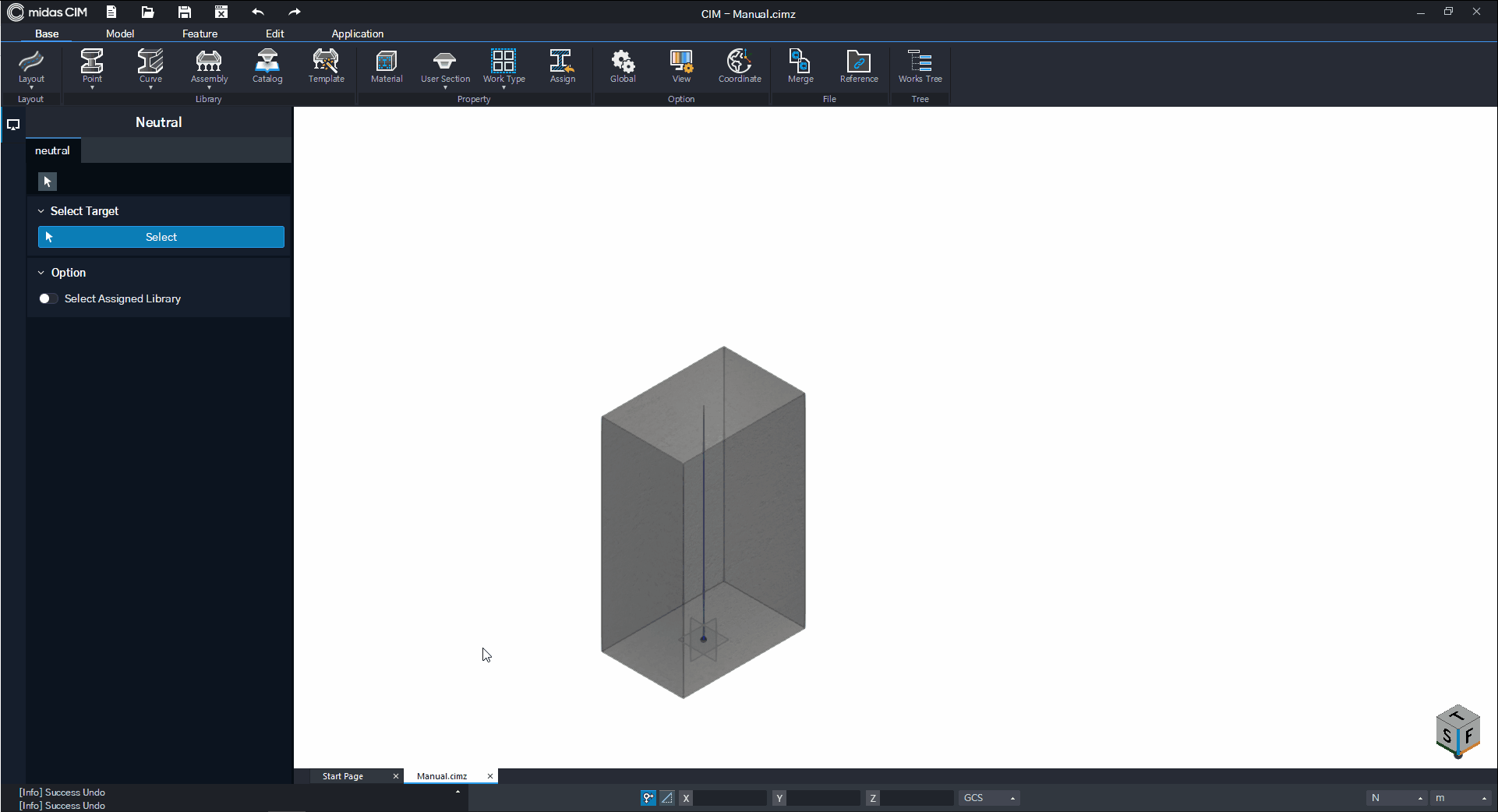

2 Points Method
This method moves an object from one location to other in a straight line by entering the direction and distance.
[Select Target]
Select the target object to translate.
[Method]
2 Points : Translates the object along a straight line by entering the direction and distance.
Direction & Distance : Translates the object by setting the direction and distance.
[Generate]
After clicking the Line (2 Points) button, set the direction and direction on the screen.
[Preview Level]
Sets the style of the Preview that shows where it will be placed.
Note
Reference - Preview Level
Direction & Distance Method
This method moves the object by setting the direction vector and entering the distance.
[Select Target]
Select the target object to translate.
[Method]
2 Points : Translates the object along a straight line by entering the direction and distance.
Direction & Distance : Translates the object by setting the direction vector and distance.
[Direction Vector]
Set the direction by entering the Direction Vector.
[Distance]
Enter the translation distance.
[Preview Level]
Sets the style of the Preview that shows at the translation location.
Note
Reference - Preview Level
