1. Description
This component operates the Lane Support - Negative Moments at Interior Piers function in Civil NX.
Assign the elements constituting a multiple span being considered for moving load analysis using traffic lane loads.
The Lane Support - Negative Moments at Interior Piers function can be found in the Civil NX main menu,select [Load] tab > [Moving Load(Type)] group > [Moving Load Code] Menu > [Lane Support] Menu > [Lane Supprt-Nega.Moment]
2. Grasshopper Path
[Midas] > [Moving Load] > [Lane Support - Negative Moments at Interior Piers]
Type 1 : User Input

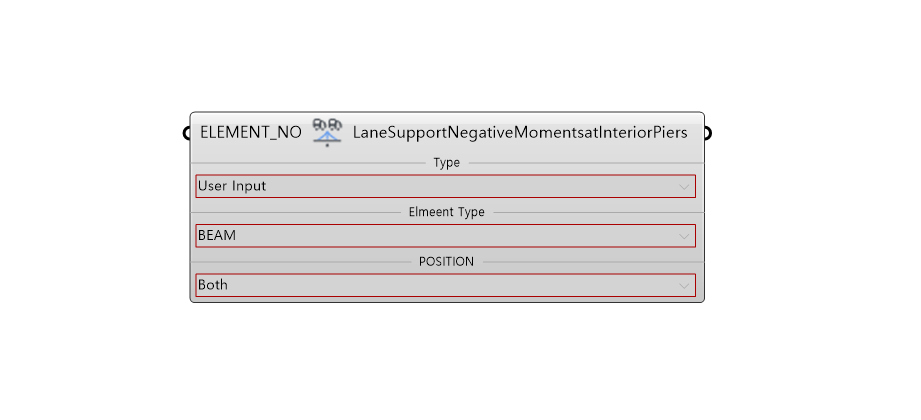

3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | ELEMENT_NO | Element ID | Integer | - | - |
| 2 | Element Type | Element Type | Select | BEAM | - |
| 3 | POSITION * | Support Position | Select | Both | - |
Activation Condition
* Only for if Element Type is Beam
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MLSP | Create Lane Support - Negative Moments at Interior Piers (User Input Type) |
Json | PUT/DELETE | - |
Type 2 : Auto Input
3. Component Image
4. Input/Output Value
- Input Data
| Index | Name | Description | Type | Default |
Previous |
|---|---|---|---|---|---|
| 1 | GROUP_NAME | Structure Group Name | String | - | - |
Activation Condition
* Only for if Element Type is Beam
- Output Data
| Index | Command | Description | Type | Method |
Next |
|---|---|---|---|---|---|
| 1 | MLSP | Create Lane Support - Negative Moments at Interior Piers (Auto Input Type) |
Json | PUT/DELETE | - |
5. Reference API Manual Link
Lane Support - Negative Moments at Interior Piers
