1. Description

This component operates the Assign Pressure Loads function in Civil NX.
Apply pressure loads to the faces or edges of plate, plane stress,plane strain. Modify or delete previously entered loads.

The Assign Pressure Loads function can be found in the Civil NX main menu,select [Load] tab > [Static Loads(Type)] group > [Assign Pressure Loads]

2. Grasshopper Path

[Midas] > [Static Loads] > [Plate Plane Pressure Loads]

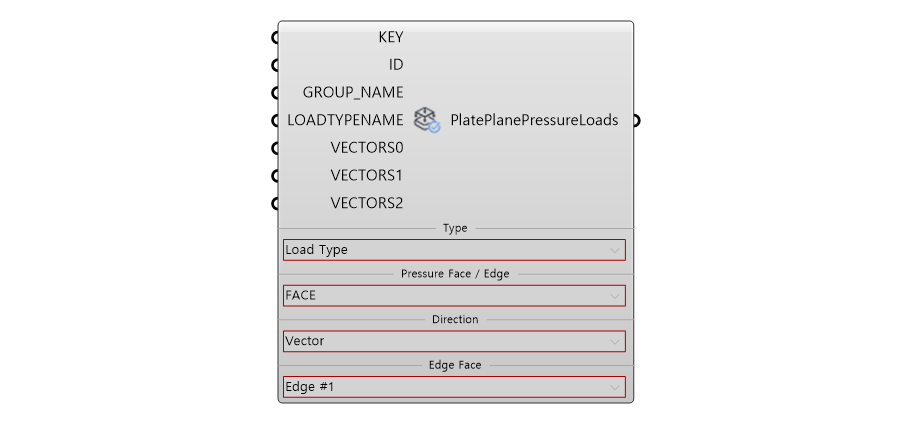

3. Component Image

4. Input/Output Value

Input Data

Index	Name	Description	Type	Default	Previous Component
1	KEY	Element ID	Integer	-	-
2	ID	Serial Number	Integer	-	-
3	GROUP_NAME	Load Group Name	String	-	-
4	LOADTYPENAME	Load Type Name	String	-	-
5	VECTORS 0~2 **	Vector 0 : X-Vector 1 : Y-Vector 2: Z-Vector	Real	-	-
6	Direction	Select Load Direction	Select	Local x	-
7	Uniform Load	Use Uniform type load	Select	true	-
8	Edge Face	Pressure Edge	Select	Edge #1	-
9	Projection Option *	Projection Option	Select	false	-

Activation Condition

* Only for if Direction is Global

** Only for if Direction is Vector

Output Data

Index	Command	Description	Type	Method	Next Component
1	PRES	Assign Prssure Loads	Json	PUT/DELETE	-

5. Reference API Manual Link

Assign Pressure Loads
